• Model NO.：SVBT cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, SGS
• Model：YJV
• Brand：Hongda
• Rated Voltage：0.6,1kv, 600,1000V, 1.1kv
• Transport Package：500m or 1000m Per Drum
• Specification：1.5-300 mm2
• Trademark：Hongda or OEM
• Origin：China
• HS Code：8544492100
• Production Capacity：4000 Km , Year

Conductor:Cu wire cl.1 or cl.2Number of cores:2,5mm²-300mm²  7-37 cores - 1,5mm² - 2,5mm²Armor: steel tapesInsulation: PVCInner sheath:PVC compoundOuther sheath: PVC

Measure unitSVBT 2 х 1,521,5260mSVBT 2 х 2,522,5260mSVBT 2 х 424348mSVBT 2 х 626415mSVBT 2 х 10210538mSVBT 2 х 16216710mSVBT 2 х 252251038mSVBT 2 х 352351315mSVBT 2 х 502501706mSVBT 3 х 1,531,5252mSVBT 3 х 2,532,5297mSVBT 3 х 434410mSVBT 3 х 636490mSVBT 3 х 10310660mSVBT 3 х 16316880mSVBT 3 х 253251326mSVBT 3 х 353351685mSVBT 3 х 503502210mSVBT 3 х 703702754mSVBT 3 х 953953670mSVBT 3 х 12031204452mSVBT 3 х 15031505368mSVBT 3 х 18531856635mSVBT 3 х 24032408501mSVBT 3 х 2,5 + 1,532,5 + 1,5295mSVBT 3 х 4 + 2,534 + 2,5450mSVBT 3 х 6 + 436 + 4545mSVBT 3 х 10 + 6310 + 6736mSVBT 3 х 16 + 10316 + 10996mSVBT 3 х 25 + 16325 + 161514mSVBT 3 х 35 + 16335 + 161890mSVBT 3 х 50 + 25350 + 252499mSVBT 3 х 70 + 35370 + 353212mSVBT 3 х 95 + 50395 + 504180mSVBT 3 х 120 + 703120 + 705260mSVBT 3 х 150 + 703150 + 706220mSVBT 3 х 185 + 953185 + 957786mSVBT 3 х 240 + 1203240 + 1209910mSVBT 4 х 1,541,5286mSVBT 4 х 2,542,5350mSVBT 4 х 444480mSVBT 4 х 646580mSVBT 4 х 10410800mSVBT 4 х 164161080mSVBT 4 х 254251642mSVBT 4 х 354352175mSVBT 4 х 504502767mSVBT 4 х 704703480mSVBT 4 х 954954794mSVBT 4 х 12041205805mSVBT 4 х 15041507195mSVBT 4 х 18541858715mSVBT 4 х 240424011090mSVBT 5 х 1,551,5332mSVBT 5 х 2,552,5412mSVBT 5 х 454567mSVBT 5 х 656706mSVBT 5 х 10510964mSVBT 5 х 165161324mSVBT 5 х 255252050mSVBT 5 х 355352760mSVBT 5 х 505503840mSVBT 5 х 705705130mSVBT 7 х 1,571,5422mSVBT 8 х 1,581,5465mSVBT 10 х 1,5101,5570mSVBT 12 х 1,5121,5612mSVBT 14 х 1,5141,5677mSVBT 16 х 1,5161,5740mSVBT 19 х 1,5191,5818mSVBT 24 х 1,5241,51043mSVBT 27 х 1,5271,51072mSVBT 30 х 1,5301,51183mSVBT 37 х 1,5371,51371mSVBT 7 х 2,572,5509mSVBT 8 х 2,582,5570mSVBT 10 х 2,5102,5719mSVBT 12 х 2,5122,5779mSVBT 14 х 2,5142,5838mSVBT 16 х 2,5162,5942mSVBT 19 х 2,5192,51059mSVBT 24 х 2,5242,51356mSVBT 30 х 2,5302,51552mSVBT 37 х 2,5372,51827m

*Further information about rating factor for certain cable arrangement can be found on supplementary technical information.

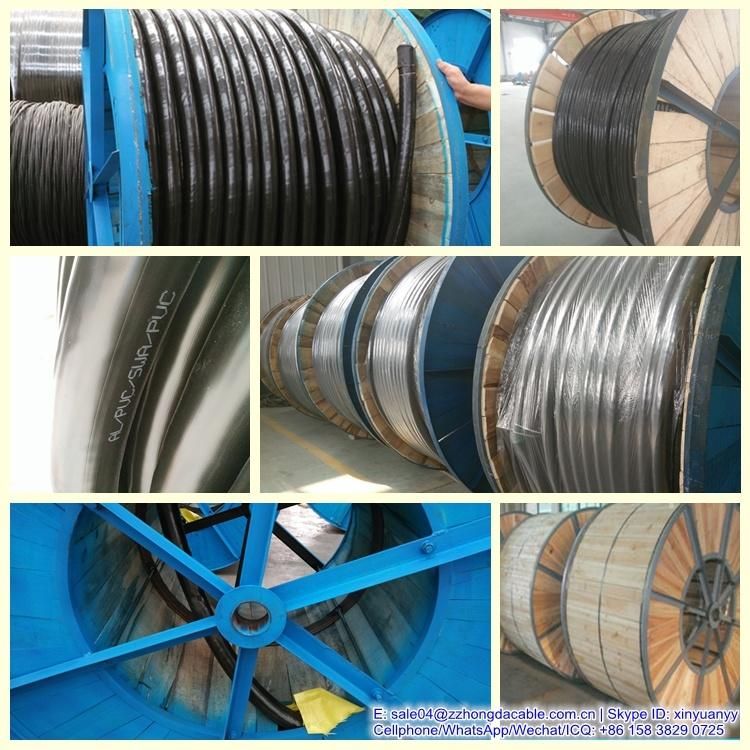

STANDARD PACKING
1.5 - 50 sqmm supplied in wooden drum @ 1000 m
70 - 300 sqmm will be suplied in wooden drum on available length
Length Tolerance per drum ± 2%
