• Model NO.：RG 59+2C
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, UL
• Model：Coaxial Cable
• Brand：Hnali
• Braiding：CCA,CCAM,Tinned Copper
• Foil：Aluminum Mylar
• Power Wire Conductor：Stranded Copper
• Transport Package：Drum or Drum+Carton
• Specification：1,0.8CU+FPE+CCA braiding+AM FOIL+PE+PVC+power wire
• Trademark：HANLI
• Origin：Zhejiang, China

  Impedance53±3 Ohm0Nominal capacitance94pF/mVelocity of propagation66%Insulation resistance>2000 Mohm.KmInner conductor resistance35.0 Ohm/KmOuter conductorresistance16.5Ohm/KmTest/Operatig Voltage(max)5KV/2KVOperating temperaturerange-30°C-+70°CCopper Weight18.7Kg/KmCable weight(approx.)39.9Kg/KmScreening effectiveness                                             100-900MHz                                >55dB

Attenuation       Frequency(MHz)                         Attenuation(dB/100m)                Attenuation(dB/100ft)               509.12.7710013.13.9920019.45.9140028.48.6650032.29.8260035.710.8886044.813.66100049.014.94

Return Loss                     30-300MHz                                                              >26dB                                                                   300-600MHz                                                >25dB                                                        600-900MHz                                                   >24dB

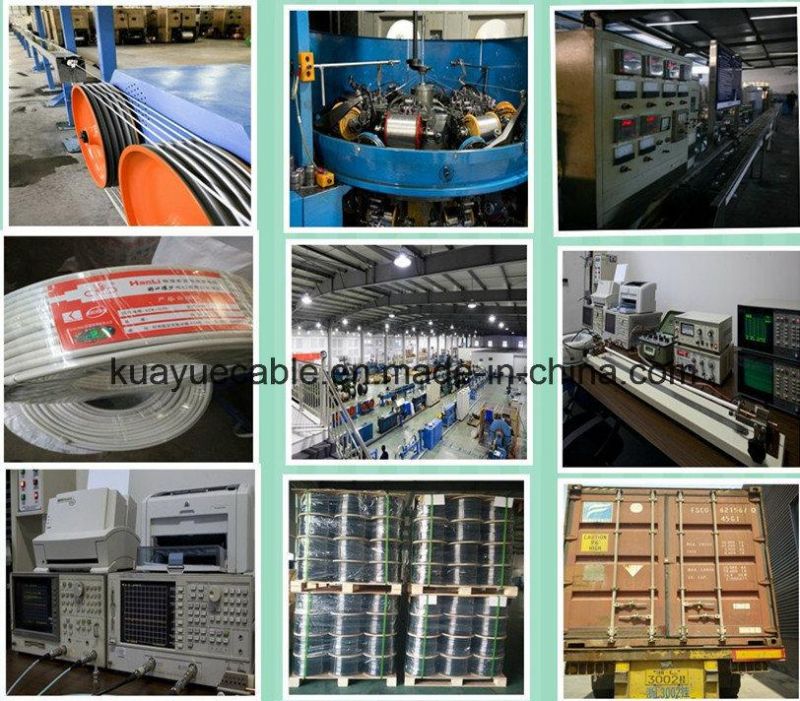

Workshop Corner
