22kv 240mm2 Sac Spaced Aerial Cable
YIFANG ELECTRIC GROUP INC.- Application：Overhead, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：Crosslinking
- Material Shape：Round Wire
Base Info
- Wire Core Material：Aluminum
- Certification：ISO, CCC
- Model：YJV
- Transport Package：Steel-Wooden Drum Packing
- Specification：90mm2 150mm2 185mm2 240mm2 300mm2
- Origin：China
- HS Code：8544601200
Description
Basic Info.
Wire Core Material Aluminum Certification ISO, CCC Model YJV Transport Package Steel-Wooden Drum Packing Specification 90mm2 150mm2 185mm2 240mm2 300mm2 Origin China HS Code 8544601200Product Description

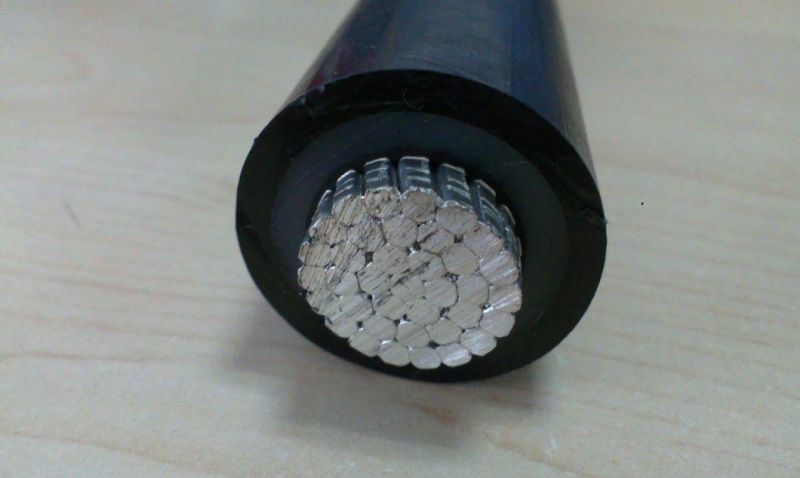

Cable details.
Phase core:
1. condcutor: stranded circular compacted aluminium alloy 1350
2.conductor screen: semi-conductive compound
3. insulation: XLPE
4.insulation screen: semi-conductive compound
5.sheath: XLPE
Aerial Cable Operating temperatures .
(a) Normal operation 90°C
(b) Emergency operation 105°C
(c) Short circuit operation 250°C (5s max)
