• Model NO.：Hta Cis Cable
• Wire Core Material：Al , Cu
• Certification：ISO, CCC, CE, RoHS, KEMA
• Model：Cis Cable
• Brand：Yifang
• Core：1core, 3core
• Sheath Colour：Black
• Standard：NFC 33226
• Metallic Screen：Aluminum Plastic Tape
• Transport Package：Drum
• Specification：1X400mm2
• Trademark：Yifang
• Origin：Zhengzhou, Henan, China
• HS Code：8544601200
• Production Capacity：150km Per Month

Basic Info.

Model NO. Hta Cis Cable Wire Core Material Al , Cu Certification ISO, CCC, CE, RoHS, KEMA Model Cis Cable Brand Yifang Core 1core, 3core Sheath Colour Black Standard NFC 33226 Metallic Screen Aluminum Plastic Tape Transport Package Drum Specification 1X400mm2 Trademark Yifang Origin Zhengzhou, Henan, China HS Code 8544601200 Production Capacity 150km Per Month

Product Description

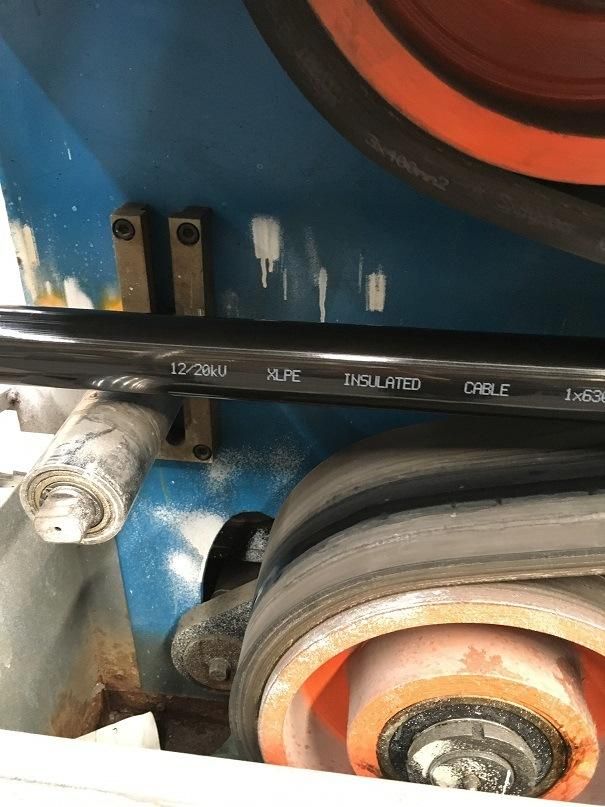

33kV 24kV 1X630 Aluminum Hta Cis MV Underground Power Cable


Application: The underground  power cable is used for power transmission.



Standard:  NFC 33-226



Rated voltage: 12/20 (24)KV ,18/30(36)KV



Number of cores: 1 or 3 cores



Commonly Used Size: 50mm2, 95mm2, 120mm2, 150mm2, 240mm2, 630mm2



Construction:



• Conductor: Compacted, circular and stranded aluminum wire, class 2 .(Copper conductor is also optional.)

• Conductor screen: Extruded semi-conducting compound layer

• Insulation: XLPE or TR-XLPE

• Insulation screen: Extruded semi-conducting compound layer with groove

• Material used for longitudinal water tightness: Swelling power

• Metallic screen layer: Longitudinal aluminium tape

• Sheath: PE sheath ,black

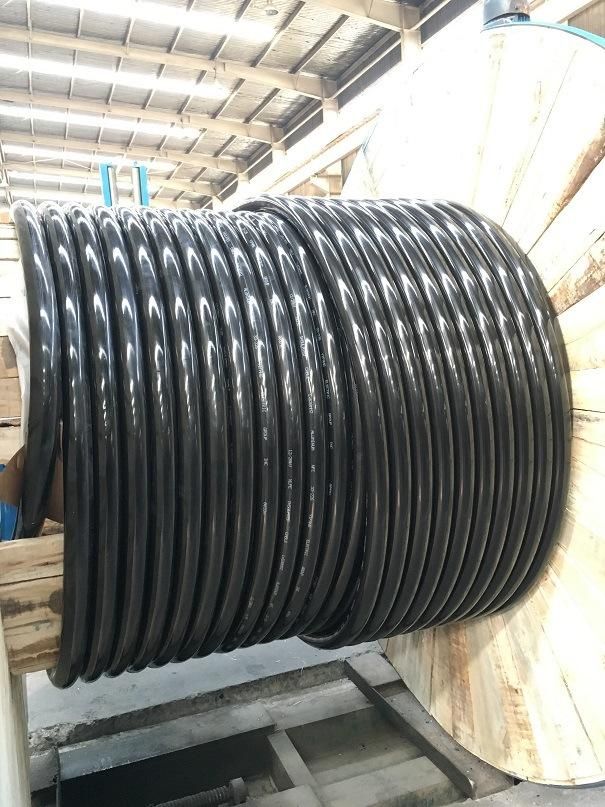

Package: 500m/drum, 1000m/drum ,2000m/drum.  It depend on clients' requirement.

Pls feel free to contact us if you need more details.
