Conductores De Aleacion De Aluminio AAAC Alton ASTM B398, 399

YIFANG ELECTRIC GROUP INC.
  • Application：Overhead
  • Voltage：High Voltage Cable
  • Current：DC & AC
  • Insulation Material：Bare
  • Sheath Material：None
  • Material Shape：Round Wire

Base Info

  • Model NO.：AAAC Alton
  • Wire Core Material：Aluminum Wire
  • Certification：ISO, CCC, CE, UL
  • Model：AAAC Alton
  • Brand：Yifangcable
  • Code Name：Alton
  • Material：Aluminum Alloy
  • Size：24.67mm2

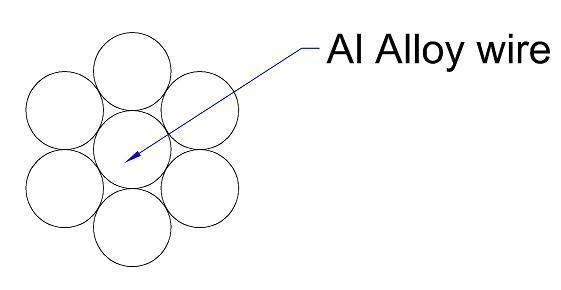

  • Strands：7
  • Standard：ASTM B398,399
  • Exported Coutry：South America:Chile, Peru,etc
  • Transport Package：Wooden Drum
  • Specification：1.0m Drum
  • Trademark：Yifang Cable
  • Origin：China
  • HS Code：7614900000
  • Production Capacity：1000km,Month

Description

TECHNICAL DATA OF AAAC Alton    NODESCRIPTIONUNIT DATA 1Type/ code name --Alton2Material --Aluminium Alloy3Standards--ASTM B399,B3984Cross Section Areamm224.75Conductor construction   Wire No.No.s7 Nominal wire dia.mm 2.126Approx. Overall Diametermm 6.367Approx. Weightkg/km67.58Min.Breaking LoadkN 7.59Max. D.C. Resistant 20ºC Ω/km 1.356
