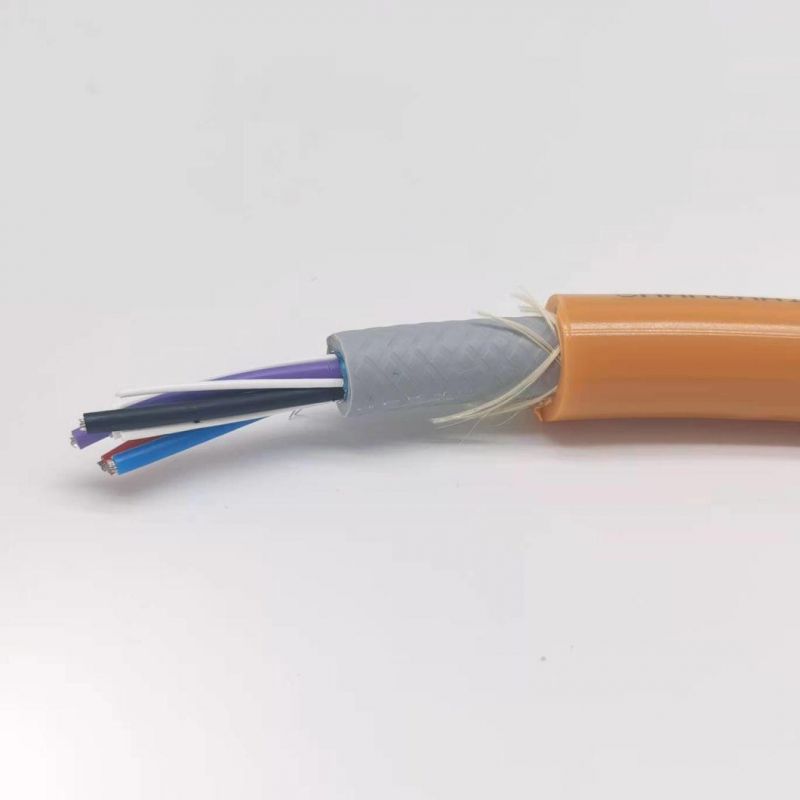

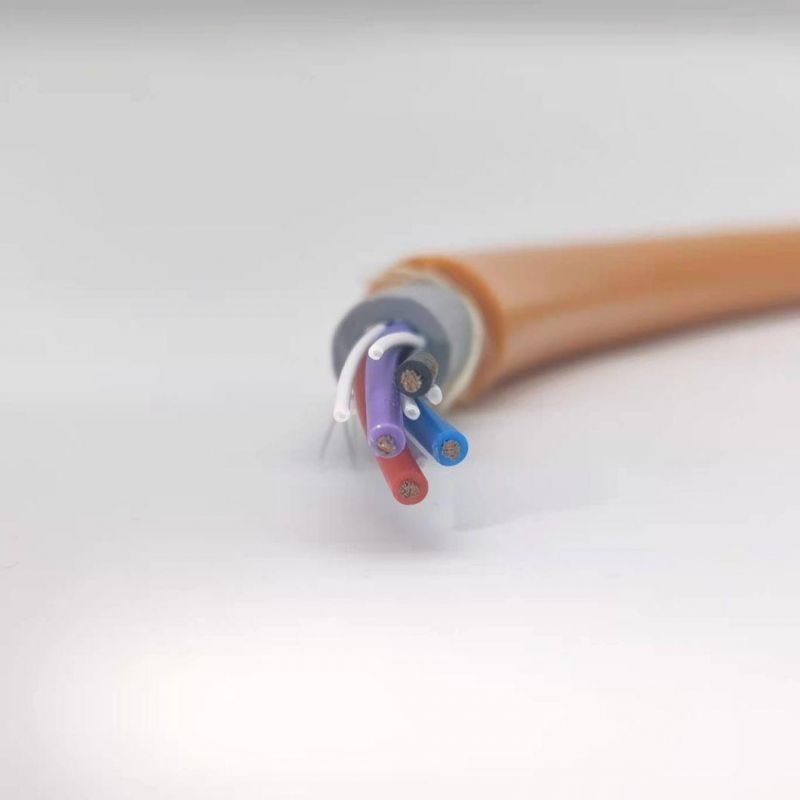

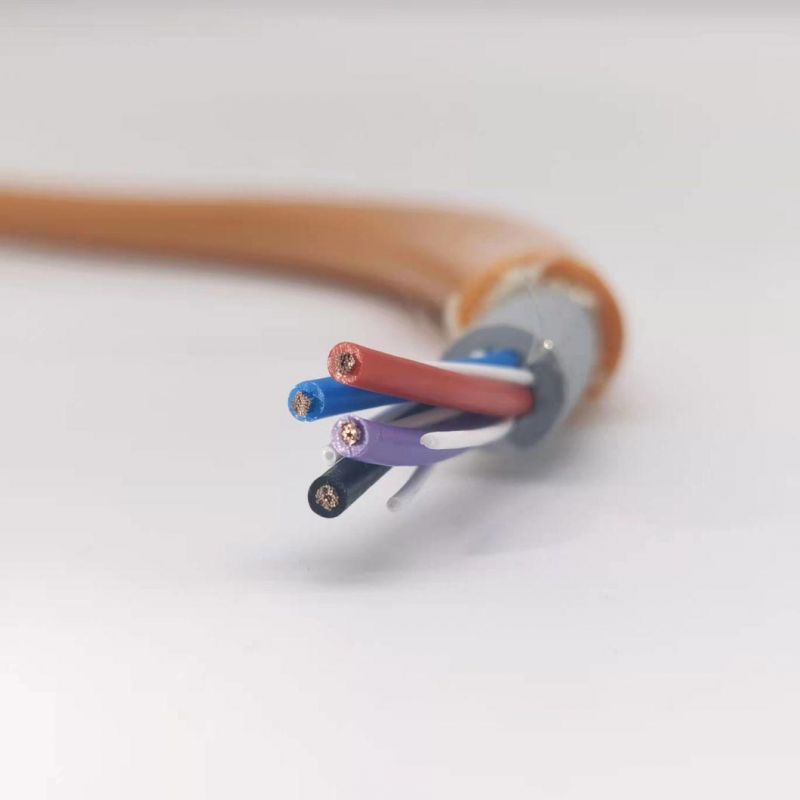

Nyy-J Power and Control Cable 0, 6/1kv Electrical Wire Helukabel Alternative

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：NYY-J
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemNYY-J Power and Control CableConductorBare copper-conductor, to DIN VDE 0295 cl.1 or cl.2, single-wire or multi-wire, BS 6360 cl.1 or cl.2,
IEC 60228 cl.1 or cl.2InsulationPVC compound type DIV4 to HD 603 S1Outer SheathPVC compound type DMV5 to HD 603 S1 Nominal voltageU 0 /U 0,6/1 kV Test voltage4 kVTemperature RangeFlexing -5°C to +50°C
Fixed installation -40°C to +70°CColorOptionalCertificationCEApplicationPower cables for energy supply are installed in open air, in underground, in water, in concrete, indoors, in cable ducts, power stations, for industry and distribution boards as well as in subscriber networks, where mechanical damages are not to be expected.
