• Model NO.：rg
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, UL
• Model：Rg213
• Producing Experience：15 Years
• Size：7,0.16mm, 19,0.18mm, 14,0.15mm....
• Transport Package：Coil Drum or as Per The Customer′s Request
• Specification：UL SGS
• Origin：Henan
• Production Capacity：300km Per Month

Basic Info.

Model NO. rg Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, UL Model Rg213 Producing Experience 15 Years Size 7/0.16mm, 19/0.18mm, 14/0.15mm.... Transport Package Coil Drum or as Per The Customer′s Request Specification UL SGS Origin Henan Production Capacity 300km Per Month

Product Description

Hot Sale RG58 RG59 RG213 Coaxial Cable

1. Structure
1). Solid or Stranded Copper or Tinned Copper Condutor
2). Insulation:PE
3). Shielding layer:Aluminum Foil+Tinned Copper Wire Braided
4).Jacket: PVC

2.Detailed data RG213

1)Center Conductor: (7*0.724mm), Dielectric: (7.24mm),
2)1'st Shield:AP bonded, 2'st Shield:96%coverage, jacket: 10.29m

RG213

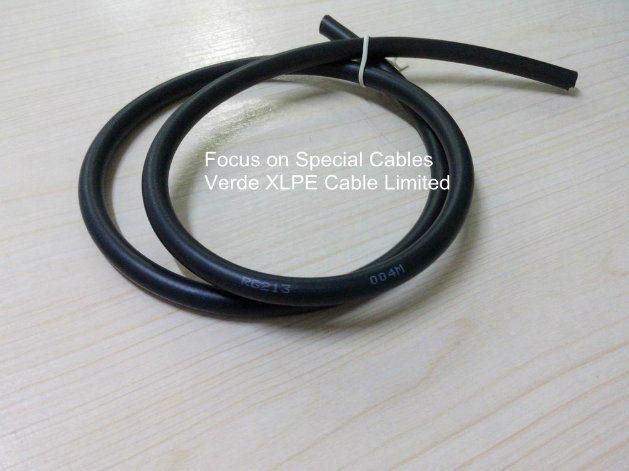

COAXIAL CABLE RG213

Specifications:
1)7X0.724mmBareCopper+7.24mmSolid PE+96%BareCopperBraiding +10.3mmPVC(or PE)
2) Customers' specifications are welcomed

Note:
1) Center conductor: Tinned Copper, and Bare Copper available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
and double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 80, 96, 120,128 ,144 and more available;
6) Braiding coverage: Between 70- 97% available;
7) PVC jacket of Flame retardant ,UV, or UL available.

Characteristics:
Impedance: 50+/-2 Ohm
Velocity of Propagation: 66%
Capacitance: 30.8pF/m
Return Loss: 20dB min
Attenuation: [@68 F. (20 C) ]  dB/100meters
10MHz:  1.80dB           400MHz: 15.10dB
20MHz:  2.80dB           500MHz: 16.20dB
50MHz:  4.40dB           8000MHz: 21.50dB
100MHz: 6.80dB         1000MHz: 24.50dB
200MHz: 9.70dB

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
