Outdoor 2 4 6 8 12 Core Optical Drop Cable G652D G657A1 G657A2 Sm FTTH Indoor Optical Fiber Cable

Hangzhou Softel Optic Co., Ltd.
  • Application：FTTH,FTTX
  • Type：Multi-mode Fiber
  • Core：1,2,4,6,8,12
  • Certification：CE, ISO9001
  • Brand：Softel
  • Sheath Material：LSZH

Base Info

  • Model NO.：GYFXBY-12B1, 6B1, 2B1
  • Fiber Type：G652D , G657A1 , G657A2 for Optional
  • Fiber Count：2-24 Core Optional
  • Strength Member：Frpx2
  • Strength Member Diameter：1.6mm
  • Outer Sheath Material：PE
  • Inner Jacket Material：PBT
  • Min. Bending Radius(mm)：20h (Static) 40h (Dynamic)
  • Short Tensile Strength：800n
  • Cable Weight Kg/Km：Approx. 34.9
  • Transport Package：Standard Export Package
  • Trademark：Softel
  • Origin：Hangzhou, Zhejiang, China
  • HS Code：85176229

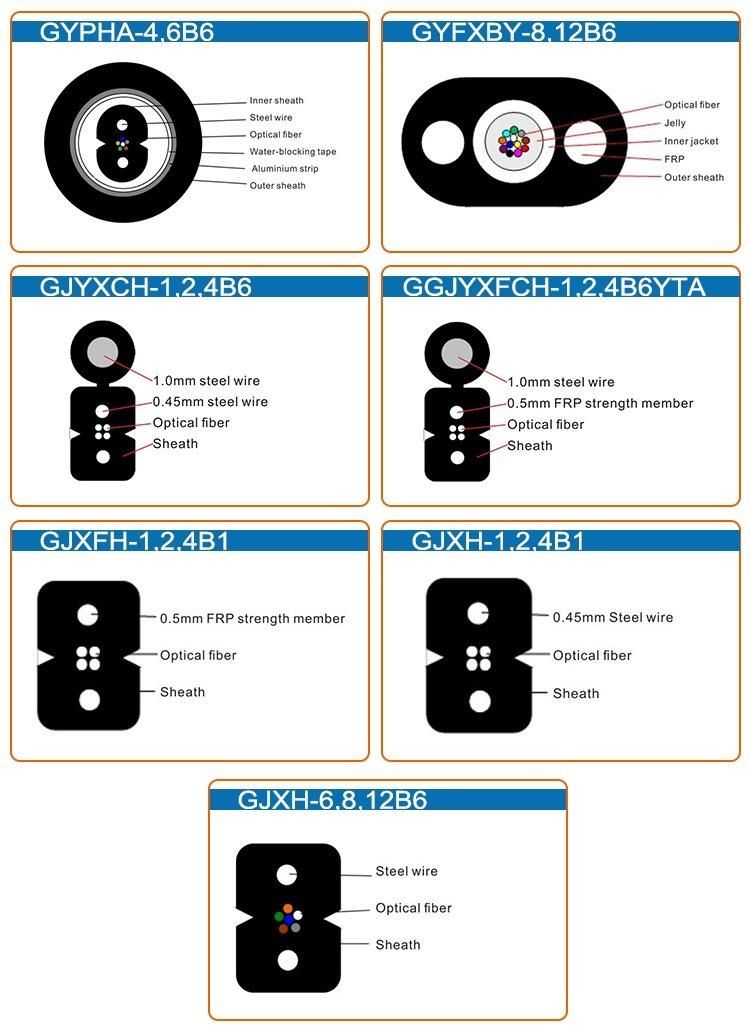

Description

Item

Technology parameter

Cable type

GJYXCH-1B6

GJYXCH-2B6

GJYXCH-4B6

Cable specification

5.2×2.0

Fiber type

9/125 (G.657A2)

Fiber counts

1

2

4

Fiber color

Red

Blue, orange

Blue, orange, green, brown

Sheath color

Black

Sheath material

LSZH

Cable dimension   mm

5.2(±0.2)*2.0(±0.2)

Cable weight   Kg/km

Approx. 19.5

Min. bending radius mm

120

Min. bending radius mm

(Excluding messenger wire)

10 (Static)

25 (Dynamic)

Attenuation   dB/km

≤ 0.4 at 1310nm, ≤0.3 at 1550nm

Short term tensile   N

600

Long term tensile   N

300

Short term crush N/100mm

2200

Long term crush N/100mm

1100

Operation temperature   ºC

-20~+60

Outdoor 2 4 6 8 12 Core Optical Drop Cable G652D G657A1 G657A2 Sm FTTH Indoor Optical Fiber Cable

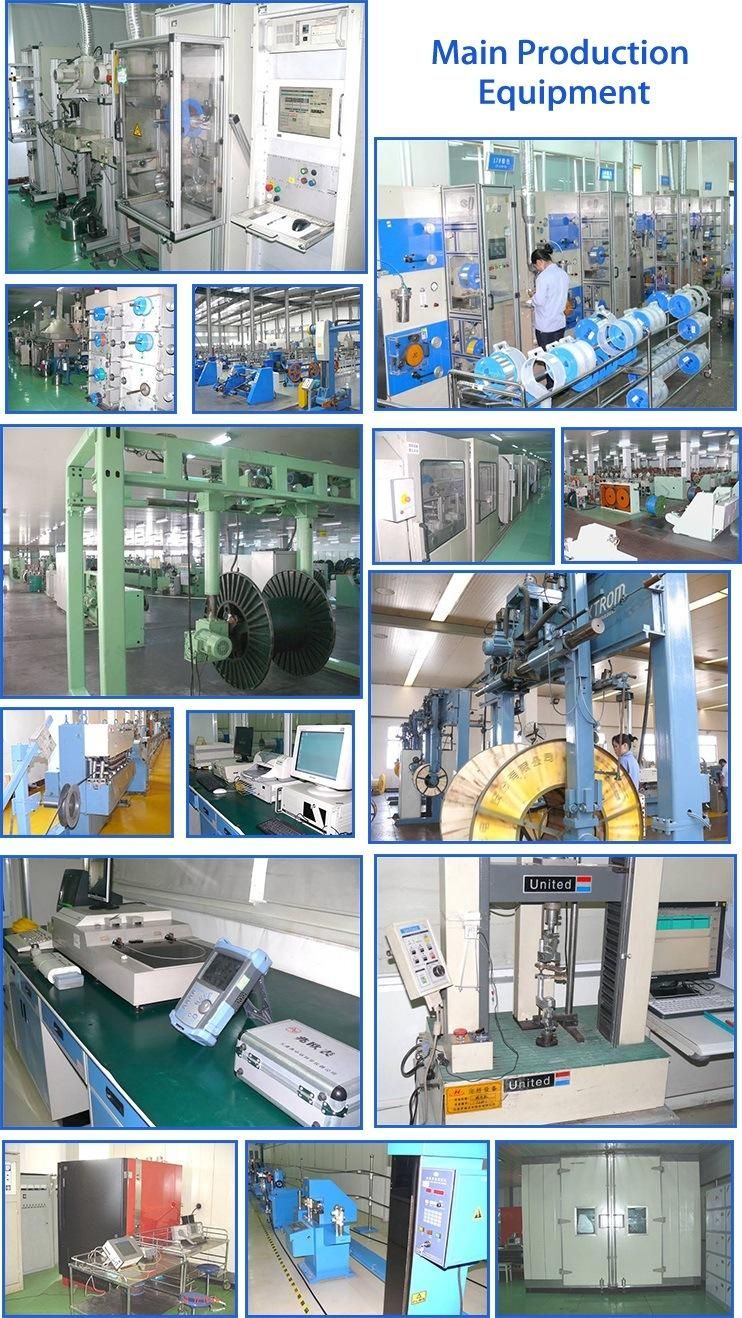

Production progress
