Home > Product > PV Cable

Factory Direct Sale 4mm2/6mm2 High Quality TUV Approval DC 1500V for Solar Energy System Solar PV Cable

Tianjin Feiya Electric Wire & Cable Co., Ltd.

Application：Power Station
Material Shape：Round Wire
Sheath Material：Crosslinking
Insulating Material：Xlpo
Conductor Type：Stranded
Brand：Fengda

Base Info

Model NO.：H1Z2Z2-K
Certification：CE
Wire Core Material：Tinned Wire
Colour：Red,Green,Blue,Black,White,as Request
Flame Test：Yes
OEM/ODM：Accepted
Core：Single Core and Multicore
Factory Type：Manufacturer
Transport Package：Rolls or According to Cusotmers′ Reques

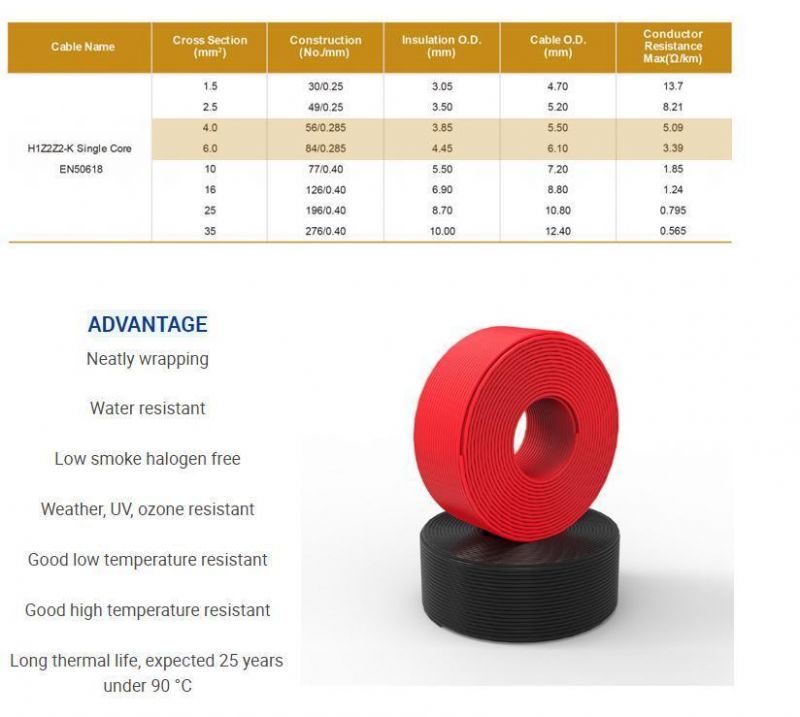

Specification：1.5 to 35mm2
Trademark：FengDa
Origin：Tianjin, China(Mainland)
HS Code：8544492100
Production Capacity：5000000km,Year

Description

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified4ODM&OEM is available.

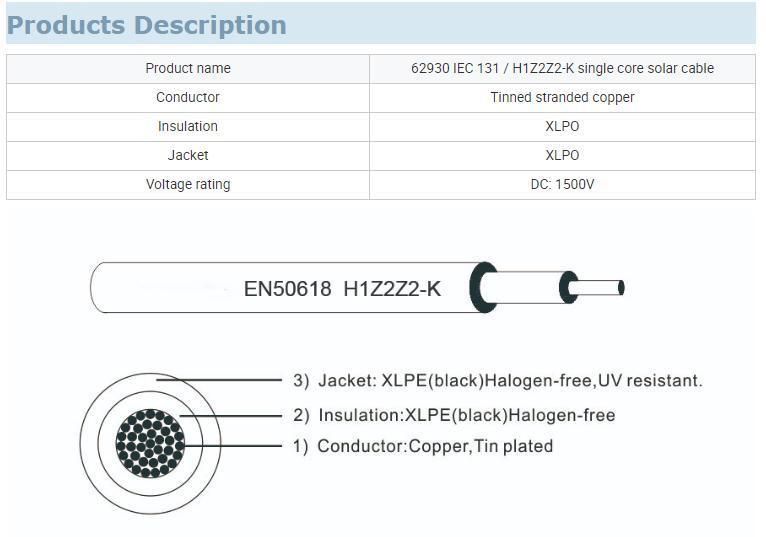

Type:H1 Z2Z2-K
Standard:EN 50618 Halogen free:EN 50267 / IEC 60754 Smoke
Density:light transmittance acc. to EN 50267 / IEC 61034
Conductor: Electrolytic annealed flexible tinned copper conductor
Insulation: Halogen Free, Thermosetting insulated
Sheath: Halogen Free, Thermosetting Sheath
Rate Voltage: 0.6/1kV AC;1800V DC HCI Content: <0.5% pH: >4.3 Smoke
Density: light transmittance >60%
Temperature Limits: Ambient Temperature: -40 to 90°C; Maximum conductor temp: 120°C Maximum short circuit temp: 250°C (max 5s). Short Circuit temp: 250°C
Factory Direct Sale 4mm2/6mm2 High Quality TUV Approval DC 1500V for Solar Energy System Solar PV Cable
