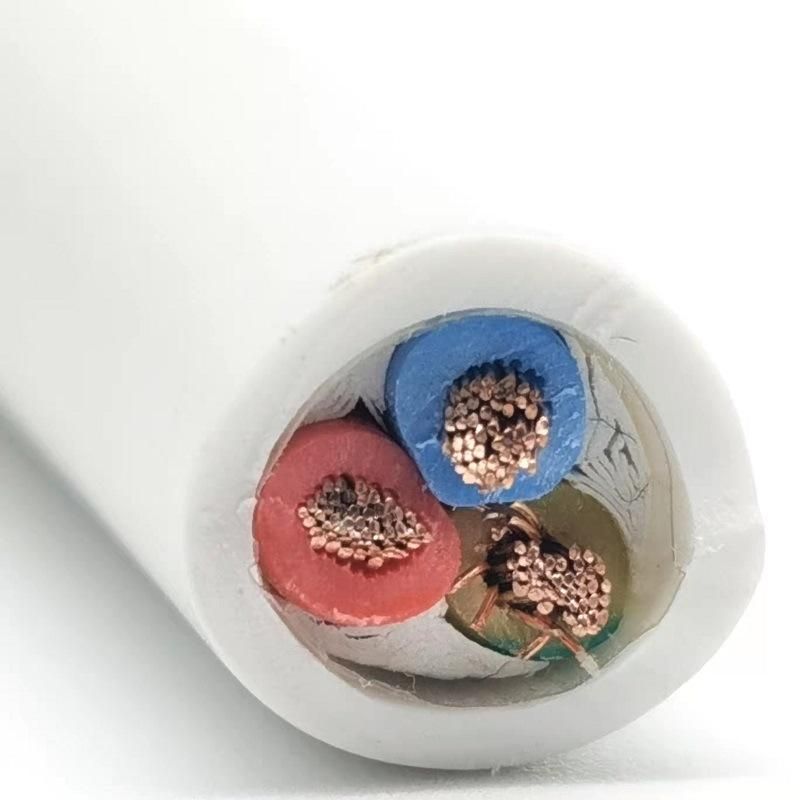

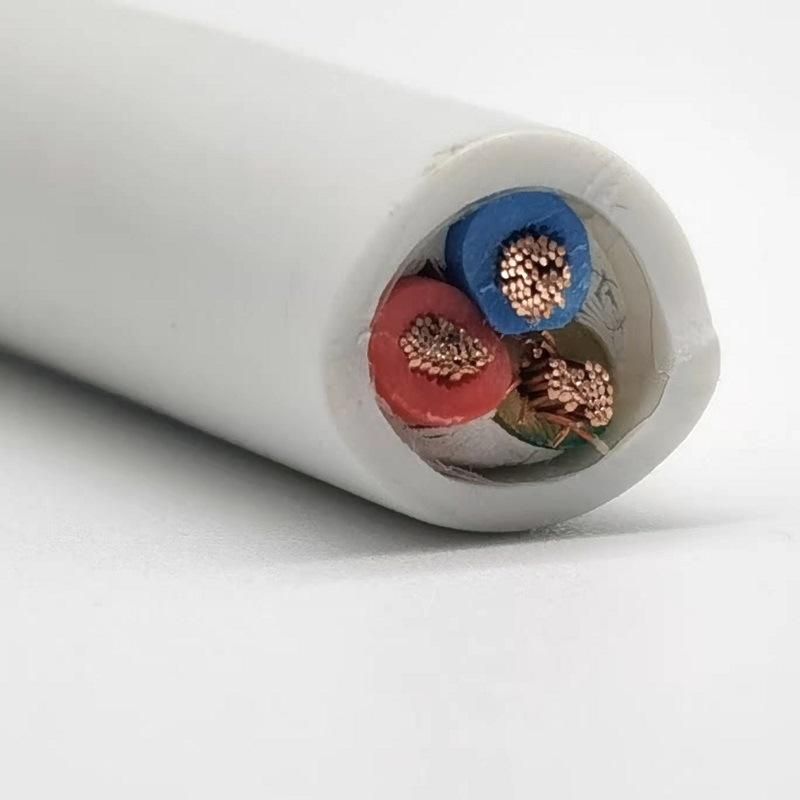

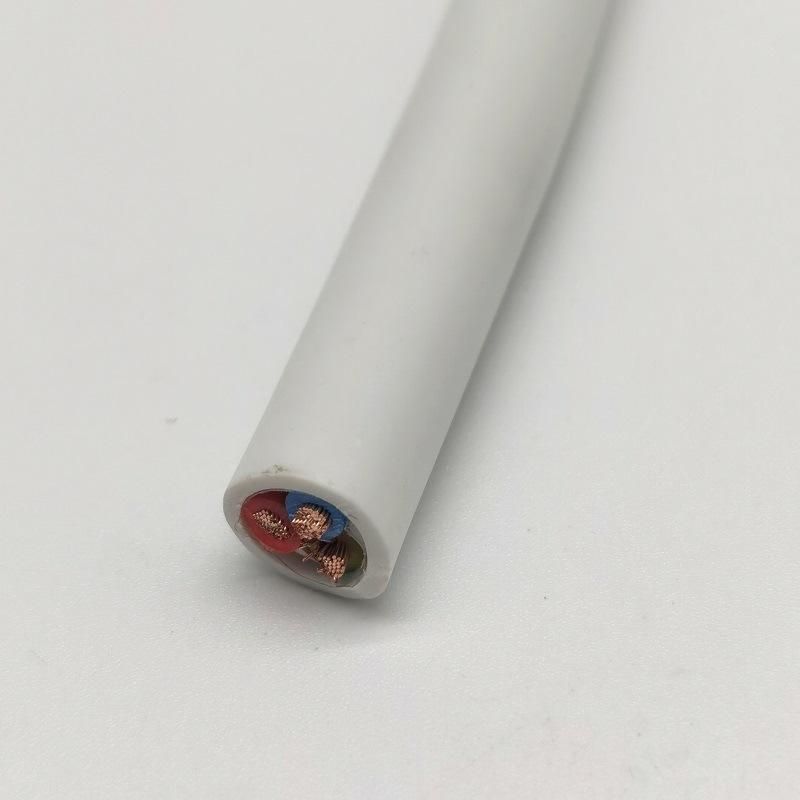

CE Certified 0.6/1kv Fg7or Cable Rubber Insulated Cable for Power Transport

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Fixed Installation
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：Rubber

Base Info

  • Model NO.：FG7OR Cable
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

Item0.6/1KV FG7OR Cable for Power TransportConductorCopperInsulationRubber HEPRFillingNot fibrous and not hygroscopic fillerOuter SheathPVCCore NumberMulticores (As client's requirement)Rated Voltage 600/1000 VTest Voltage4000V Minimum Bending Radius4 x ØTemperature RangeFlexing Temperature: 0ºC to +90 ºC
Static Temperature: -25ºC to +90 ºCColorOptionalCertificationCEApplicationThese cables are suitable for power transport in industry, yards, residential building and handicraft. For installations on masonry and metal structures, on gangways, pipes, ducts and similar systems. For fixed installation indoors and outdoors. Underground laying is acceptable, even if not protected.
