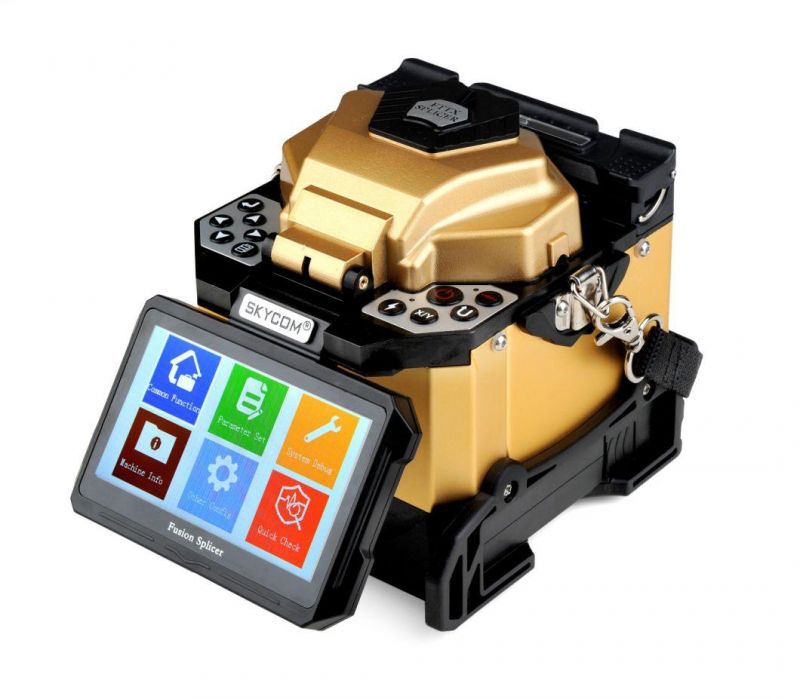

CE SGS Approved Fiber Optic Welding Machine (T-308X)
Nanjing Tianxingtong Electronic Technology Co., Ltd.- Type：Fiber Splicer
- Certification：CE, ISO
- Customized：Customized
- Condition：New
- Feature：Fire,Flame Retardant
- Applicable Fibers：Sm, mm, Nz-Ds, Edf, Pigtail, Rubber-Insulated Wire
Base Info
- Model NO.：T-308X
- Average Splice Loss：0.02dB(Sm), 0.01dB(mm), 0.04dB(Nzds), 0.04dB(Edf)
- Return Loss：>60dB
- Protection Sleeve Length：20mm, 40mm, 60mm
- Language：Chinese, English
- Tension Test：2.0n 200GF Standard
- Monitor：4.3 Inches Colorful LCD Display
- Fiber Image Magnification：X and Y Views with 200 Times
- Dimension：120mm(W) *120mm( D) * 130mm(H)
- Weight：1.29kg Without Battery
- Transport Package：Export-Standard Carton Box with PE Foam Inside
- Specification：CE, SGS, CSI, ISO9000
- Trademark：Skycom , OEM
- Origin：Nanjing, China
- HS Code：8515800090
- Production Capacity：500PCS, Month
Description
Description> Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
> We has been dedicated to R & D, manufacturing fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. SKYCOM T-308X is our latest developed product. It is more concise and smaller in size and has obtained 2 patents for its new technologies.
> 4.3 inches high resolution colorful LCD display, image can be turned according to position
> Typical splice time: 9 seconds
> Typical heat time: 25 seconds
> 5200mAh, Ultra-high Battery
> Multistage Amplification, Magnification up to 520X Which Makes Clear Image
> New developed technology providing strong wind and dust resistance
> Splicing mode: Auto & Manual & Full-Auto
> USB Port
> Automatic Detection
Specification
| Applicable Fibers | SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function) |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | ≥60dB |
| Tension Test | 2.0N(200gf)(Standard) |
| Typical splicing time | 9 seconds |
| Typical heating time | 25 seconds |
| Splicing Program | 50 preset and user programmable modes |
| Heating Program | 10 heating modes |
| Applicable Sleeve Length | Micro, 40mm, 45mm, 60mm |
| Tension Test | 1.96~2.25N |
| Cleaved Length | 8~16mm-250μm 13~mm-900μm |
| Operating Language | Chinese, English, French, Portuguese, Spanish |
| Operating Conditions | -10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
| Power Supply | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Inner lithium battery: 11.1V, 5.2AH |
| Monitor | 4.3 inches high resolution colorful LCD display |
| Fiber Image Magnification | X or Y axis Separately views 520 times magnification, or Simultaneously 220 times |
| Storage of Splice Result | 6,000 groups of latest splice results |
| Splicing Model | Auto & Manual & Full Auto |
| Optical Fiber Fixture | 3-in-1 cutting fixture; Multipurpose 1+N fixture (T-308XF, for SC/LC/FC connector) |
| Dimensions | 120(W)*120(D)*120(H)mm; |
| Weight | 1.39kg+0.34kg (battery weight)=1.73kg; |
| Applicable Fibers | SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function) |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
Standard Package
| No. | Item | 1 |
| 1 | Machine T-308X | 1 |
| 2 | Fiber Cleaver | 1 |
| 3 | Fiber Stripper | 1 |
| 4 | AC Adaptor (Charger) | 1 |
| 5 | Battery | 1 |
| 6 | Spare Electrodes | 1 |
| 7 | Cooling Tray | 1 |
| 8 | Instruction CD | 1 |
| 9 | Quick Reference Guide | 1 |
| 10 | Rubber-insulated wire stripping pliers | 1 |
| 11 | Rubber-insulated wire 3-in-1 cutting fixture | 1 |
| 12 | Carrying Case with Carrying Strap | 1 |
*Export-standard Carton Box with PE Foam inside (43*32.5*26.5cm)
