• Model NO.：Alluminio cable ARE4H5E (X)
• Wire Core Material：Aluminium
• Certification：ISO, CCC, SGS
• Model：A2xs2y-T
• Brand：Hongda
• Rated Voltage：12,20 Kv (24 Kv)
• Transport Package：500m Per Drum
• Specification：25mm2 to 300mm2
• Trademark：Hongda, OEM
• Origin：China
• HS Code：8544601200
• Production Capacity：3000km,Year

Nominal voltage:U 0 /U = 12/20 kVMinimum bending radius:10 int. diameterTemperatura d'esercizio:105° CTraction force during laying:50 N/mm 2 of copper section max for mobile layingsShort circuit temperature:300° CLaying temperature:Minimun -5 ° C

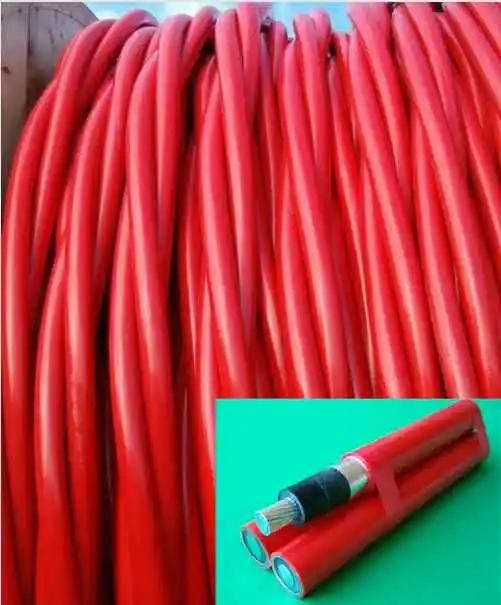

ARE4H5E (X) 12/20KV Alluminio

Number conductors nominal SectionNominal Diameter conductorDiameter insulationDiameter externalWeight of the cableradius minimum curvatureResistance electric a 20 ° Ccurrent in air Acurrent underground A3x1x3571754.617105460.8681661553x1x508.21858.0518605800.6411991893x1x709.71960.221006020.4332482263x1x9511.42164.524006450.323022703x1x12012.92266.6527006660.2533503083x1x150142468.831506880.2063963443x1x18515.82575.2536007520.1644583903x1x24018.22879.5543507950.1255434533x1x30020.83188.1552508810.16295153x1x40023.83594.663009460.0778738588

ENEL registration numbers
Serial number ENEL 332282: Formation 3 x (1 x 70)
Serial number ENEL 332283: Formation 3 x (1 x 95)
Serial number ENEL 332284: Formation 3 x (1 x 185)

• Average insulation thickness
• Average sheath thickness
• Nominal outer diameter
• Messenger cross-section
• Messenger conductor diameter
• Messenger insulation thickness
• Overall messenger diameter
• Diameter over assembly
• Approximate weight
• Permissible current rating in open air
