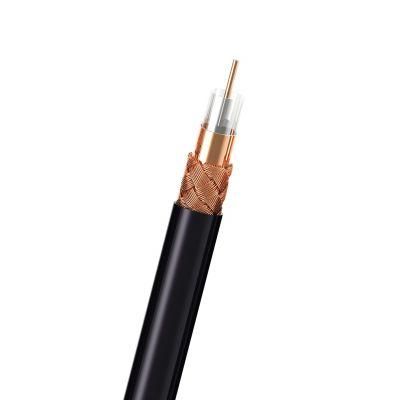

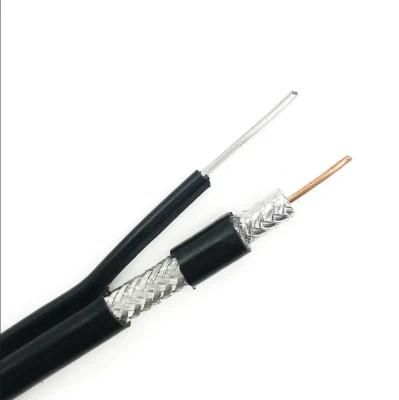

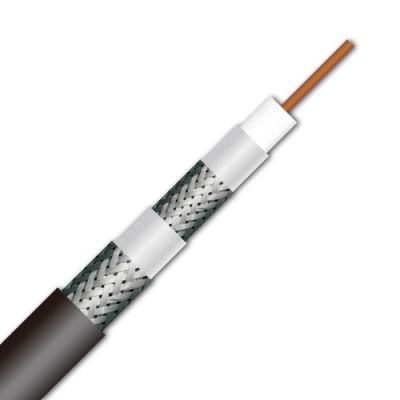

RG6 Dual 60% PVC 75 Ohm CATV Coaxial Cable
Hangzhou Spring Electronics Co., Ltd.- Application：Local Communication Cable, Coaxial Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：RG6 Cable
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：rg6
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Brand：OEM
- Cable Conductor：1.02mm
- Transport Package：Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box
- Trademark：FUU
- Origin：Made in China
- HS Code：8544200000
- Production Capacity：3000km,Month
Description
Construction Parameters:
Inner Conductor
0.040"/1.02mm/18AWG CCS
Dielectric
0.170"/4.32mm Foamed FEP
Shield 1
Bonded Aluminum Polyproylene
Shield 2
Aluminum braid wire 60% coverage
Jacket
0.232"±0.006"/5.9±0.15mm PVC CMP
Jacket Thickness
0.030"/0.76mm
Application
For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance
The Max. at 20ºC shall be < 87 Ω/km
26.6Ω/1000ft
Capacitance
52 ±3 pF/m 15.9 ±0.9 pF/ft
Impedance
75 ± 3 Ω
Return loss
between 5 and 1000MHz: > 22dB
Velocity of Propagation
0.85
Sparker Test (VAC)
4
Mechanical and Envrionmental Properties
Cable bend radius
10 times the cable diameter
Operating Temp Range
-20 ºC to 60ºC
Cable diamensions
2×(0.232"±0.006"/5.9±0.15mm PVC CMP)

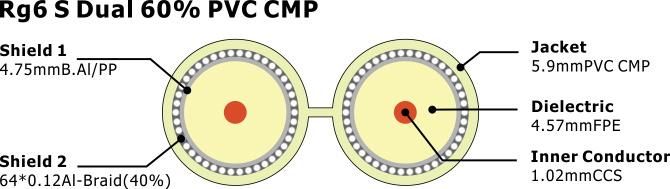

Cross Section
Attenuation(20ºC):
Frequency (MHZ)
Max Attenuation(dB/100ft)
Max Attenuation (dB/100m)
1
0.50
1.64
10
0.92
3.02
50
1.60
5.25
100
2.40
7.87
200
3.40
11.14
400
4.80
15.74
700
6.50
21.31
900
7.70
25.24
1000
8.10
26.55
1200
9.00
29.50
1450
9.90
32.46
1800
11.20
36.72
2200
13.00
42.62
3000
15.30
50.16
Order Informations:
Marking
RG6 Dual 60% PVC 75 Ohm CATV coaxial Cable ×××MT
Package
Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time
Normally 25 days after received the deposit.
