FTP CAT6 Outdoor LAN Cable Network Cable Wiring

GENERAL CLAD CO., LTD.
  • Application：Local Communication Cable, Coaxial Cable, LAN Cable, RF Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：CAT6
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Color：Grey, Blue, Black, Yellow, Red etc
  • Transport Package：Carton Box
  • Specification：305m,roll
  • Trademark：General Clad
  • Origin：China
  • Production Capacity：10000 Boxes, Month

Description

FTP CAT6 Outdoor LAN Cable Network Cable WiringFTP CAT6 Outdoor LAN Cable Network Cable Wiring FTP CAT6 Outdoor LAN Cable Network Cable WiringFTP CAT6 Outdoor LAN Cable Network Cable WiringDescriptionRated temperature -20--75ºC

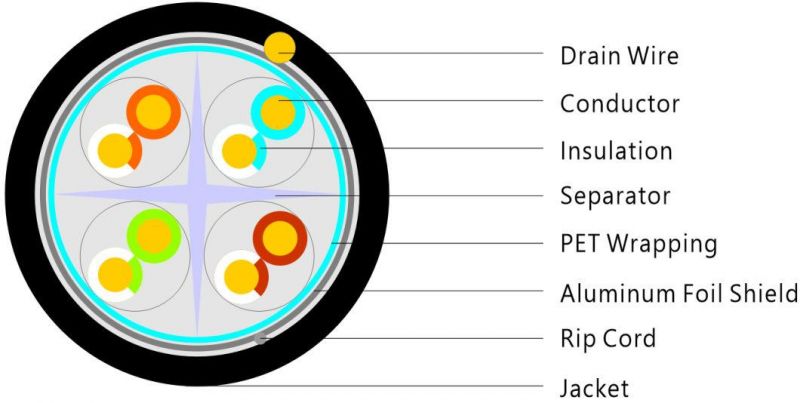

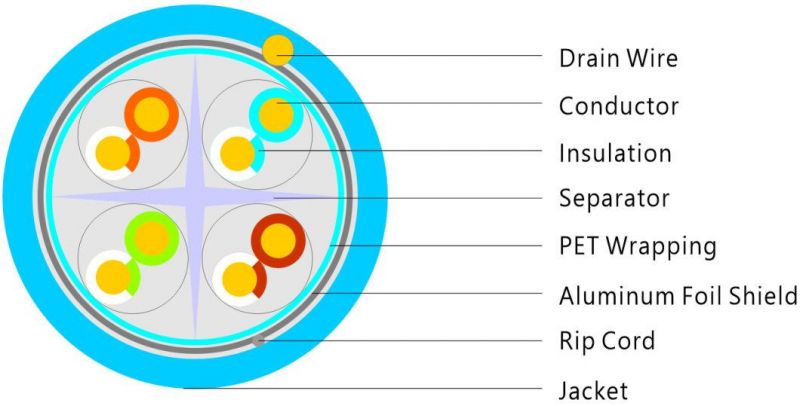

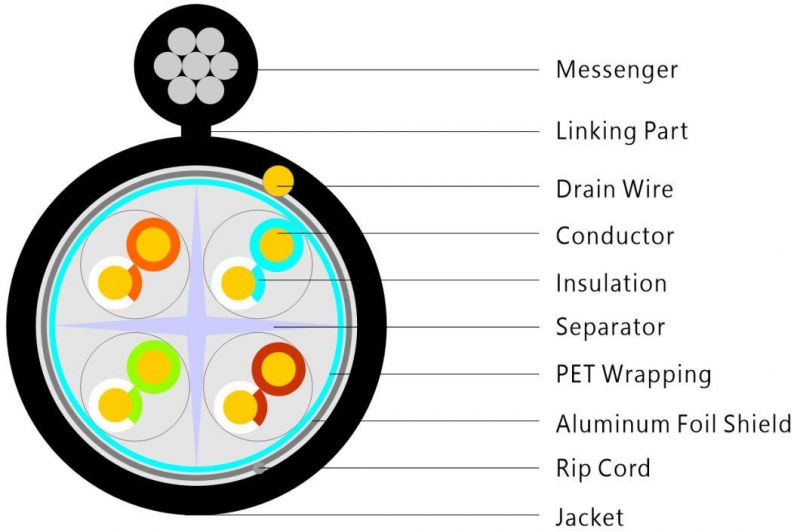

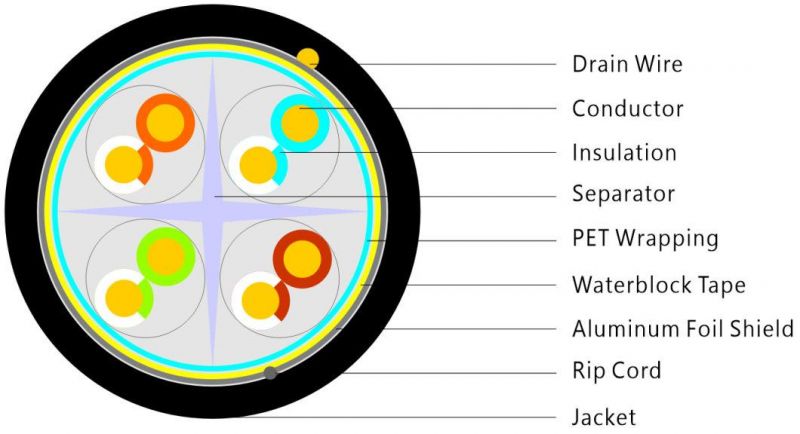

Standard UL444, TIA/EIA568B, ISO/IEC11801
23 awg wire gauge
A single bare copper conductor
Insulating high density polyethylene
Line of 4
Sheathed polyvinyl chloride
Tear the rope as neededElectrical properties1.0~ 500.0mhz characteristic impedance (ohms) 100±15
1.0~ 500.0mhz delay difference (ns/100m) ≤45
At 20ºC, the maximum dc resistance (ohms/km) of the conductor is less than or equal to 65.8
Conductor resistance unbalance (%) ≤1.0Application100 Base - T4
100 Base - TX
100 VG - AnyLAN
155 Mbps ATM
622 Mbps ATM

   Package
 FTP CAT6 Outdoor LAN Cable Network Cable WiringFTP CAT6 Outdoor LAN Cable Network Cable WiringFTP CAT6 Outdoor LAN Cable Network Cable Wiring
