Aeroprex Rz Cu / Xs - Aerial Bundle Cable 0.6/1 Kv

Henan Hongda Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Overhead
  • Conductor Material：Copper
  • Sheath Material：Crosslinking
  • Insulation Material：XLPE

Base Info

  • Model NO.：Cu , XS cable
  • Material Shape：Round Wire
  • Range of Application：Distribution of Low Voltage Electricity in Overhea
  • Certification：ISO9001, CCC, SGS
  • Brand：Hongda
  • Nominal Voltage：0.6,1kv
  • Standards：Une 21030-2
  • Maximum Temperature Rating of The Conduc：+90 C
  • Test Voltage：3500 V a.C.
  • Transport Package：1000m , Export Drum
  • Specification：2.5mm2 to 25mm2
  • Trademark：Hongda or OEM
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：22000km,Year

Description

Basic Info.

Model NO. Cu / XS cable Material Shape Round Wire Range of Application Distribution of Low Voltage Electricity in Overhea Certification ISO9001, CCC, SGS Brand Hongda Nominal Voltage 0.6/1kv Standards Une 21030-2 Maximum Temperature Rating of The Conduc +90 C Test Voltage 3500 V a.C. Transport Package 1000m / Export Drum Specification 2.5mm2 to 25mm2 Trademark Hongda or OEM Origin China HS Code 8544492100 Production Capacity 22000km/Year

Product Description

AEROPREX RZ Cu / XS - Aerial Bundle Cable 0.6/1 kV

APPLICATIONS
Suitable for the following installations:
  • Overhead networks
  • Overhead supply networks for outdoor lighting installations
  • Overhead service connectionsIndoor or receiver installations

STANDARDS:

CONSTRUCTIONFIRE PERFORMANCE
UNE 21030-2IEC 60754-1
 EN 60754-1
 IEC 60754-2
 EN 60754-2

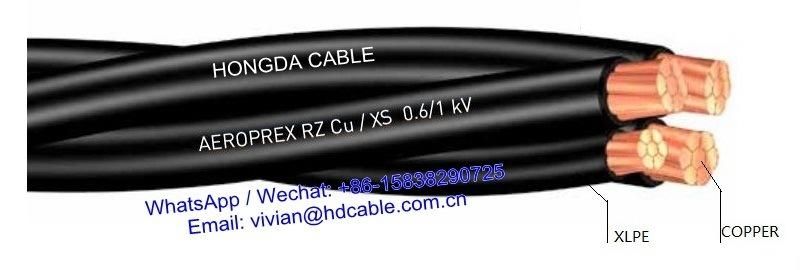

CONSTRUCTION:

  1. CONDUCTOR: Copper class 2 to IEC 60228.
  2. INSULATION: Cross-linked polyethylene (XLPE).
Aeroprex Rz Cu / Xs - Aerial Bundle Cable 0.6/1 Kv

Nominal voltage

0,6/1 kV

Test voltage

3.500 V A.C.

Maximum temperature

90 ºC

Other characteristics

Its formulation provides protected insulation to support outdoor weather conditions
The use of cross-linked polyethylene (XLPE) admits greater current density, at equal section, with respect to the insulation with PVC
CPR Classification according to EN 50575


DIMENSIONS
Section
(mm2)		Resistance
at 20 °C
(Ohm/km)		External
Diameter
(mm)		Weight
(kg/km)		Class

2x2,5

7,41

8,15

61

Fca

2x4

4,61

8,60

87

Fca

2x6

3,08

10,00

125

Fca

2x10

1,83

11,60

196

Fca

2x16

1,15

13,60

302

Fca

2x25

0,727

16,40

471

Fca

3x2,5

7,41

8,75

92

Fca

3x4

4,61

9,25

131

Fca

3x6

3,08

10,75

187

Fca

4x2,5

7,41

9,85

122

Fca

4x4

4,61

10,40

175

Fca

4x6

3,08

12,05

249

Fca

4x10

1,83

14,00

393

Fca

2x4 + 2x2,5

4,61

10,50

152

Fca

4x16

1,15

16,40

604

Fca

2x6 + 2x2,5

3,08

11,90

193

Fca

4x25

0,727

17,60

942

Fca

4x35

0,524

27,25

1.340

Fca

5x2,5

7,41

11,00

153

Fca

5x4

4,61

11,60

218

Fca

5x6

3,08

13,50

311

Fca

5x10

1,83

15,65

491

Fca

5x16

1,15

18,35

755

Fca

5x25

0,727

22,15

1.178

Fca

4x6 + 1x16

1,15

15,65

422

Fca

4x4 + 2x2,5

4,61

12,90

244

Fca

4x6 + 2x2,5

3,08

14,55

325

Fca

4x10 + 2x2,5

1,83

16,25

454

Fca

5x4 + 2x2,5

4,61

13,50

289

Fca

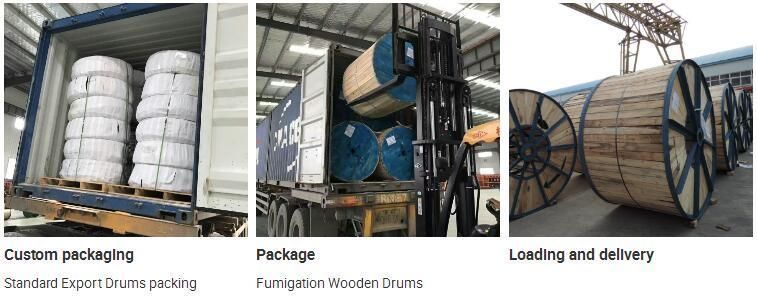

Packing & Delivery

Packing
Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
Aeroprex Rz Cu / Xs - Aerial Bundle Cable 0.6/1 Kv

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping Port:
Shanghai, Qingdao, Tianjin or other ports as per your requirements.

Sea freight:
FOB/C&F/CIF/DAP quotation are all available.
