• Model NO.：thermocouple wire
• Material Shape：Round Wire
• Range of Application：Thermocouple, Temperature Measurement
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Fongming
• Name：PFA Fiberglass Insulated J K Type Shield Cable
• Transport Package：100m, 200m or 305m Per Roll. Carton Packing.
• Specification：2*26AWG-2*14AWG
• Trademark：FONGMING
• Origin：Yangzhou, Jiangsu Province, China
• HS Code：8544492100
• Production Capacity：100000000m Per Year

Basic Info.

Model NO. thermocouple wire Material Shape Round Wire Range of Application Thermocouple, Temperature Measurement Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Fongming Name PFA Fiberglass Insulated J K Type Shield Cable Transport Package 100m, 200m or 305m Per Roll. Carton Packing. Specification 2*26AWG-2*14AWG Trademark FONGMING Origin Yangzhou, Jiangsu Province, China HS Code 8544492100 Production Capacity 100000000m Per Year

Product Description

Product Description

PFA Fiberglass Insulated J K Type Shield Cable

Description
Name:PFA Fiberglass Insulated J K Type Shield Cable
Model: J-AG-GP, K-AG-GP
Size: 2*26AWG-2*14AWG

Feature
1. STANDARD- IEC584-3(19889) produce based on client's requirement.
2. S,R,K,N,J,T,PT100 type
3. Insulation: Silicone,teflon,PVC,fiberglass.KAPTON
4. Cores: 2
Standard: ANSI/MC96.1, IEC584-3, JIS C1610, DIN 43714, BS 1843, NF C 42-323

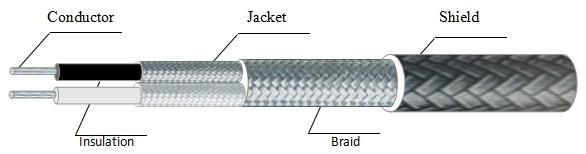

Structure
Conductor: Ni-Cr (positive), Ni-Si (negative)
Insulation: PFA
Jacket: Fiberglass
Shield: Stainless Steel






Size (AWG)	Conductor Structure P&N  (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	Diameter (mm)	Shield Thickness (mm)	OD (mm)
2*26	7/0.16	0.48	0.2	0.9	0.2	1.3	0.2	1.7*2.8	0.2	2.1±0.2*3.0±0.2
2*24	7/0.2	0.6	0.2	1.0	0.2	1.4	0.2	1.8*3.0	0.2	2.2±0.2*3.2±0.2
2*22	7/0.254	0.76	0.2	1.2	0.2	1.6	0.2	2.0*3.4	0.2	2.4±0.2*3.6±0.2
2*20	7/0.32	0.96	0.2	1.4	0.2	1.8	0.2	2.2*3.8	0.2	2.6±0.2*4.0±0.2
2*18	7/0.39	1.17	0.25	1.7	0.2	2.1	0.2	2.5*4.4	0.2	2.9±0.2*4.6±0.2
2*16	19/0.3	1.5	0.25	2.0	0.2	2.4	0.2	2.8*5.0	0.2	3.2±0.2*5.2±0.2
2*14	19/0.37	1.85	0.25	2.4	0.2	2.8	0.2	3.2*5.8	0.2	3.6±0.2*6.0±0.2

Instruction
Thermocouple compensated wire, insulated with high temperature glass braid.
A consumable item, which is used to convert the thermal energy at the hot
junction of thermocouple to an electrical signal which can then be used by
temperature control and recording instruments to accurately record and control
the temperature of the item being heat treated.



Certifications



Company Information





Packaging&Shipping




Our Services

1. OEM service available based on official & legal authorization.

2. Strict quality control system.

3. Timely deliverly.

4. Excellent quality with affordable price.

5. Strong technical support.

6. Mobile on 24 hours for any question.

FAQ

1. Why is the price so low?
You are ordering directly from the factory.



2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.



3. Can I get some samples?
Yes, we are honored to offer you samples.



4. Can you make the products with my design?

Yes. customization is welcome .
