ACAR 1024.5MCM Aluminum Conductor Aluminum Alloy Reinforced ASTM B 524
Jiangsu Grand Cable Co., Ltd.- Application：Construction, Overhead, Industrial, Power Station
- Voltage：Ultra-high Voltage Cable
- Current：AC Cable
- Insulation Material：N,a
- Sheath Material：N,a
- Material Shape：Round Wire
Base Info
- Model NO.：ACAR
- Wire Core Material：ACAR
- Certification：ISO, CCC
- Model：ACAR
- Brand：Grandcable
- Transport Package：Fumigated Drum
- Specification：1024.5 MCM
- Trademark：Grandcable
- Origin：Jiangsu, China
- HS Code：7614100000
- Production Capacity：27000 Ton , Year
Description
Stranding in.Outside Diameter Area Wire Diameter Overall Diameter of Conductor Linear Weight Rated Strength Maximum DC Resistance at 20ºC AWG or Kcmil 1350-H19 6201- T81 in. mm2 mm mm Kg/km daN Ω /km 30.6 4 x 0.0661 3 x 0.0661 0.198 15.5 1.679 5.03 43 367 1.983 4 4 x 0.0772 3 x 0. 0772 0,232 21.2 1.961 5.89 59 498 1.454 48.7 4 x 0.0834 3 x 0.0834 0.250 24.7 2.118 6.35 68 573 1.246 2 4 x 0.0974 3 x 0.0974 0.292 33.6 2.474 7.42 93 777 0.913 77.5 4 x 0.1052 3 x 0.1052 0.316 39.3 2.672 8.03 109 893 0,721 1/0 4 x 0.1228 3 x 0,1228 0.368 53.5 3.119 9.35 148 1195 0.575 123.3 4 x 0.1327 3 x 0.1327 0.398 62.5 3.371 10.11 173 1395 0.492 2/0 4 x 0.1379 3 x 0.1379 0.414 67.4 3.503 10.52 187 1470 0.455 155.4 4 x 0.1490 3 x 0.1490 0.447 78.7 3.785 11.35 218 1700 0.390 3/0 4 x 0.1548 3 x 0. 1548 0.464 85 3.932 11.80 235 1820 0.361 195.7 4 x 0.1672 3 x 0.1672 0.502 99.1 4.247 12.74 274 2130 0.310 4/0 4 x 0.1739 3 x 0.1739 0.522 107 4.417 13.25 297 2300 0.286 246.9 4 x 0,1878 3 x 0.1878 0.563 125 4.770 14.31 346 2682 0.245 250 15 x 0.1147 4 x 0.1147 0.574 127 2.913 14.56 350 2430 0.235 250 12 x 0.1147 7 x 0.1147 0.574 127 2.913 14.56 350 2750 0.240 300 15 x 0.1257 4 x 0.1257 0.629 152 3.193 15.96 420 2885 0.195 300 12 x 0.1257 7 x 0.1257 0.629 152 3.193 15.96 420 3275 0.200 350 15 x 0.1357 4 x 0.1357 0.679 177 3.447 17.24 490 3315 0.168 350 12 x 0.1357 7 x 0.1357 0.679 177 3.447 17.24 490 3735 0.172 400 15 x 0.1451 4 x 0.1451 0.726 203 3.685 18.44 560 3745 0.147 400 12 x 0.1451 7 x 0.1451 0.726 203 3.685 18.44 560 4230 0.135 450 15 x 0.1539 4 x 0.1539 0.770 228 3.909 19.55 630 4150 0.130 450 12 x 0.1539 7 x 0.1539 0.770 228 3.909 19.55 630 4710 0.133 500 15 x 0.1622 4 x 0.1622 0.811 253 4.120 20.60 700 4620 0.117 500 12 x 0.1622 7 x 0.1622 0.811 253 4.120 20.60 700 5240 0.120 500 33 x 0.1162 4 x 0.1162 0.813 253 2.951 20.65 700 4440 0.116 500 30 x 0.1162 7 x 0.1162 0.813 253 2.951 20.65 700 4795 0.117 500 24 x 0.1162 13 x 0.1162 0.813 253 2.951 20.65 700 5285 0.120 500 18 x 0.1162 19 x 0.1162 0.813 253 2.951 20.65 700 5860 0.123 550 15 x 0.1701 4 x 0.1701 0.851 279 4.321 21.66 770 5060 0.107 550 12 x 0.1701 7 x 0.1701 0.851 279 4.321 21.66 770 5770 0.110 550 33 x0.1219 4 x 0.1219 0.853 279 2.951 21.66 770 4800 0.105 550 30 x0,1219 7 x 0.1219 0.853 279 2.951 21.66 770 5195 0.106 550 24 x0.1219 13 x 0.1219 0,853 279 2.951 21.66 770 5730 0.109 550 18 x0.1219 19 x 0.1219 0.853 279 2.951 21.66 770 6395 0.111 600 15 x0.1777 4 x 0.1777 0.889 304 4.513 22.58 840 5550 0.097 600 12 x0.1777 7 x 0.1777 0.889 304 4.513 22.58 840 6260 0.100 600 33 x0.1273 4 x 0.1273 0.891 304 3.230 22.63 840 5240 0.096 600 30 x0.1273 7 x 0.1273 0.891 304 3,230 22.63 840 5680 0.097 600 24 x0.1273 13 x 0.1273 0.891 304 3.230 22.63 840 6260 0.100 600 18 x0.1273 19 x 0.1273 0.891 304 3.230 22.63 840 7020 0.102 650 33 x0.1325 4 x 0.1325 0.928 329 3.360 23.57 910 5680 0.089 650 30 x0.1325 7 x 0.1325 0.928 329 3.360 23.57 910 6130 0.090 650 24 x0.1325 13 x 0.1325 0.928 329 3.360 23.57 910 6800 0.092 650 18 x0.1325 19 x 0.1325 0.928 329 3.360 23.57 910 7600 0.095 700 33 x0,1375 4 x 0.1375 0.963 355 3.490 24.46 980 6040 0.083 700 30 x0.1375 7 x 0.1375 0.963 355 3.490 24.46 980 6530 0.084 700 24 x0.1375 13 x 0.1375 0.963 355 3.490 24.46 980 7150 0.086 700 18 x0.1375 19 x 0.1375 0.963 355 3.490 24.46 980 7950 0.088 750 33 x0.1424 4 x 0.1424 0.997 380 3.620 25.32 1050 6400 0.077 750 30 x0.1424 7 x 0.1424 0.997 380 3.620 25.32 1050 6930 0.078 750 24 x0.1424 13 x 0.1424 0.997 380 3.620 25.32 1050 7600 0.080 750 18 x0.1424 19 x 0.1424 0.997 380 3,620 25.32 1050 8440 0.082 800 33 x0.147 4 x 0.1470 1.029 405 3.730 26.15 1120 6800 0.072 800 30 x0.147 7 x 0,1470 1.029 405 3.730 26.15 1120 7370 0.073 800 24 x0.147 13 x 0.1470 1.029 405 3.730 26.15 1120 8080 0.075 800 18 x0.147 19 x 0.1470 1.029 405 3.730 26.15 1120 9010 0.077 850 33 x0.1516 4 x 0.1516 1,061 431 3.850 26.95 1190 7100 0.068 850 30 x0.1516 7 x 0.1516 1.061 431 3.850 26.95 1190 7720 0.069 850 24 x0.1516 13 x 0.1516 1.061 431 3.850 26.95 1190 8530 0.071 850 18 x0.1516 19 x 0.1516 1.061 431 3.850 26.95 1190 9500 0.072 900 33 x0.156 4 x 0.1560 1.092 456 3.960 27.75 1260 7550 0.064 900 30 x0.156 7 x 0.1560 1.092 456 3.960 27.75 1260 8170 0.065 900 24 x0.156 13 x 0.1560 1.092 456 3.960 27.75 1260 9015 0.067 900 18 x0.156 19 x 0,1560 1.092 456 3.960 27.75 1260 9950 0.068 950 33 x0. 1602 4 x 0.1602 1.121 481 4.07 28.50 1330 7950 0.061 950 30 x0.1602 7 x 0.1602 1.121 481 4.07 28.50 1330 8610 0.062 950 24 x0.1602 13 x 0.1602 1.121 481 4.07 28.50 1330 9500 0.063 950 18 x0.1602 19 x 0.1602 1.121 481 4.07 28.50 1330 10610 0.065 1000 33 x0.1644 4 x 0.1644 1.151 507 4.17 29.30 1400 8390 0.058 1000 30 x0.1644 7 x 0.1644 1.151 507 4.17 29.30 1400 9060 0.059 1000 24 x0.1644 13 x 0.1644 1.151 507 4.17 29.30 1400 10030 0.060 1000 18 x0.1644 19 x 0.1644 1.151 507 4.17 29.30 1400 11190 0.061 1000 54 x0.128 7 x 0.1280 1.152 507 3.25 29.32 1397 8750 0.058 1000 48 x0.128 13 x 0.1280 1.152 507 3.25 29.32 1397 9370 0.059 1000 42 x0.128 19 x 0.1280 1.152 507 3.25 29.32 1397 10170 0.060 1000 33 x0.128 28 x 0.1280 1.152 507 3.25 29.32 1397 12210 0.061 1100 33 x0.1724 4 x 0.1724 1.207 557 4.38 30.65 1540 9190 0.053 1100 30 x0.1724 7 x 0.1724 1.207 557 4.38 30.65 1540 9990 0.053 1100 24 x0.1724 13 x 0.1724 1.207 557 4.38 30.65 1540 11010 0.054 1100 18 x0.1724 19 x 0.1724 1.207 557 4.38 30.65 1540 12300 0.056 1100 54 x0.1343 7 x 0.1343 1.209 557 3.41 30.70 1540 9590 0.053 1100 48 x0.1343 13 x 0.1343 1.209 557 3.41 30.70 1540 10170 0.054 1100 42 x0.1343 19 x 0.1343 1.209 557 3.41 30.70 1540 11010 0.055 1100 33 x0.1343 28 x 0.1343 1.209 557 3.41 30.70 1540 11810 0.055 1200 33 x0.1801 4 x 0.1801 1.261 608 4.57 32-00 1680 10030 0.048 1200 30 x0.1801 7 x 0.1801 1.261 608 4.57 32.00 1680 10880 0.049 1200 24 x0.1801 13 x 0.1801 1.261 608 4.57 32.00 1680 12035 0.050 1200 18 x0.1801 19 x 0.1801 1.261 608 4.57 32.00 1680 13400 0.051 1200 54 x0.1403 7 x 0.1403 1.263 608 3.56 32.10 1680 10260 0.048 1200 48 x0.1403 13 x 0.1403 1.263 608 3.56 32.10 1680 10970 0.049 1200 42 x0.1403 19 x 0.1403 1.263 608 3.56 32.10 1680 11860 0.050 1200 33 x0.1403 28 x 0.1403 1.263 608 3.56 32.10 1680 12790 0.051 1250 33 x0.1838 4 x 0.1838 1.287 633 4.67 32.70 1750 10480 0.046 1250 30 x0.1838 7 x 0.1838 1.287 633 4.67 32.70 1750 11370 0.047 1250 24 x0.1838 13 x 0.1838 1.287 633 4.67 32.70 1750 12520 0.048 1250 18 x0.1838 19 x 0.1838 1.287 633 4.67 32.70 1750 13990 0.049 1250 54 x0.1431 7 x 0.1431 1,288 633 3.63 32.72 1750 10700 0.046 1250 48 x0.1431 13 x 0.1431 1.288 633 3.63 32.72 1750 11400 0.047 1250 42 x0.1431 19 x 0.1431 1.288 633 3.63 32.72 1750 12340 0.048 1250 33 x0.1431 28 x 0.1431 1.288 633 3.63 32.72 1750 13320 0.049 1300 33 x0.1874 4 x 0.1874 1.312 659 4.76 33.33 1820 10880 0.044 1300 30 x0.1874 7 x 0.1874 1.312 659 4.76 33.33 1820 11810 0.045 1300 24 x0.1874 13 x 0.1874 1.312 659 4.76 33.33 1820 13000 0.046 1300 18 x 0.1874 19 x 0,1874 1.312 659 4.76 33.33 1820 14520 0.047 1300 54 x 0.1460 7 x 0.1460 1.314 659 3.71 33.38 1825 11150 0.044 1300 48 x 0.1460 13 x 0.1460 1.314 659 3.71 33.38 1825 11900 0,045 1300 42 x 0.1460 19 x 0.1460 1.314 659 3.71 33.38 1825 12830 0.046 1300 33 x 0.1460 28 x 0.1460 1.314 659 3.71 33.38 1825 13850 0.047 1400 54 x 0.1515 7 x 0.1515 1.364 709 3.85 34.65 1960 11770 0.041 1400 48 x 0.1515 13 x 0.1515 1.364 709 3.85 34.65 1960 12600 0.042 1400 42 x 0.1515 19 x 0.1515 1.364 709 3.85 34.65 1960 13670 0.043 1400 33 x 0.1515 28 x 0.1515 1.364 709 3.85 34.65 1960 14790 0.044 1500 54 x 0.1568 7 x 0.1568 1.411 760 3.98 35.85 2100 12610 0.039 1500 48 x 0.1568 13 x 0.1568 1.411 760 3.98 35.85 2100 13500 0.0395 1500 42 x 0.1568 19 x 0,1568 1.411 760 3.98 35.85 2100 14650 0.040 1500 33 x 0.1568 28 x 0.1568 1.411 760 3.98 35.85 2100 15850 0.041 1600 54 x 0.1620 7 x 0.1620 1.458 811 4.11 37.05 2240 13500 0.036 1600 48 x 0.1620 13 x 0.1620 1.458 811 4.11 37.05 2240 14430 0.037 1600 42 x 0.1620 19 x 0.1620 1.458 811 4.11 37.05 2240 15630 0.037 1600 33 x 0.1620 28 x 0.1620 1.458 811 4.11 37.05 2240 16920 0.038 1700 54 x 0.1669 7 x 0.1669 1.502 861 4.24 38.15 2380 14300 0.034 1700 48 x 0.1669 13 x 0.1669 1.502 861 4.24 38.15 2380 15320 0.0345 1700 42 x 0.1669 19 x 0. 1669 1.502 861 4.24 38.15 2380 16610 0.035 1700 33 x 0.1669 28 x 0.1669 1.502 861 4.24 38.15 2380 17990 0.036 1750 54 x 0.1694 7 x 0.1694 1.525 887 4.30 38.75 2450 14750 0.033 1750 48 x 0.1694 13 x 0.1694 1.525 887 4.30 38.75 2450 15760 0.0335 1750 42 x 0.1694 19 x 0.1694 1.525 887 4.30 38.75 2450 17100 0.034 1750 33 x 0.1694 28 x 0.1694 1.525 887 4.30 38.75 2450 18520 0.035 1800 54 x 0,1718 7 x 0.1718 1.546 912 4.36 39.30 2520 15140 0.032 1800 48 x 0. 1718 13 x 0.1718 1.546 912 4.36 39.30 2520 16210 0.0325 1800 42 x 0.1718 19 x 0.1718 1.546 912 4.36 39.30 2520 17590 0.033 1800 33 x 0.1718 28 x 0.1718 1.546 912 4.36 39.30 2520 19050 0.034 1900 54 x 0.1765 7 x 0.1765 1.589 963 4.48 40.35 2660 15990 0.0305 1900 48 x 0.1765 13 x 0.1765 1.589 963 4.48 40.35 2660 17140 0.031 1900 42 x 0.1765 19 x 0.1765 1.589 963 4.48 40.35 2660 18560 0.0315 1900 33 x 0.1765 28 x 0.1765 1.589 963 4.48 40.35 2660 20120 0.032 2000 54 x 0.1811 7 x 0.1811 1.630 1013 4.60 41.40 2800 16830 0.029 2000 48 x 0.1811 13 x 0.1811 1.630 1013 4.60 41.40 2800 18030 0.0295 2000 42 x 0.1811 19 x 0,1811 1.630 1013 4.60 41.40 2800 19540 0.030 2000 33 x 0.1811 28 x 0.1811 1.630 1013 4.60 41.40 2800 21140 0.0305 2000 72 x 0.1482 19 x 0.1482 1.630 1013 3.76 41.40 2795 18210 0.0295 2000 63 x 0.1482 28 x 0.1482 1.630 1013 3.76 41.40 2795 19275 0.0300 2000 54 x 0.1482 37 x 0.1482 1.630 1013 3.76 41.40 2795 20695 0.0305 2250 72 x 0.1572 19 x 0.1572 1.729 1140 3.99 43.90 3175 20200 0.0265 2250 63 x 0.1572 28 x 0.1572 1.729 1140 3.99 43.90 3175 21450 0.0267 2250 54 x 0.1572 37 x 0.1572 1.729 1140 3.99 43.90 3175 23050 0.0270 2500 72 x 0.1657 19 x 0.1657 1.823 1267 4.21 46.30 3530 22470 0.0230 2500 63 x 0.1657 28 x 0.1657 1.823 1267 4.21 46.30 3530 23850 0.0240 2500 54 x 0.1657 37 x 0.1657 1.823 1267 4.21 46.30 3530 25625 0.0245 2750 72 x 0. 1738 19 x 0.1738 1.912 1393 4.41 48.55 3880 24690 0.0215 2750 63 x 0.1738 28 x 0.1738 1.912 1393 4.41 48.55 3880 26200 0.0220 2750 54 x 0.1738 37 x 0.1738 1.912 1393 4.41 48.55 3880 28200 0.0222 3000 72 x 0.1816 19 x 0.1816 1.998 1520 4.61 50.75 4240 26950 0.0197 3000 63 x 0.1816 28 x 0.1816 1.998 1520 4.61 50.75 4240 28640 0.0200 3000 54 x 0,1816 37 x 0.1816 1.998 1520 4.61 50.75 4240 30770 0.0203

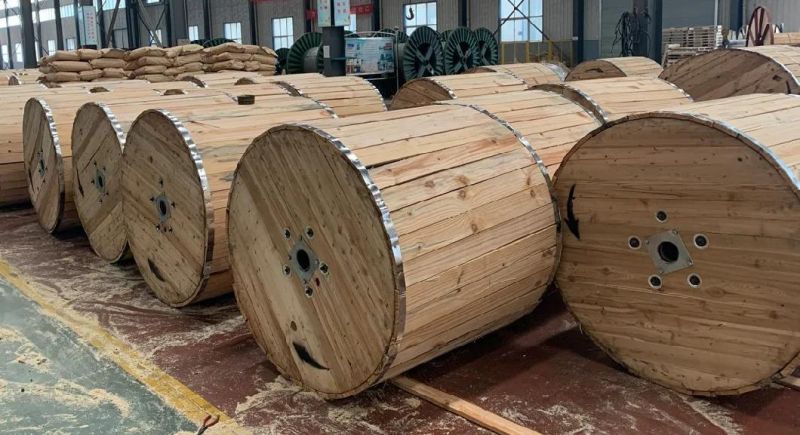

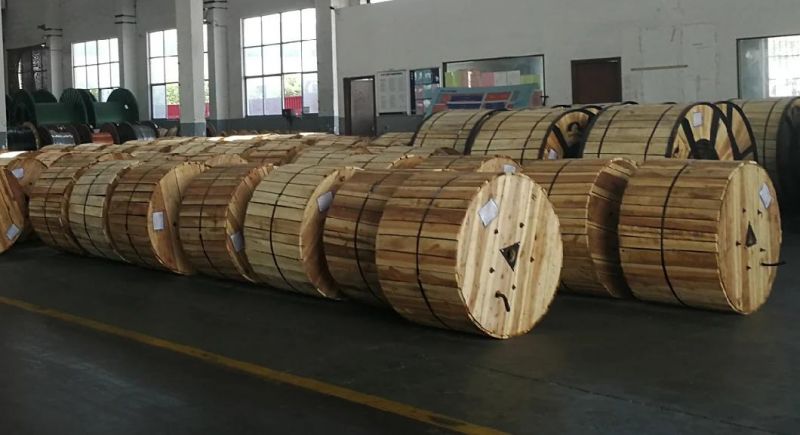

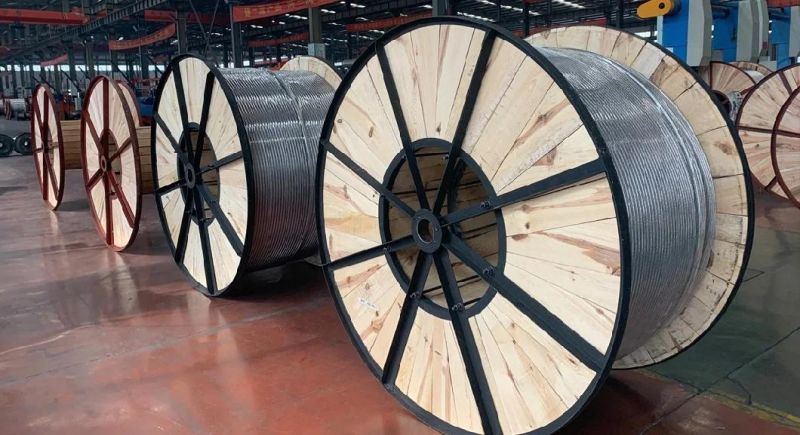

Packaging Photos:

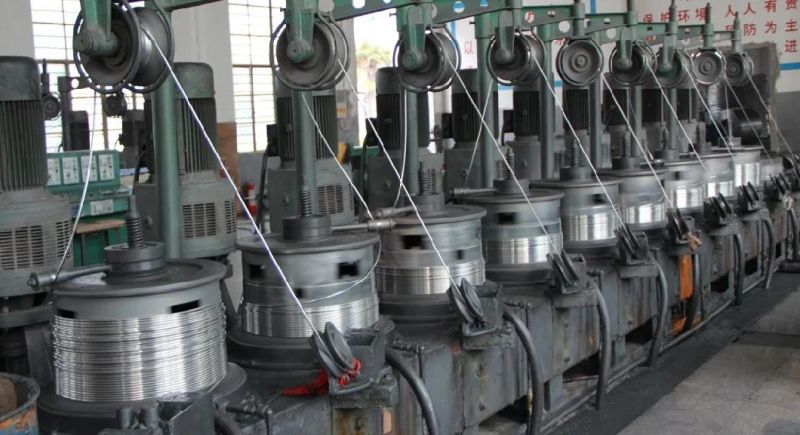

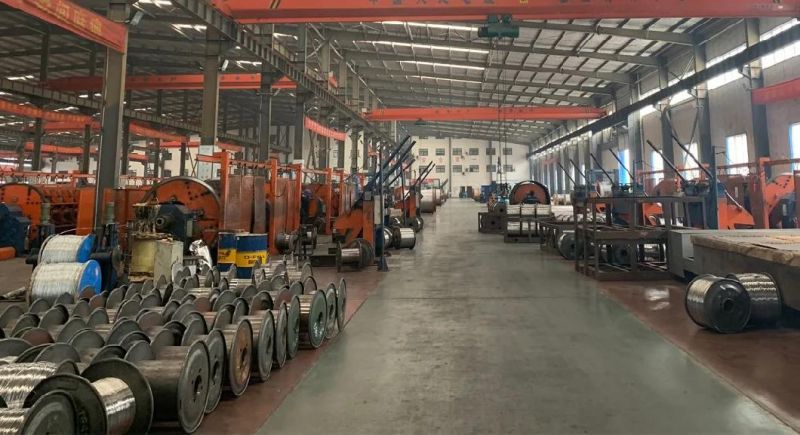

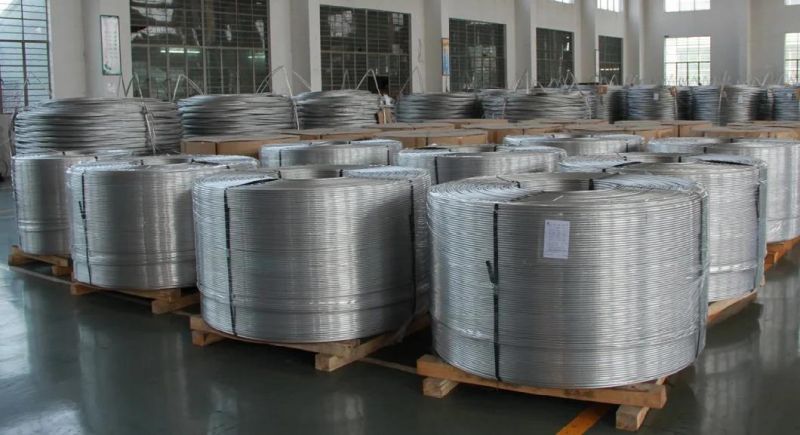

Workshop View
About us:
Jiangsu Grand Cable Co., Ltd. was founded in 2002 with a registered capital of 308.88 million CNY(equivalent to 44.13 million USD). The company is located at Section B, Guanlin Industrial ConcentratedArea, Yixing, Wuxi City, Jiangsu 214251, P.R. China, covering an area of 130,000 squaremeters .It owns total assets of 100 million CNY and more than 500 staff members. The annualproduction capacity reaches 2.5 billion CNY .It is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises of Jiangsu Province, the Private Technology Enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System,ISO14001 Environment Management System Certificate and OHSAS 18001 Occupational Health and Safety Management System Certificate.
With more than 300 sets of first-class domestic and imported manufacture and test equipment,Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables(LV/MV/EHV), Special Cables.
FAQ:
Packaging Photos:
Workshop View
About us:
Jiangsu Grand Cable Co., Ltd. was founded in 2002 with a registered capital of 308.88 million CNY(equivalent to 44.13 million USD). The company is located at Section B, Guanlin Industrial ConcentratedArea, Yixing, Wuxi City, Jiangsu 214251, P.R. China, covering an area of 130,000 squaremeters .It owns total assets of 100 million CNY and more than 500 staff members. The annualproduction capacity reaches 2.5 billion CNY .It is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises of Jiangsu Province, the Private Technology Enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System,ISO14001 Environment Management System Certificate and OHSAS 18001 Occupational Health and Safety Management System Certificate.
With more than 300 sets of first-class domestic and imported manufacture and test equipment,Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables(LV/MV/EHV), Special Cables.
FAQ:
Q: How long does it take get my inquiry replied?
A: Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you in 1-3 days. It depends on the technical parameters and requirements of the cable. We will give you a reasonable and accurate quote.
Q: Can I get samples before placing the order?
A: You will get a sample for free if we have the storage of that cable.
Q: What's the MOQ of your product?
A: The MOQ of our most product is 1000 meters. But if there's any exceptional situation, we can make some negotiations.
Fore More Information, Please do feel free to contact us!
