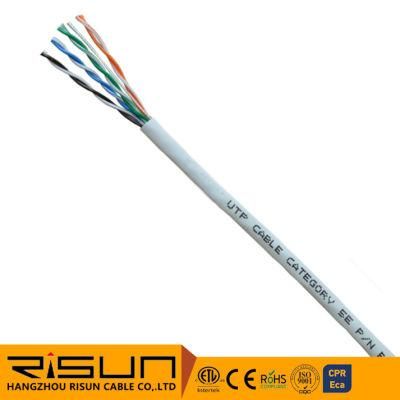

• Model NO.：UTP Cat6
• Certification：CE, ISO, RoHS
• Insulation Material：HDPE
• Ripcord：500d
• Filler：Yes
• UV：Available
• Waterproof：Available
• Frame Returdant：Available
• No.of Conductor：8 Core, 4pairs
• Indoor/Outdoor：PVC,PE,PVC+PE,PVC+PVC
• N.W.：8.5kgs
• G.W.：10kgs
• Color：Grey, White or According Customer Requirement
• Transport Package：305m,Pull Box, 2 Pull Box,CTN.
• Specification：ETL, CE, RoHS, SGS, ISO9001
• Trademark：Risun or OEM
• Origin：Hangzhou, Zhejiang, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes Per Month

U/UTP CAT6 solidConductor23AWG Bare Copper   0.57±0.02mm  99.99% Bare Copper/CCAInsulation1.00±0.02mm HDPEInsulation nominal dimension 1.00 mmCores/Pairs8/4SeperatorPESheath6.2±0.2mm PVC(PE,LSZH)Overall nominal dimension 6.6 mmColorGrey, White or according customer requirementPackage305M/1000ft, Wooden Reel, Carton, PalletDelivery timeNormally 25 days after received the deposit.Application100Base-T4; 100Base-TX
100VG-AnyLAN; 1000 Base-T
1000Base-TX; HDBaseT
155Mbps ATM; 622Mbps ATM
10 Gb Ethernet

Electrical characteristics:Nom. mutual capacitance<=5.6 nF/100m (@1kHz)Pair to ground capacitance<=330 pF/100MNominal velocity of propagation67%Max. delay skew45ns/100mMax. conductor DC resistance93.8Ω/km (@ 20 ºC)Max. Conductor resistance5% (@ 20°C)Min. insulation resistance5000 MΩ/kmMax. operating voltage - UL300 V

Mechanical characteristics:Operating temperature range-20°C ~ +75°CBulk cable nominal weight47 kg/kmMax. recommended pulling110 N Min. bend radius (Install)4 x O.D.Outer jacket tensile strength>=8.3 MPaOuter jacket elongation>= 100%Outer jacket aging condition100 ºC x 168 hrsAfter aging, Tensile strength>=75% of unagingAfter aging, Elongation>=75% of unagingCold bendNo crack (@ -20ºC x 4hrs)

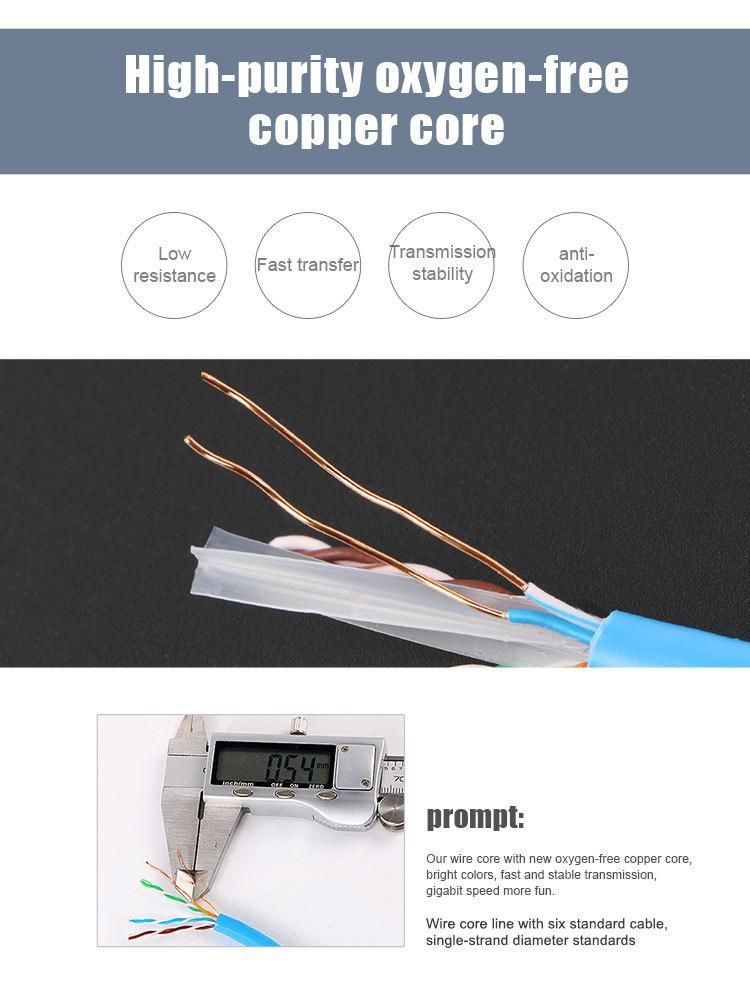

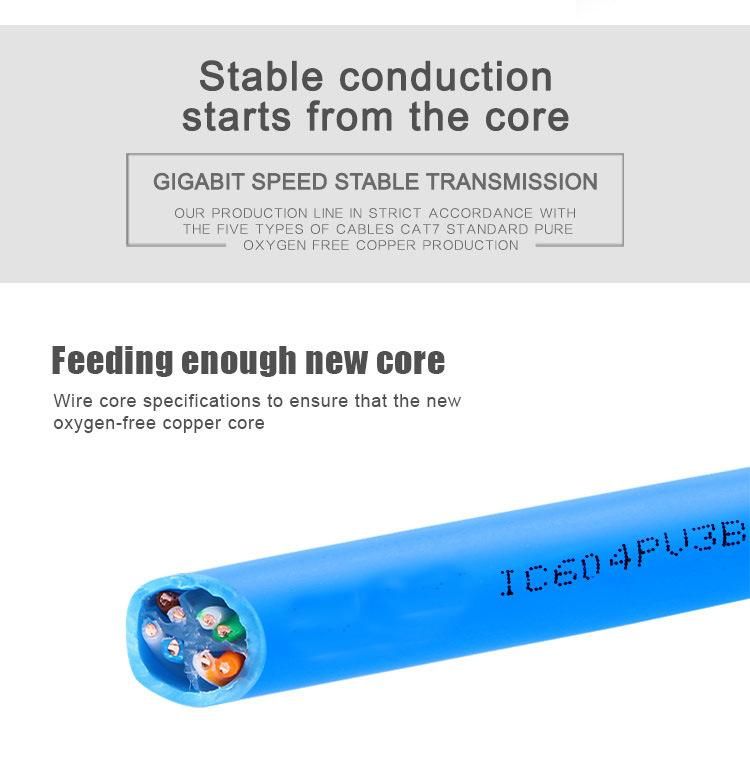

Details Images:










Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.



Packing&Shipping:













Why Choose Us:



FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
