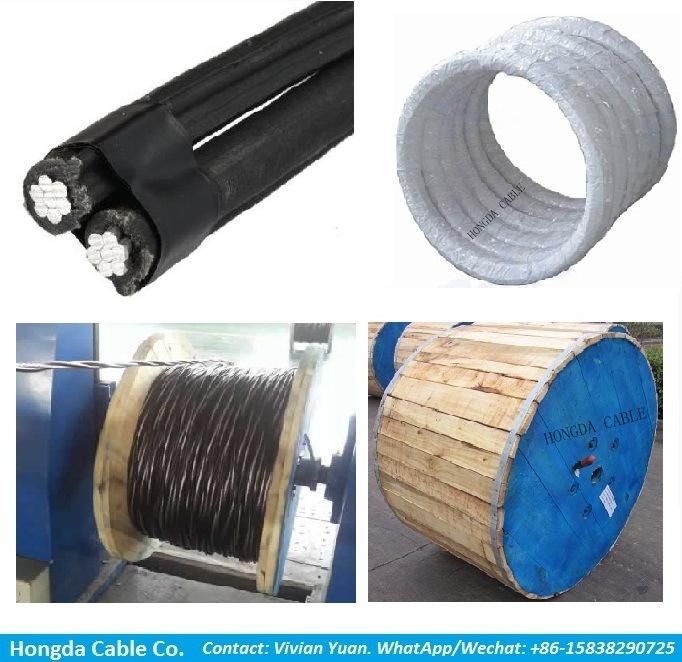

Two Core 600/1000 V 16 mm2 Insulated Twisted Service Cable
Henan Hongda Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：Crosslinking
- Insulation Material：XLPE
Base Info
- Model NO.：Twisted Service Cable
- Material Shape：Round Wire
- Range of Application：Service Entrance Cable
- Certification：ISO9001, CCC, SGS
- Brand：Hongda
- Rated Voltage：600,1000V
- Construction：AAC , XLPE or PE
- Service：OEM, ODM

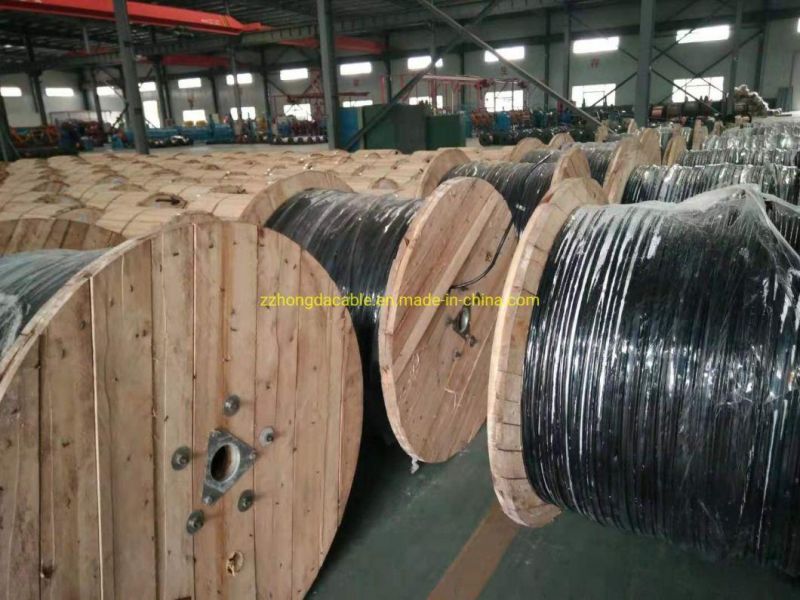

- Transport Package：1000m Per Drum, 5000m Per Drum
- Specification：2x16mm2 abc cable
- Trademark：Hongda, or OEM
- Origin：China
- HS Code：8544492100
- Production Capacity：25000km,Year
Description
- Number of cores
- Conductor cross-section
- Pilot wires
- Conductor diameter
- Insulation sheath thickness
- Nominal overall diameter
- Approximate weight
- Minimum breaking load
Two Core 600/1000 V 16 mm2 Insulated Twisted Service Cable
| No. of cores and cross-section | Shape of conductor | Nominal insulation thickness | Diameter approx. | Cable mass approx. | Bending radius | DC resistance at 20 °C (min.) | Current carrying cap. in air |
| mm2 | mm | mm | kg/km | mm | ohm/km | A | |
| 2x16 | RMV | 1.2 | 14 | 131 | 168 | 1.91 | 59 |
| 2x25 | RMV | 1.4 | 17 | 200 | 204 | 1.2 | 85 |
| 2x35 | RMV | 1.4 | 20 | 267 | 240 | 0.868 | 106 |
| 3x16 | RMV | 1.2 | 16 | 198 | 192 | 1.91 | 59 |
| 3x25 | RMV | 1.4 | 19 | 301 | 228 | 1.2 | 85 |
| 3x35 | RMV | 1.4 | 21 | 402 | 252 | 0.868 | 106 |
| 4x16 | RMV | 1.2 | 17 | 265 | 204 | 1.91 | 59 |
| 4x25 | RMV | 1.4 | 21 | 403 | 252 | 1.2 | 85 |
| 4x35 | RMV | 1.4 | 24 | 537 | 288 | 0.868 | 106 |
| 4x50 | RMV | 1.6 | 27 | 707 | 324 | 0.641 | 133 |
| 4x70 | RMV | 1.6 | 31 | 971 | 372 | 0.443 | 170 |
| 4x95 | RMV | 1.8 | 37 | 1322 | 444 | 0.32 | 196 |
| 4x120 | RMV | 1.8 | 40 | 1620 | 480 | 0.253 | 240 |
| 4x50+16 | RMV | 1.6/1.2 | 27 | 772 | 324 | 0.641 | 133 |
| 4x50+25 | RMV | 1.6/1.4 | 27 | 807 | 324 | 0.641 | 133 |
| 4x70+16 | RMV | 1.6/1.2 | 31 | 1036 | 372 | 0.443 | 170 |
| 4x70+25 | RMV | 1.6/1.4 | 31 | 1071 | 372 | 0.443 | 170 |
| 4x95+16 | RMV | 1.8/1.2 | 37 | 1387 | 444 | 0.32 | 196 |
| 4x95+25 | RMV | 1.8/1.4 | 37 | 1422 | 444 | 0.32 | 196 |
| 4x120+16 | RMV | 1.8/1.2 | 40 | 1685 | 480 | 0.253 | 240 |
| 4x120+25 | RMV | 1.8/1.4 | 40 | 1719 | 480 | 0.253 | 240 |
This data was prepared for informational purposes only and does not contain any representations, legally binding declarations or guarantees. Contractual obligations shall only come into effect after a written contract, detailing the terms and conditions, has been signed. A liability of Hongda cables for the correctness of the information contained herein is excluded. The data shall not be handed out to third parties or disclosed in public documents. Any intellectual property rights remain with Hongda cables and are reserved.
More question and inquiry, please contact with Vivian Yuan
