• Model NO.：ACSR
• Material Shape：Round Wire
• Range of Application：Overhead, Underground
• Certification：ISO9001, CE, UL, CCC
• Brand：Yari
• Color：Silver
• Warranty：12 Months
• Transport Package：Wooden Drum,Wooden Steel Drum,Rolls
• Specification：as customer request
• Trademark：YaRi
• Origin：China Mainland
• HS Code：76149000
• Production Capacity：50000 Meters Per Day

Basic Info.

Model NO. ACSR Material Shape Round Wire Range of Application Overhead, Underground Certification ISO9001, CE, UL, CCC Brand Yari Color Silver Warranty 12 Months Transport Package Wooden Drum/Wooden Steel Drum/Rolls Specification as customer request Trademark YaRi Origin China Mainland HS Code 76149000 Production Capacity 50000 Meters Per Day

Product Description

Professional Cable manufacturer Aluminum Conductor Steel Reinforced


1. Applications

ACSR conductors have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

2.Service Performance

2.1.The permissible long-time operating temperature for aerial conductor is 70oC.

2.2.Under the circumstance that rare climate is occuring and ice coverage rate low in heavy ice area,the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.

2.3.When connecting conductors,the conductor beside the connecting tube cant be prominent.Otherwise,the force on the operating conductors will be unbalanced.After connectors are install,the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.

2.4.Under installaion,the arc downing stress of all the conductors should be the same.With in the permissible distance of crossing buildings or dropping to the ground,the stress can be 10-15% higher than regular stress.

3. Product Performance

3.1.The electrical performance of ACSR is indicated in DCΩ/km (20oC).The resistivity of the hard aluminum wire for stranded wires is not greater than 28.264 nΩ. m of international standard value.

3.2.The rated tensile strengh of ACSR is denoted with sum of all aluminum conductorstensile strength and steels tensile strength.

a.The tensile strength of all aluminum conductors is denoted with the result of all cross sections of aluminum conductors multiplied by min.tensile strength of corresponding size specified in the standard for aluminum wire.

b.The tensile strength of all steel wire is denoted with the result of all cross sections of steel wires multiplied by the stress at 1% elongation of corresponding size specified in the standard for steel wire.

4. Material Standard
4.1.The hard aluminum conductor used for ACSR conforms to the standard GB/T 1179-2008(equivalent to IEC 61089).

4.2.The zinc coated steel wire used for ACSR conforms to IEC 61089.

4.3.Production can be arranged according to customers requirements for material standard,etc.

Conductor (ACSR,AAC,ABC,AAAC ) have been widely used in power transmission lines with various voltage, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.
Standards:
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997 (equivalent to IEC 60889:1987)
2) The zinc coated steel wire used for ACSR confirms to IEC 60888:1987
3) Production can be arranged according to customers' requirement such as material standard etc.
4) We can also produce products according to the Standard of BS215, ASTM B232, and DIN48204.

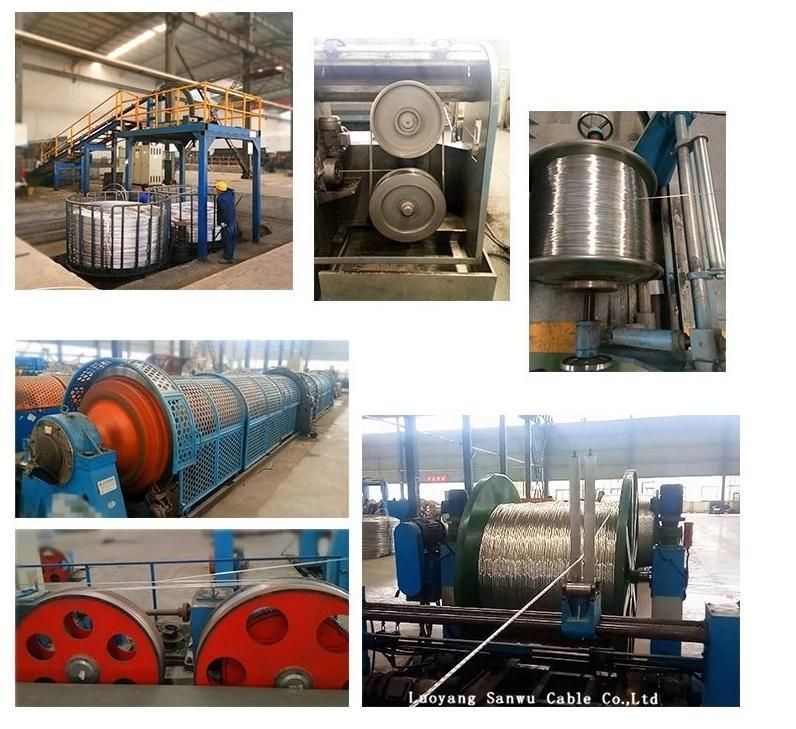

Producing Process:

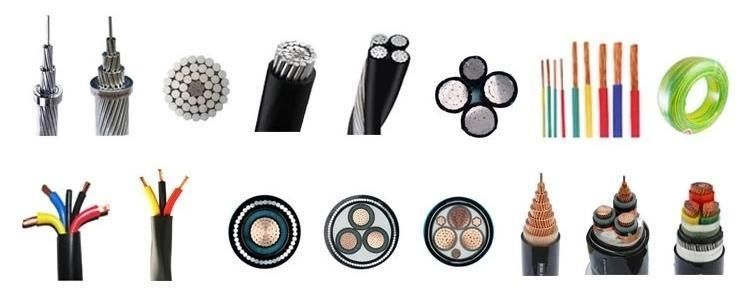

More Products:

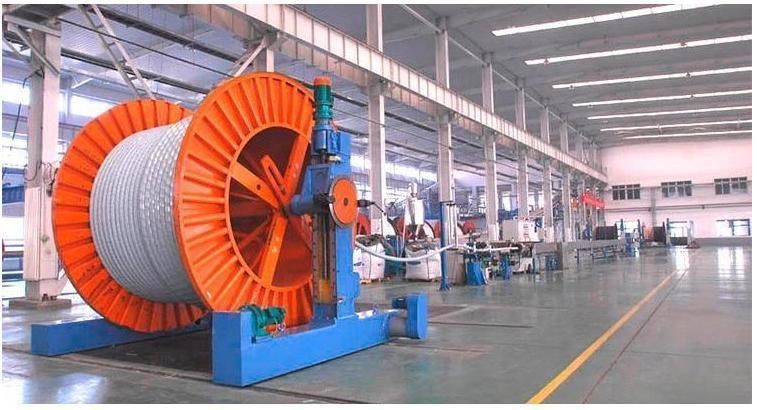

Our Workshop

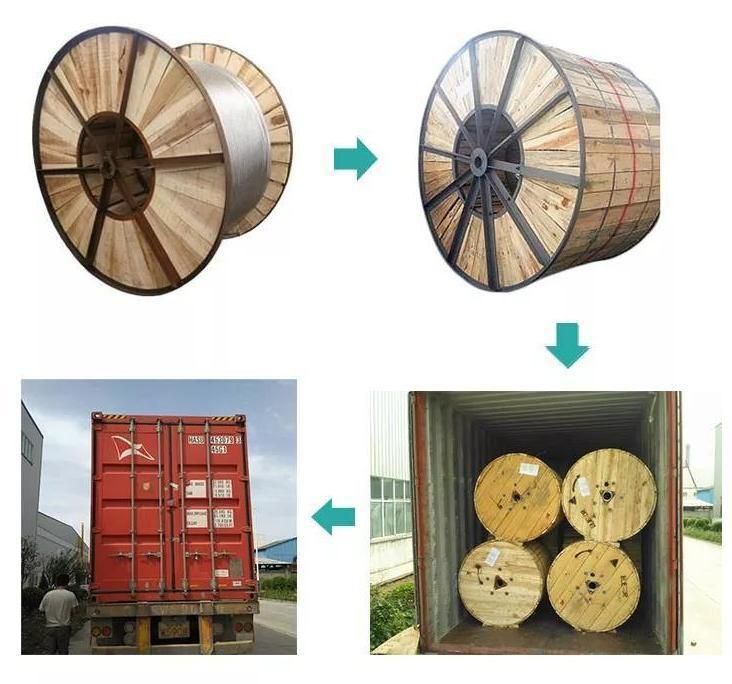

Packing & Delivery
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.;
20GP, 40GP and 40HQ containers

Customer Visit

Luoyang Asian Sun Wire & Cable Co., Ltd.

Luoyang Asian Sun Wire & Cable Co., Ltd., founded in 2006 and located in the Industrial Cluster area of Yichuan, Luoyang, covers an area of more than 60, 000 square meters, is an independent export-oriented enterprise, professionally engaged in design, manufacturing and trade.
We specialize in the production and supply Aluminum rod, Aluminum stranded cable, Bare conductor, Overhead insulated cable etc, OEM also accepted.
The expanded business of our Group includes industry, Hardware, electromagnetically device, new energy equipment and auxiliary products, as well as the manufacturing and trade of municipal rescue supporting materials.
Luoyang Asian Sun wire & cable has over 200 employees, five modern management workshops and 37 advanced production equipments, Aluminum rod annual output of 200, 000 tons and Cable products annual sales over 500 million.
We keep diverse products according to customer and market demand. With superior quality products, reasonable prices and quick delivery, our company has attained a great reputation among our customers. Our products are export to in America, Asia, Africa, Australia etc, more than 50 countries such as Canada, India, Pakistan, Thailand, Malaysia, Algeria, South Africa, Botswana, Mali, Senegal, Djibouti, Ethiopia, Egypt, Argentina, Australia, New Zealand, Russia, Bolivia, Georgia and etc. We welcome more friends to cooperate with us in the near future.
We regard integrity management and pursuit excellence principle as enterprise tenet, Eagle-like individual and Geese-like team as spirit, with reliable quality and efficient service, forever with you!

Certiificates:

FAQ:
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 20 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines, Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand ,Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What's the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers' requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C, O/A
