Double Core 2X16mm Na2xcy N2xcy Power Cables 0.6/1kv
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：NA2XCY N2XCY Power Cables
- Wire Core Material：Aluminum
- Certification：ISO, CCC
- Model：Yjlv
- Brand：Hongda
- Transport Package：Wooden
- Specification：4mm 6mm 10mm 16mm 25mm
- Trademark：hongda
- Origin：Henan,China
- HS Code：8544492100
- Production Capacity：20km,Day
Description
Basic Info.
Model NO. NA2XCY N2XCY Power Cables Wire Core Material Aluminum Certification ISO, CCC Model Yjlv Brand Hongda Transport Package Wooden Specification 4mm 6mm 10mm 16mm 25mm Trademark hongda Origin Henan/China HS Code 8544492100 Production Capacity 20km/DayProduct Description
STANDARDS
International : IEC 60228; IEC 60332-1-2; IEC 60502-1; IEC 60754-1; UIC 895National : NTP-IEC 60228; NTP-IEC 60502-1; SAE J-1127; UL 2556; UL 44
DESCRIPTION
Application:
In factories, substations or power plants where there is a lot of electrical noise or transiet, for control. measuring or signaling systems, for connection between the variable frequency drive (VFD) and the motor; reduce to electromagnetic interferences.

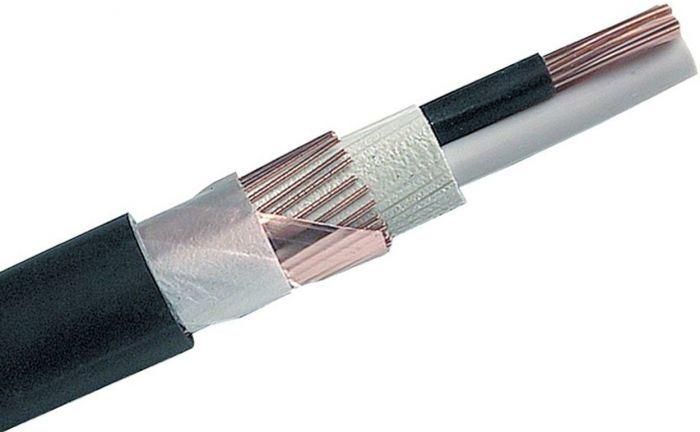

Construction:
1. Conductor: Flexible soft copper, class 5.
2. Insulation: Cross linked polyethylene XLPE.
3. Inner covering: Anti-flame compound polyvinyl chloride PVC.
5. Concentric conductor: Copper wires + Shield static (overlapped copper tape).
5. Outer sheath: Anti-flame compound polyvinyl chloride PVC.
Main characteristics:
Good electrical and mechanical properties. Cross-linked polyethylene insulation allows greater power capacity under any operating condition, minimum dielectric losses, high insulation resistance. Adequate resistance to abrasion and sunlight. Resistance to liquid fuels and oils according to UIC 895 OR. Resistance to sulfuric acid according to SAE J1127. Low halogen content according to IEC 60754-1. Resistant to gasoline GR I according to UL 44. Fire retardant.
Cross section:
From 50 mm2 up to 240 mm2.
Technical Characteristics
- Working voltage: 600/1000 volts
- Test voltage: 4000 volts
- Minimum bending radius: 15 x Ø
- Flexing temperature: -5º C to +70º C
- Fixed installation temperature: - 30º C to +70º C
- Short circuit temperature: +250º C
- Flame retardant: IEC 60332.1
- Insulation resistance: >20 MΩ x km

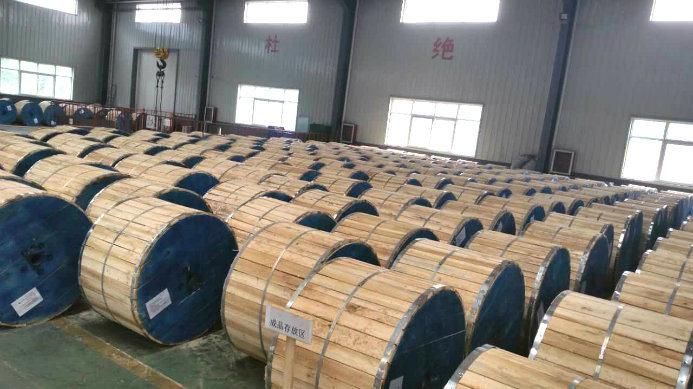

Packaging & Shipping
