F-Cy-Jz 4G 1.5 mm2 / 50mm2 PVC Low Voltage Electrical Cable 5g 35mm2 6g 1mm2

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：F-CY-JZ
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemF-CY-JZ 4G 1.5 mm2 / 50mm2 PVC Low Voltage Electrical Cable  5G 35mm2 6G 1mm2ConductorCopper wire bareInsulationPVC, compound type Z 7225WrappingFoilScreenBraided screen of tinned copper wires, approx. coverage 85%Outer SheathPVC Nominal voltageAC U0/U 300/500 VTest voltage core/core4000 VTest voltage core/screen2000 VBreakdown voltage8000 VTemperature RangeFlexible -15°C to +80°C
Fixed -40°C to +80°CColorOptionalCertificationCE

Properties

Largely resistant to: oil,For details, see "Technical Information"
The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquersApplicationFor flexible use with free movement without tensile stress or forced movements in dry, moist and wet rooms but not outside; to be used as control and connecting cable in control and regulation technology, in the tool and machine building industry, in computer systems, as well as a signal cable in the electronic industry. A stabilizing foil separator between wire bound and braid reduces the outer diameter essentially and allows for smaller bending radius as well as lower weights. The disturbance free transmission of signals and impulses is ensured due to the high degree of screening.

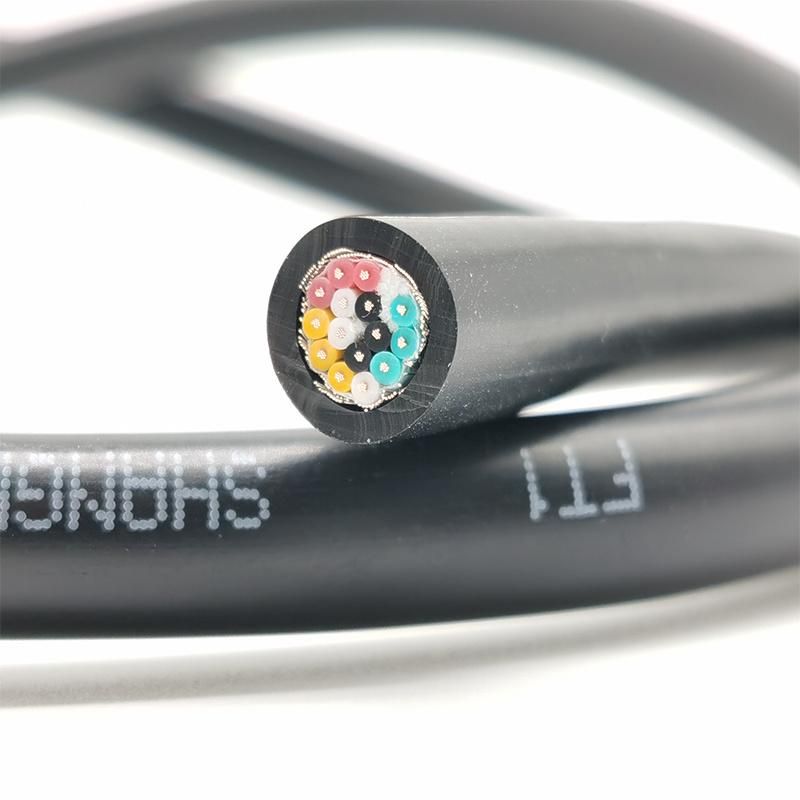

F-Cy-Jz 4G 1.5 mm2 / 50mm2 PVC Low Voltage Electrical Cable 5g 35mm2 6g 1mm2F-Cy-Jz 4G 1.5 mm2 / 50mm2 PVC Low Voltage Electrical Cable 5g 35mm2 6g 1mm2F-Cy-Jz 4G 1.5 mm2 / 50mm2 PVC Low Voltage Electrical Cable 5g 35mm2 6g 1mm2

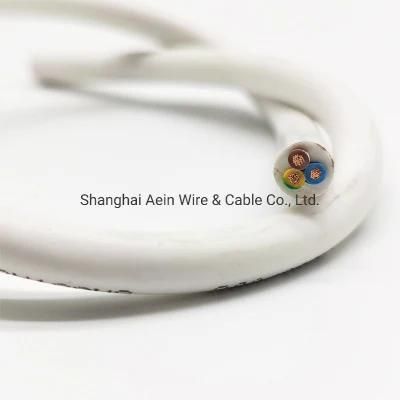

F-Cy-Jz 4G 1.5 mm2 / 50mm2 PVC Low Voltage Electrical Cable 5g 35mm2 6g 1mm2

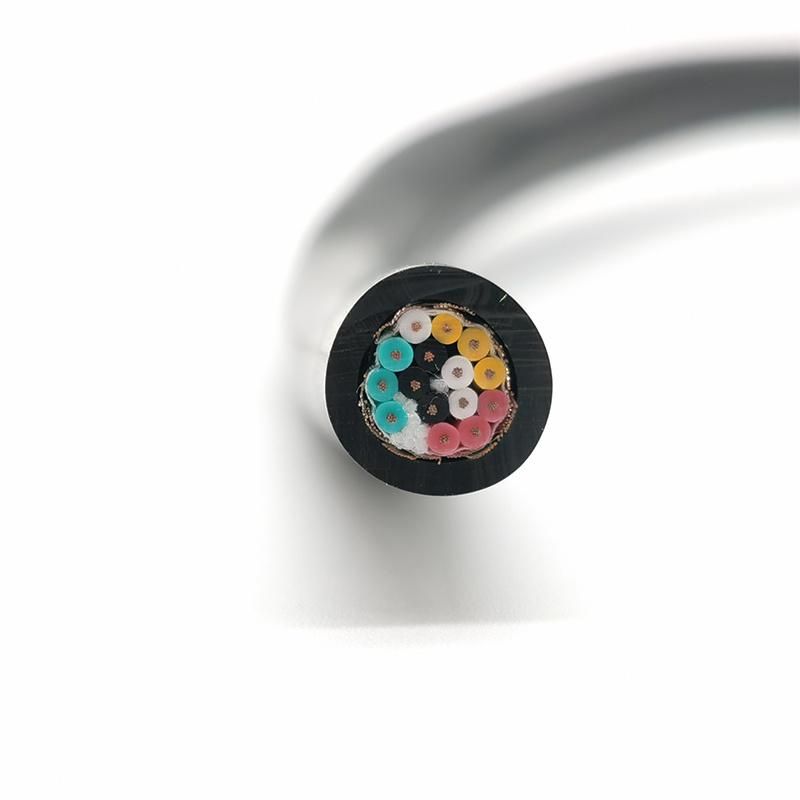

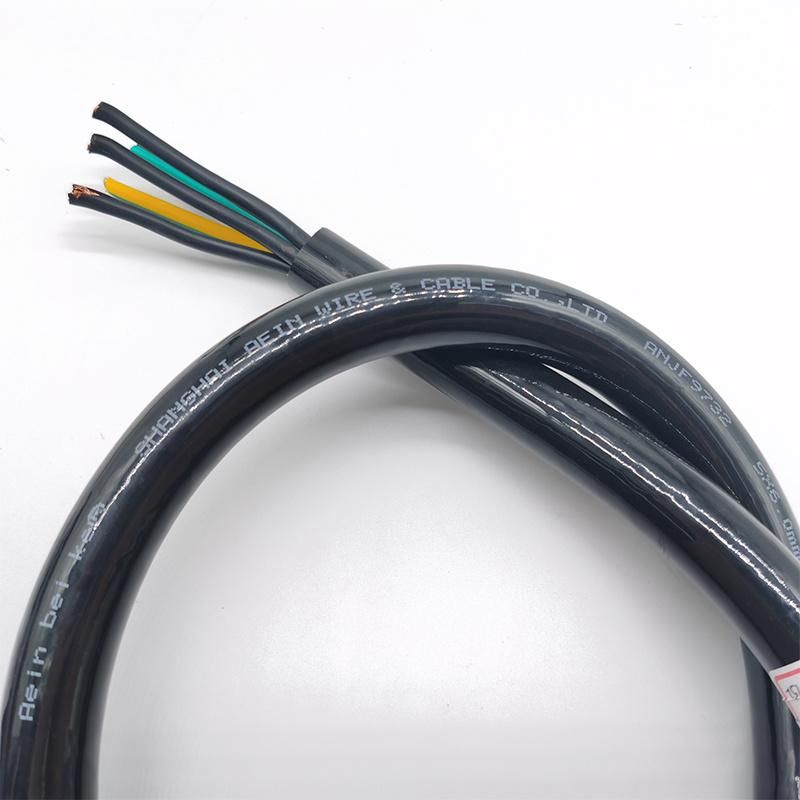

F-Cy-Jz 4G 1.5 mm2 / 50mm2 PVC Low Voltage Electrical Cable 5g 35mm2 6g 1mm2F-Cy-Jz 4G 1.5 mm2 / 50mm2 PVC Low Voltage Electrical Cable 5g 35mm2 6g 1mm2F-Cy-Jz 4G 1.5 mm2 / 50mm2 PVC Low Voltage Electrical Cable 5g 35mm2 6g 1mm2F-Cy-Jz 4G 1.5 mm2 / 50mm2 PVC Low Voltage Electrical Cable 5g 35mm2 6g 1mm2F-Cy-Jz 4G 1.5 mm2 / 50mm2 PVC Low Voltage Electrical Cable 5g 35mm2 6g 1mm2F-Cy-Jz 4G 1.5 mm2 / 50mm2 PVC Low Voltage Electrical Cable 5g 35mm2 6g 1mm2
