• Model NO.：25kV 750MCM copper cable
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, CE, Kema Certificate
• Brand：Yifang

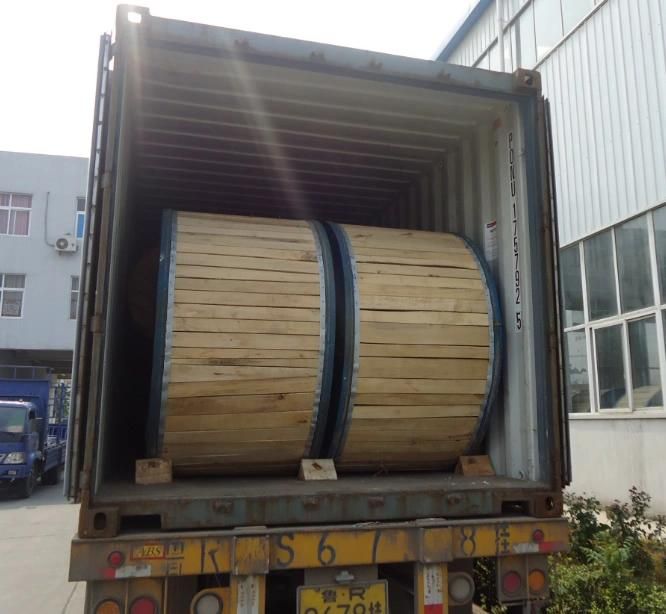

• Transport Package：Steel-Wood Drum, Reel, Steel Reel
• Trademark：Yifang brand
• Origin：China
• Production Capacity：500km,Month

Basic Info.

Model NO. 25kV 750MCM copper cable Wire Core Material Red Copper Wire Certification ISO, CCC, CE, Kema Certificate Brand Yifang Transport Package Steel-Wood Drum, Reel, Steel Reel Trademark Yifang brand Origin China Production Capacity 500km/Month

Product Description

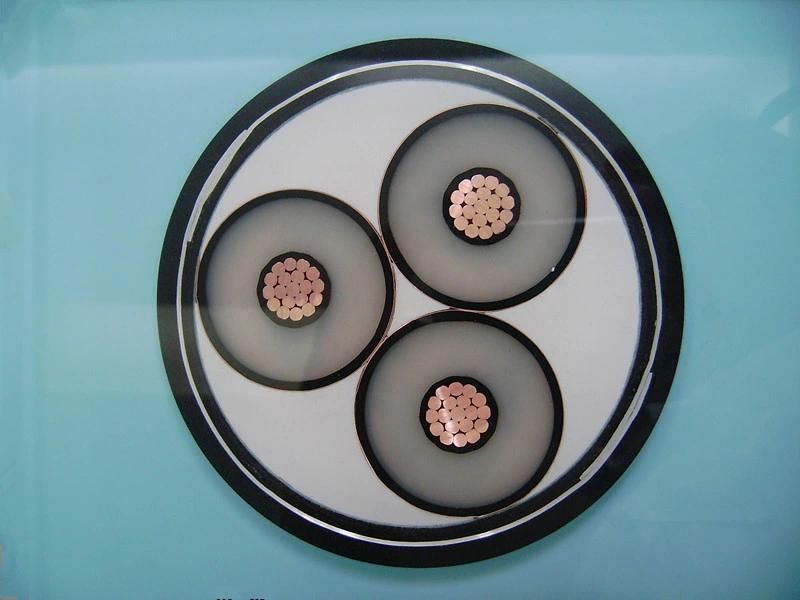

25kV 750MCM XLPE Insulated Armoured copper power cable ICEA S-93-639/NEMA WC 74 standard

Applications:
Primary power and distribution circuits in industrial and commercial installations. May be used in wet or dry locations, where exposed or concealed, installed in cable trays, raceways, duct, and open air, aerially or directly buried. In hazardous (classified) locations Class I, Division 2, as permitted by NEC.

1. Conductor:

Soft annealed uncoated copper compacted Class B per ASTM B496. On request, compacted strand aluminum conductor. Sizes: 8 AWG up to 1000 kcmil.

2. Conductor Shield:

Semi conducting cross-linked polyethylene (XLPE).

3. Insulation:

Thermoset crosslinked polyethylene (XLPE).

4. Insulation Shield:

Semi conducting cross-linked polyethylene (XLPE).

5. Metallic Shield:

Soft annealed uncoated copper tape

6. Grounding (Optional) :

One or three softannealed bare copper conductors cabled with phase conductors.

7. Assembly:

Conductors cabled with non hygroscopic fillers, as required and binder tape.

8. Inner Jacket (Optional):

Black sunlight resistance and flame retardant polyvinyl chloride (PVC) compound.

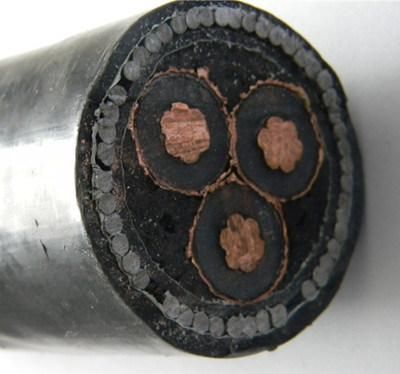

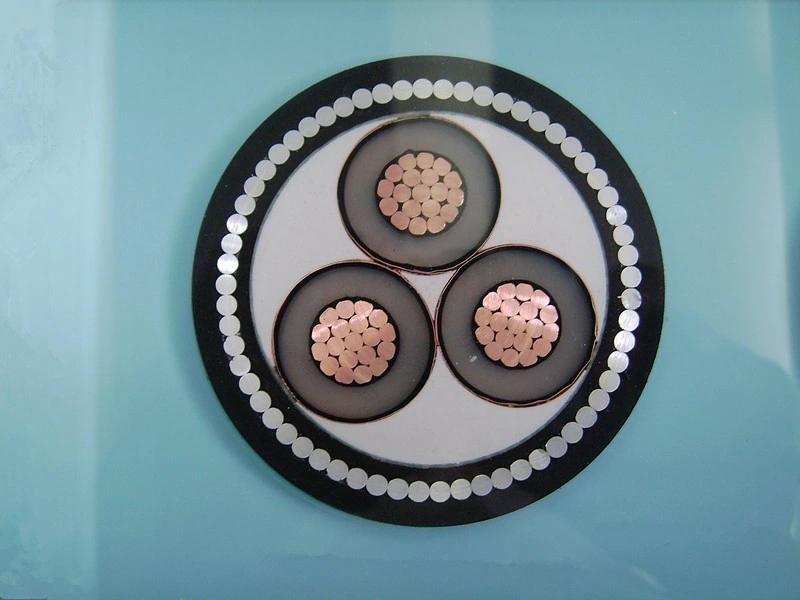

9. Armor (Optional):

An aluminum or galvanized steel interlocked armor, applied over the binder tape or the optional inner jacket.

10. Jacket (Supplementary):

Sunlight resistance and flame retardant polyvinyl chloride (PVC) compound.

• 5/8 kV Yellow

• 15 kV Red

• Rest Black

Standard

UL 1072

Medium Voltage Power Cables.

ICEA S93-639/WC 74

Standard for Utility Shielded

Power Cables rated 5 kV - 46 kV.

AEIC CS8

Specification for Extruded Dielectric, Shielded Power Cables rated 5 kV - 46 kV.

Features

UL listed as MC or MV-90.

Cable rated as Sunlight Resistance for CT use.

Jacket Listed Oil Resistance I. Cable with supplementary sunlight resistance jacket, and grounding conductor, is rated for Direct Burial.

True Triple extrusion system and closed handling raw materials system, to eliminate any contact with ambient, until extrusion process ends.
