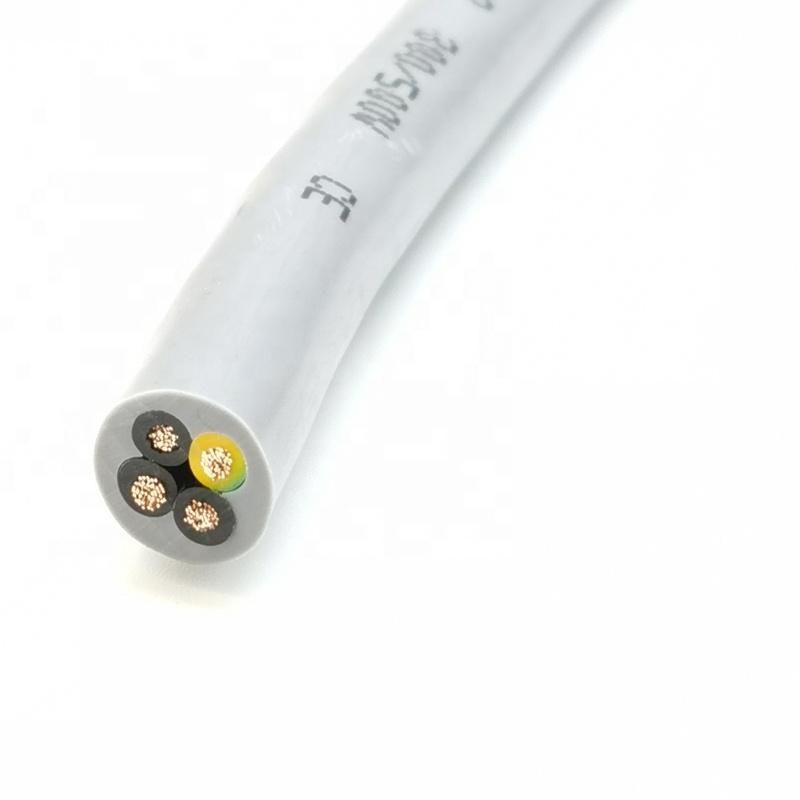

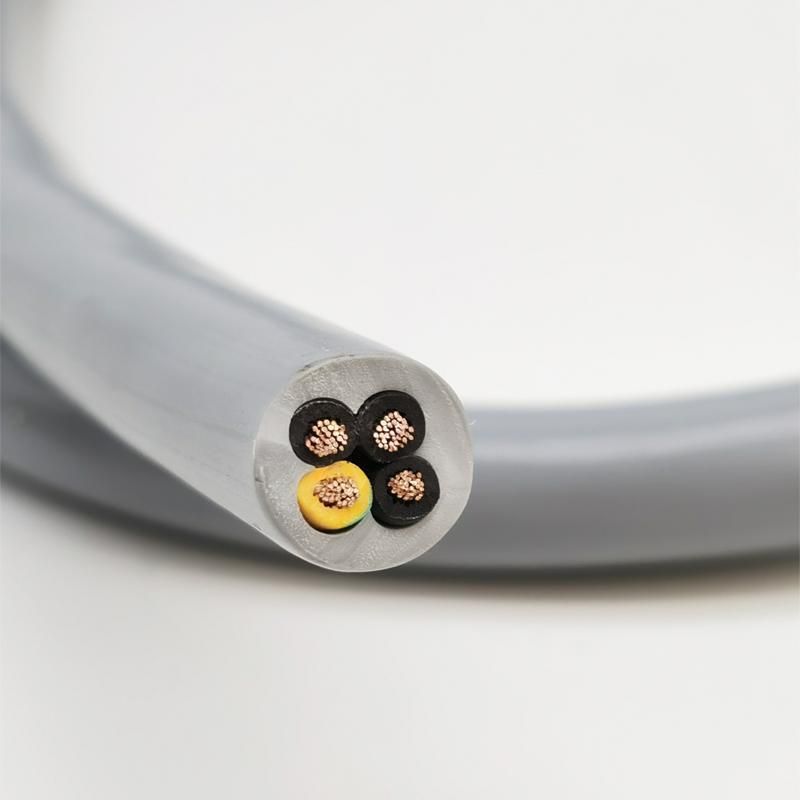

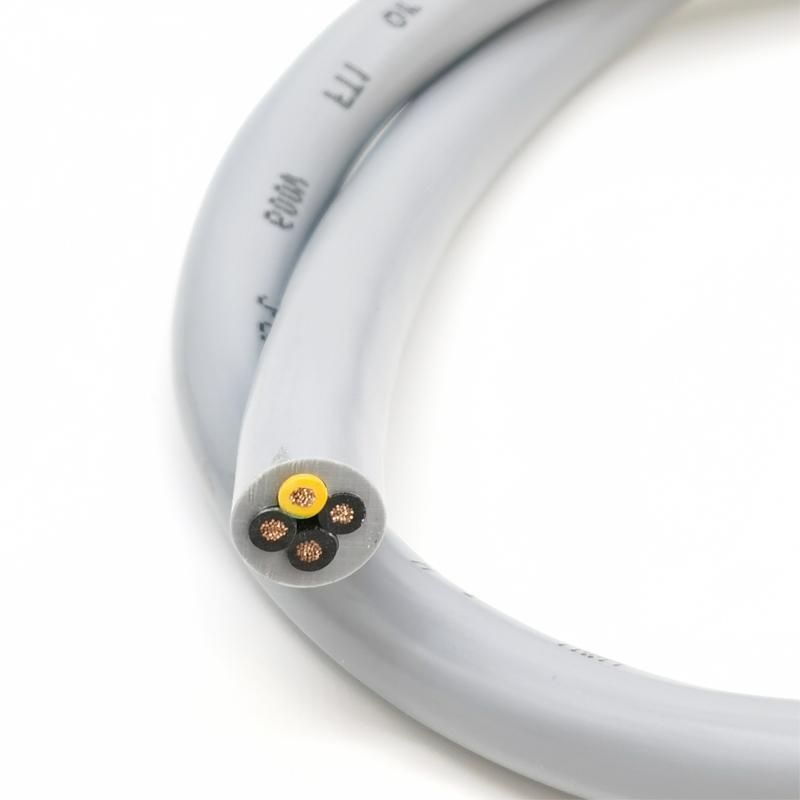

Reel Cable for Port Machinery Anjf9732 Cable Used Under High Mechanical Stress

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：High Performance Polyurethane Sheath
  • Insulation Material：Special Modified Rubber Compound
  • Material Shape：Round Wire

Base Info

  • Model NO.：ANJF9732 Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemReel Cable for Port Machinery ANJF9732 Cable ConductorCopper wire bareInsulationSpecial modified rubber compoundOuter sheathHigh performance polyurethane sheathCore NumberMulticores (As client's requirement)Peak operating voltageUo/U 0.6/1 KV Test Voltage3500 VTemperatureFlexible Installations: -20 ºC ~ + 80 ºC
Fixed Installations: -40 ºC ~ + 80 ºCColorOptionalApplicationThis product can be used under high mechanical stress, especially in the case of frequent winding and simultaneous tensile and torsional stress. Suitable for construction machinery, conveyors, elevators, cranes, etc. Commonly used in harsh mining operations and flexible conveying equipment, transportation systems, cranes, and railway motors. Suitable for outdoor installation and outdoor use.
