• Model NO.：AV6481
• Magnification：Vertical 152times,Horizonl 304times.
• Pull Test：Standard 2n(Optional).
• Electrode Lifetime：>4000 Times,Replaceable
• Transport Package：Packed with Polyfoam, Double Packed with Brown Box
• Specification：CE; ISO9001
• Trademark：Softel
• Origin：Hangzhou, Zhejiang, China
• HS Code：85176229
• Production Capacity：1000PCS Per Month

Basic Info.

Model NO. AV6481 Magnification Vertical 152times,Horizonl 304times. Pull Test Standard 2n(Optional). Electrode Lifetime >4000 Times,Replaceable Transport Package Packed with Polyfoam, Double Packed with Brown Box Specification CE; ISO9001 Trademark Softel Origin Hangzhou, Zhejiang, China HS Code 85176229 Production Capacity 1000PCS Per Month

Product Description

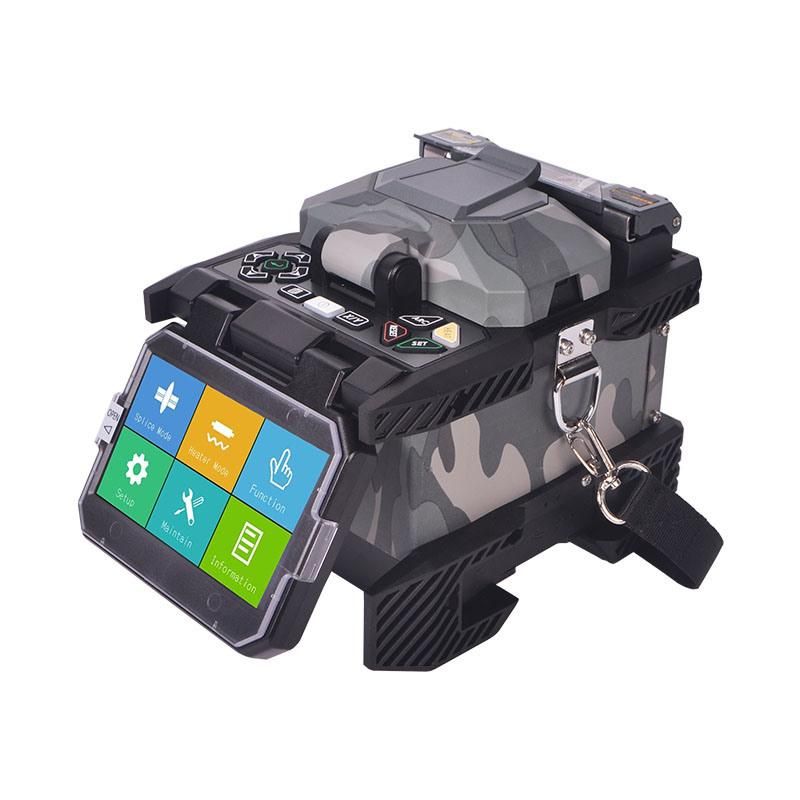

FTTx Fiber Optical Fusion Splicer



-Typical Application

-Brief IntroAV6481 is a new designed fiber splicing equipment. Its powerful function and super low splicing loss make it be competent for construction of trunk line and FTTX : Because of the compact configuration and precise mechanism, it can adapt to execrable environment; The novel fiber imaging system make the image clearer and exquisites; The real-time embedded OS provide friendly man machine interface and abundant functions. The built-in large capacity Li-Ion battery can support long- time fieldwork. The embedded sensors measured temperature, humidity and air pressure supply closed-loop feedback control ,so the instrument can adopt all kinds atrocious circumstance and the consistency of splicing loss was improved.
-Characteristic

New fully-digitalized design;

Small volume, light weight, only 2.9kg including battery;

8 seconds splicing, 30seconds Heat-Shrinking;

Close shield splice automatically; close heater, heat automatically;

X/Y axes were displayed meanwhile, Magnification up to 304 times;

Real time calibrating system for discharging, parameter needn't be adjusted;

Long Electrode Lifetime, up to 4000 times;

USB and VGA ports;

5.7 inch digital high distinguish LCD;

Battery capacity was display in real time precisely;

Built-in high capacity battery, 220 times splicing and heating can be accomplished easily;
