• Model NO.：Geophysical Well Logging Cable
• Production Capacity：10000m,Day

Basic Info.

Model NO. Geophysical Well Logging Cable Production Capacity 10000m/Day

Product Description

3/16" Logging Cable, Underground Cable, Coaxial-Cable, Armoured Cable, Logging Cable, 4 Conductor Cable

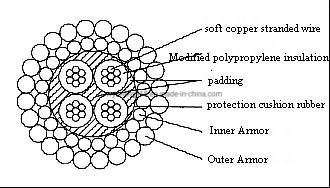

Construction:
3/16 Logging Cable, Underground Cable, Coaxial-Cable, Armoured Cable, Logging Cable, 4 Conductor Cable, Geophysical Well Logging Cable
Copper Construction: 6×0.20+1×0.21 mm 6×0.0078+1×0.0082"
Insulation PP : 0.19 mm 0.00748"
Protection: 3.00 mm 0.118"
Armor: (Inner) 18×0.47 mm(324N) 12×0.0185"(72.8lbs)
             (Outer) 18×0.64 mm(601N) 18×0.0251"(135lbs).



Physical:
316 Logging Cable, Underground Cable, Coaxial-Cable, Armoured Cable, Logging Cable, 4 Conductor Cable, Geophysical Well Logging Cable
3/16 Logging Cable, Underground Cable, Coaxial-Cable, Armoured Cable, Logging Cable, 4 Conductor Cable, Geophysical Well Logging Cable
Cable Diameter: 4.70mm±0.10mm 0.18±0.0039
Cable Weight in Air: 85 kg/km 57.4 lbs/kft
Temp Rating: 150 °C 300 °F



Mechanical:
Cable Breaking Strength: 13 kN 2900 lbs
Minimum Shave Diameter: 260 mm 10.5
Cable Stretch Coefficient: 4.78 m/km/5kN 4.25 ft/kft/klbs


Electrical:
316 Logging Cable, Underground Cable, Coaxial-Cable, Armoured Cable, Logging Cable, 4 Conductor Cable, Geophysical Well Logging Cable
Voltage Rating: 200 VDC 200 VDC
Insulation Resistance: 500 MΩ·km 1500 MΩ·kft
Resistance Typical: 84.3 Ω/km 25.6Ω/kft
Capacitance @ 1 kHz: 190 pf/m 58 pf/ft.

316 Logging Cable, Underground Cable, Coaxial-Cable, Armoured Cable, Logging Cable, 4 Conductor Cable, Geophysical Well Logging Cable

Logging Cable, Underground Cable, Coaxial-Cable, Armoured Cable, Logging Cable, 4 Conductor Cable, Geophysical Well Logging Cable
