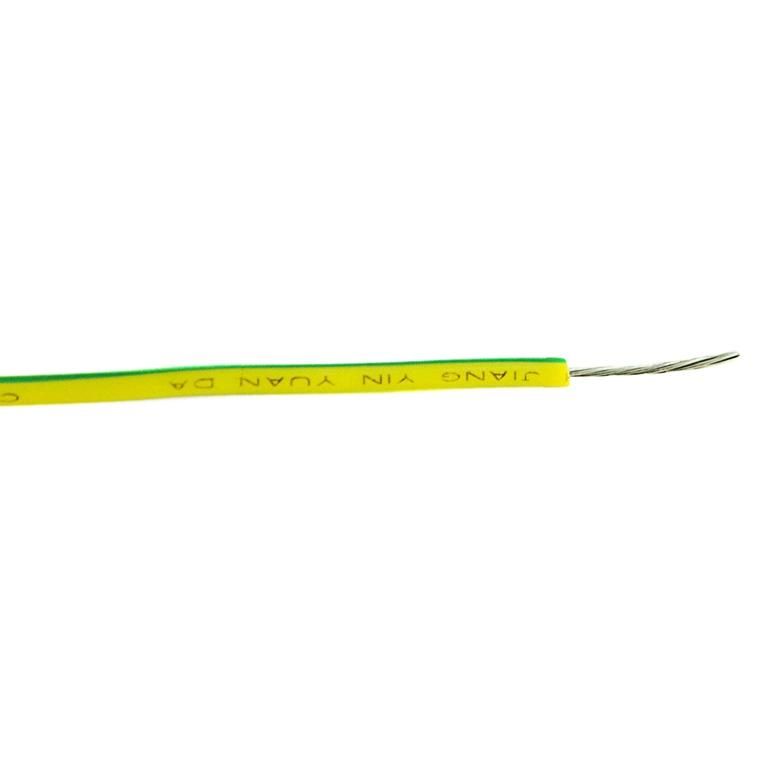

House Appliances Used XLPE Insulated Lead Wire
Jiangyin Yuanda Electrical Material Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground
- Conductor Material：Sc(Silverplated Copper)
- Insulation Material：XLPE
- Material Shape：Round Wire
Base Info
- Range of Application：House Appliances
- Certification：ISO9001, UL, CCC, RoHS, VDE
- Brand：Yuanda
- Transport Package：Carton,Pallet,Tray,Reel
- Specification：30-10AWG
- Trademark：Yuanda
- Origin：Wuxi, China
- HS Code：8544492100
- Production Capacity：1000km,Day
Description
ConductorInsulation Resistance
20°c
Ω/km Spec
AWG Conductor
construction
No./φmm Diameter
(mm) Nominal
thickness
(mm) Nominal outer
diameter
(mm) Max outer
diameter
(mm) 30 7/0.10 0.30 0.40 1.10 1.2 354.33 28 7/0.12 0.36 0.40 1.16 1.3 223.53 26 7/0.16 0.48 0.40 1.28 1.4 139.76 24 7/0.20 0.60 0.40 1.4 1.5 88.36 22 7/0.254 0.78 0.40 1.58 1.7 60.16 20 7/0.32 0.96 0.40 1.76 1.9 38.58 18 16/0.254 1.20 0.40 2.00 2.2 22.98 16 26/0.254 1.50 0.40 2.30 2.5 15.06 14 41/0.254 1.90 0.40 2.70 3.0 9.59 12 65/0.254 2.40 0.40 3.20 3.5 6.07 10 65/0.32 3.0 0.40 3.80 4.2 3.73

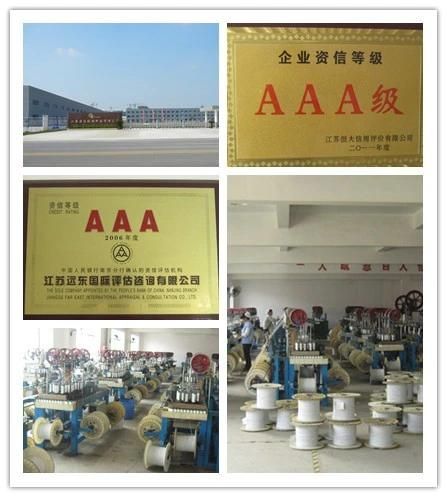

Company Information
Wuxi Yuanda Electrical Material Co., Ltd. Is an ISO9001 certified manufacturer, whose main products have won approval of UL, VDE, CSA and CCC and ROHS Environmental Protection Instruction of European Union.
Our products including silicon rubber wires and cables, FSG silicon extruded and glassfiber braided sleeves, HST silicon extruded and glassfiber braided sleevings, SRG silicon extruded and glassfiber braided sleevings, SR silicon sleeves as well as other silicon rubber items are widely used for aviation, metallurgy, petroleum, electronic instruments, meters, household apparatus, transformers and motors.
With strong technical power, advanced production equipment, complete testing facilities and perfect quality ensurance system, we have many years' production experience in silicon rubber wires and cables. Our products are well sold around the world, including U. S. A, U. K., Germany, Denmark, Canada, India, and Japan etc...
