Low Voltage Concentric XLPE Cable Entrance Cable 1X10+10mm2
Henan Hongda Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Entrance cable 1x10+10mm2
- Wire Core Material：Red Copper Wire
- Certification：ISO, CCC, SGS
- Model：VV, Nyy
- Brand：OEM
- Rated Voltage：600V
- Fixed Temperature Range：-20°c Till +70°c
- Useful：Fixed Installations, Preferably in Cable Ducts, in
- Transport Package：Wooden Drum
- Specification：1 core, 2 core, 3 core, 4 core, 5 core
- Trademark：Hongda
- Origin：China
- HS Code：8544492100
- Production Capacity：200km,Week
Description
Note:

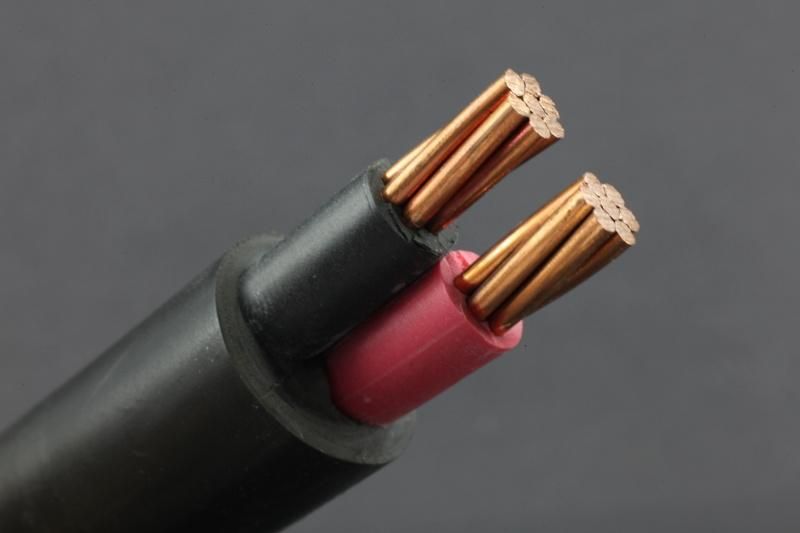

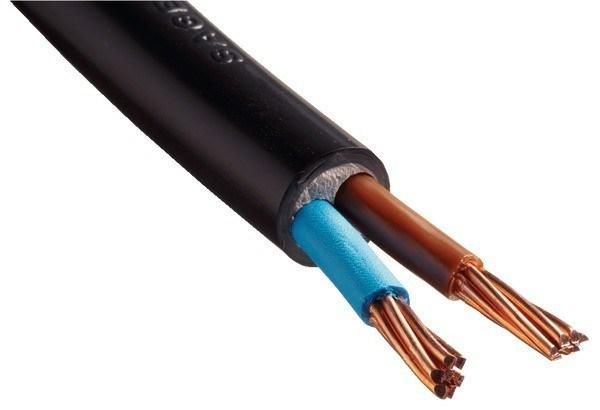

Entrance cable 1x10+10mm2 Construction:
1 ..... solid (RE) or stranded (RM/SM) bare copper
2 ..... core insulation of Crosslinked polyethylene (xlpe)
3 ..... filler or taping
4 ..... outer sheath of polyvinylchloride (PVC), black
Entrance cable 1x10+10mm2 Information:
short circuit temperature on core (max. 5 sec.)
<=300 mm² --> 160°C
>300 mm² --> 140°C
