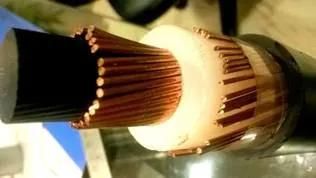

High Voltage Shield Cable (HVSC) Insulated Down Conductor 50mm2 for Lightning Protection
YIFANG ELECTRIC GROUP INC.- Application：Lightning Protection
- Voltage：High Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Wire Core Material：Bare Copper Wire
Base Info
- Model NO.：HVSC 50mm2
- Certification：ISO, CCC, CE, UL, VDE
- Model：Hvsc 50mm2
- Brand：Yifang Cable
- Production Name：Hvsc 50mm2
- Screen：Copper Tape or Copper Wire
- Exported Country：Asia:Singapore,India,etc
- Transport Package：Wooden Drum
- Specification：1.1m Size drum
- Trademark：Yifang Cable
- Origin：China
- HS Code：8544601200
- Production Capacity：1000km Per Month
Description
Insulation Insulation Material -- XLPE Nominal thickness of insulation mm 5.5 5 Copper wire Copper wire numbers and diameter nos/mm 50/1.0 6 Wrapping tape Polyester tape 7 Outer sheath Material of outer sheath -- Black PVC Nominal thickness of outer sheath mm 3.0 Approx. Dia. Over outer sheath mm 37.0 8 Approx. weight of cable Kg/km 1990 9 Packing length m 100±2%
