• Model NO.：24kv 3x300mm2 Aluminium XLPE Power Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Transport Package：Steel Reels
• Trademark：YIFANG
• Origin：China
• HS Code：854460
• Production Capacity：800000km

Basic Info.

Model NO. 24kv 3x300mm2 Aluminium XLPE Power Cable Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Transport Package Steel Reels Trademark YIFANG Origin China HS Code 854460 Production Capacity 800000km

Product Description

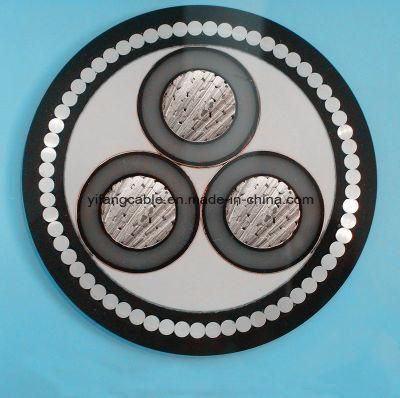

24kv 3x300mm2 Aluminium XLPE Power Cable

Manufacture according to IEC, ASTM, BS, DIN, NFC, AS/NZS, CSA, IS, etc.

1. This cable belongs to cables rated voltage up to 35KV.

2. Commonly the cables comply with IEC 60502 standard. We can also produce according to the standard required by our clients, such as ASTM, BS, DIN, NFC, AS/NZS, CSA, IS, etc.

3. Rated Voltage of the cable is from 1KV to 35KV, Cross-section area is up to 1000 SQMM.

4. The cable can be used for laying indoor, tunnel, underground, canal, water and seabed, etc. The cable can bear external mechanical pressure and moderate pulling force with different design, such as metallic armour, water proof material, corrugated alu sheath, lead sheath, etc.

5. Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature is 250 degrees.

6. Cable Structure:
6.1 Single core or 3 Core
6.2 Copper or aluminium conductor
6.3 XLPE insulation
6.4 Copper tape or copper wire screen / Alu-Plastic Tape screen
6.5 Armoured with Galvanized steel wire / Steel tape / Aluminium Wire / Aluminium tape
6.6 Outer sheath with PVC / PE / LDPE / LLDPE

7. Export Areas: Philippines, Korea, Saudi Arab, Bangladesh, Singapore, Yemen, India, Iraq, Iran, UAE, Jordan, Qatar, Indonesia, Syria, UK, Italy, Germany, Romania, Belgium, Russia, South Africa, Zambia, Nigeria, Guinea, Gambia, Ghana, Kenya, Rwanda, Cô Te d'Ivoire, Eritrea, Zimbabwe, Mauritius, US, Peru, Canada, Mexico, Jamaica, Brazil, Chile, Bolivia, Ecutor, Dominican, etc.

8. Certificate: ISO, CE, SGS, SONCAP, BV, COC, ETC.

9. For other detailed information, pls contact us directly

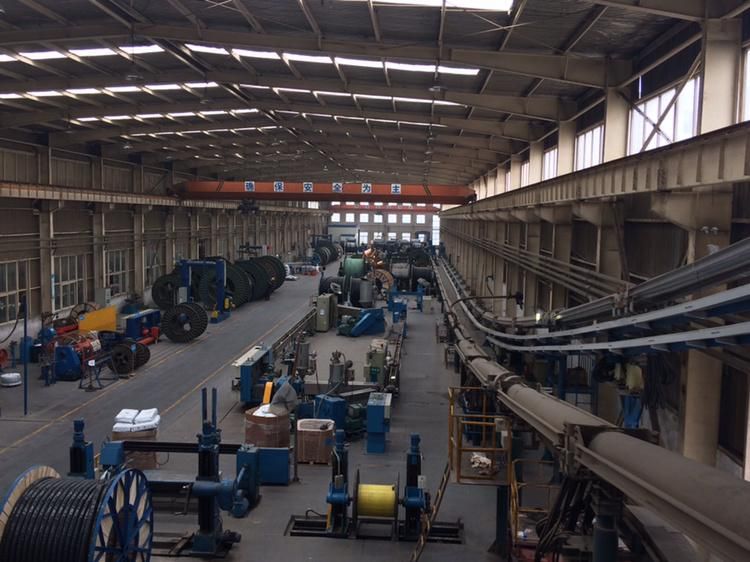

Production Line:

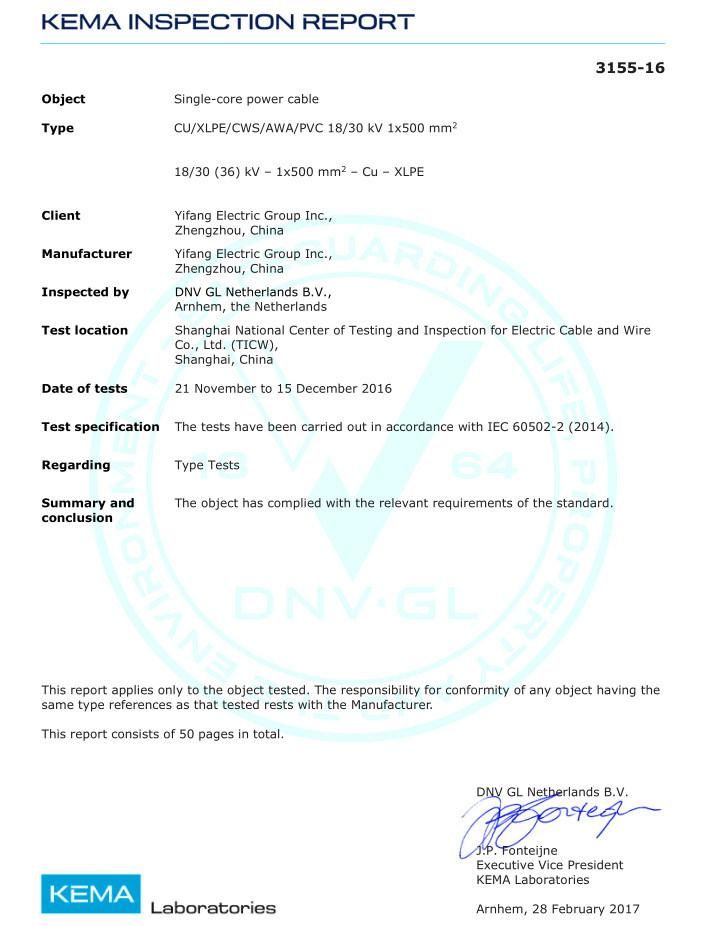

Certificate:

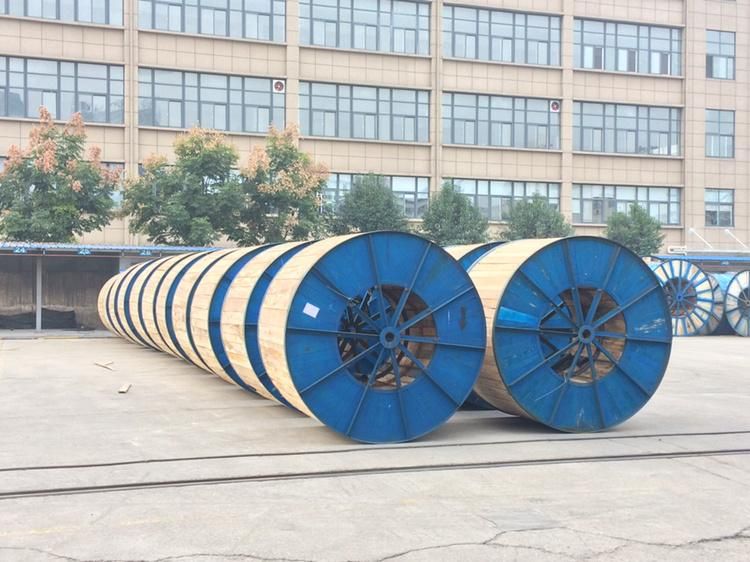

Packing:
