• Model NO.：UTP Cat6
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CPR,ETL,ISO9001
• Brand：Risun or OEM
• Conductor：Solid Bare Copper
• Conductor Gauge：23 AWG
• Stranding：Solid
• Insulation Material：HDPE
• Shield Material：Unshielded
• Jacket Material：Flame Retardant PVC
• Ripcord：500d Applied Longitudinally Under Jacket
• Separator：Divider
• No.of Conductor：8 Core, 4pairs
• Color：Grey, White or According Customer Requirement
• Transport Package：305m,Pull Box, 2 Pull Box,CTN.
• Specification：ETL, CE, RoHS, SGS, ISO9001
• Trademark：Risun or OEM
• Origin：Hangzhou, Zhejiang, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes Per Month

UTP CAT6 solidConductor Material Solid Bare CopperConductor Gauge23 AWGStrandingSolidInsulation MaterialHDPEShield Material UnshieldedJacket Material Flame Retardant PVCPackage305M/1000ft, Wooden Reel, Carton, PalletDelivery timeNormally 25 days after received the deposit.

General Specification:Cable TypeUnshielded Twisted Pair (UTP)Pairs, Quantity 4Jacket ColorBlack | Blue | Green | Gray | Red | White | Yellow | OrangeRip CordYesConductor Gauge, Singles23 AWGConductor Type, SinglesSolidConductors, Quantity8Insulation Overall Diameter ± 0.0002 in.1.016 mm | 0.040 in.Insulation Average Wall Thickness 0.223 mm | 0.0088 in.Outer Jacket Average Wall Thickness0.584 mm | 0.023 in.Outer Jacket Nom. O.D. ± 0.0086.197 mm | 0.244 in.Nominal Weight 13.60 kg | 30 lbs.Cable Length 304.8 m | 1000 ft

Environmental Specifications:Temperature Rating0 °C to + 60 °C ( 32 °F to + 140 °F)Operating Temperature-20 °C to + 75 °C ( -4 °F to + 167 °F)

Mechanical Characteristics:Minimum Ben Radius55.88 mm | 2.2 in.Maximum Pulling Force 11.33 kg | 25 lbsTensile Strenth Before≥ 13.8 MpaElongation Aging≥ 100%Aging Condition100 ºC x 168 Hours After≥ 85% of Unaged Aging ≥ 50% of Unaged


Electrical Characteristics:Maximum Conductor DC Resistance @ 20°C9.38 Ω/100 MetersMaximum DC Resistance Unbalanced @ 20°C5%Maximum Pair-to-Pair Ground Capacitance Unbalanced 330 pF / 100 MetersCharacteristic Impedance (1 ~ 350 MHz) 100 ± 15 ΩMutual Capacitance5.6 nF/100 MetersMaximum Delay Skew40 nS/100 MetersNominal Velocity of Propagation (NVP)63%

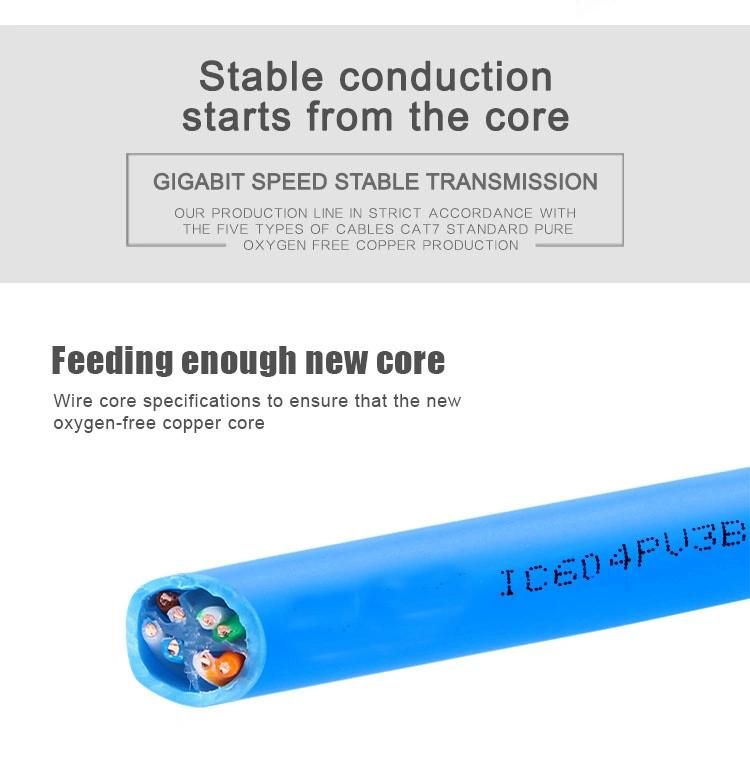

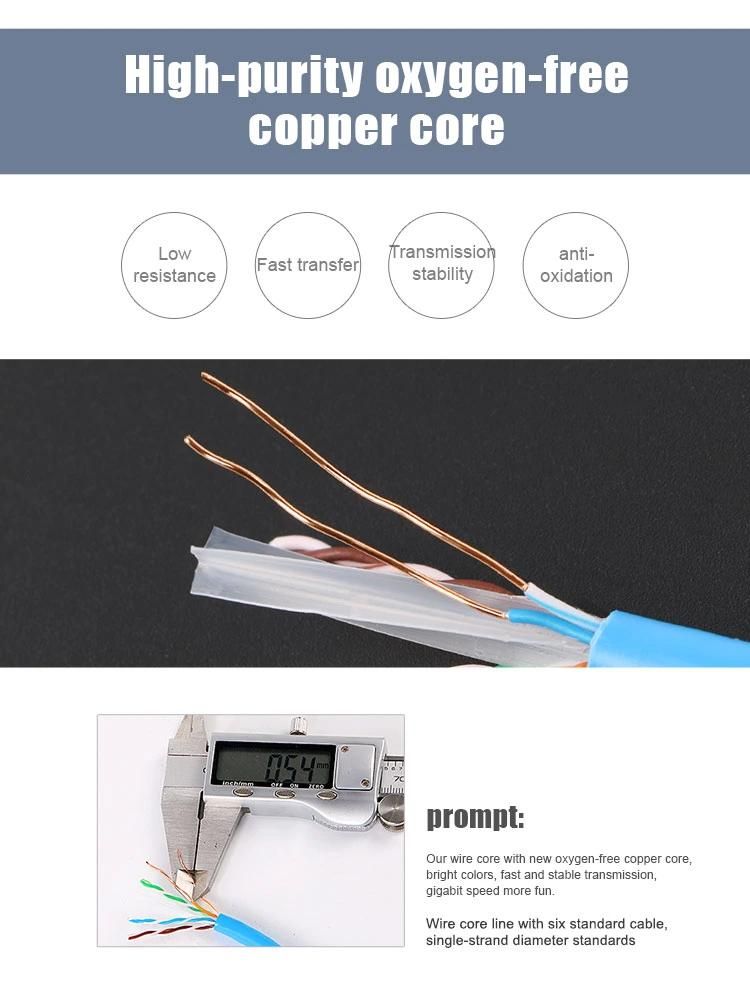

Details Images:










Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.



Packing&Shipping:




















Why Choose Us:





FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
