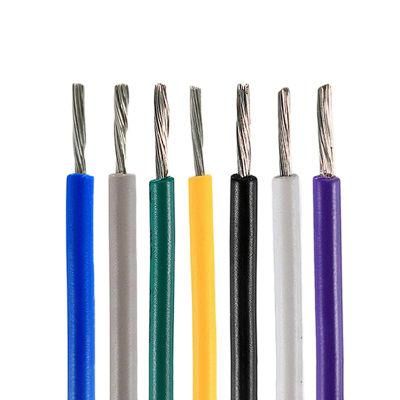

UL10368 XLPE Insulation Irradiated Cross Linked Electric Wire Cable
B&T (Zhangzhou) Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：for General Purpose Internal Wiring of Appliance
- Conductor Material：Copper
- Sheath Material：Crosslinking
- Insulation Material：XLPE
Base Info
- Model NO.：UL10368
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS, Reach
- Brand：B&T
- According to：UL Subject758, UL1581, CSA22.2 No.210.2
- Test：Passes UL VW-1 & CSA FT1 Vertical Flame Test
- Performance：for Internal Wiring of Appliance
- Conductor：Stranded, Tinned or Bare Copper Conductor
- Color：Could Be Customized Color
- Delivery Time：7-15days
- Products Certification：UL,cUL,RoHS, Reach
- Package：Coil or Spool Packing
- Factory Certificate：ISO9001:2008 Standard
- Capacity：300,000km Annual
- Transport Package：610 Feet in Roll
- Specification：18~30AWG 1~34 Conductors
- Trademark：B&T
- Origin：Xiamen, Fujian
- HS Code：8544492100
- Production Capacity：300, 000km
Description
AWGNo.of Cond Insulation Thick. Outside Thick. Packing No./mm mm mm m/r Ω/mm 30 7/0.1 0.25 0.80 1220 354.33 28 7/0.127 0.25 0.90 1220 223.75 26 7/0.16 0.25 1.00 1220 139.76 24 11/0.16 0.25 1.10 1220 88.36 22 17/0.16 0.25 1.30 610 60.16 20 21/0.178 0.25 1.50 610 38.58 18 34/0.178 0.25 1.70 610 22.98 16 26/0.254 0.25 2.00 610 15.06 28 1/0.320 0.25 0.85 1220 227.39 26 1/0.404 0.25 0.95 1220 142.79 24 1/0.511 0.25 1.05 1220 89.39 22 1/0.643 0.25 1.15 1220 54.30 20 1/0.813 0.25 1.35 610 33.90 18 1/1.024 0.25 1.55 610 21.40
