8 Number of Conductors CAT6 FTP Network Cable Bc/CCA
Zhejiang Kuayue Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable, Long Distance Symmetric Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Cat 6
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：CAT6 FTP
- Wire Core Material：Bc,CCA
- Certification：CE, ISO, RoHS, CCC
- Model：CAT6
- Brand：Kuayue
- Color：Blue
- Length：305m
- MOQ：15km
- Conductor：4*2*0.57mm Bc,CCA
- Insulation：1.0mm HDPE
- Cross：Yes
- Shield：Al Foil
- Jacket：6.2mm PVC,PE,LSZH
- Transport Package：Other Packing Is Available as Your Request.
- Specification：wooden reel, carton, pallet
- Trademark：Hanli
- Origin：Zhejiang
- HS Code：8544491100
- Production Capacity：200km,Day
Description
Conductor
Material
Bare Copper
Size
23 AWG
Construction
1/0.560 ± 0.02 mm
Insulation
Material
Foam-Skin PE
Thickness
Average: 0.414 mm Min. at any point: 0.364mm
Material
1.387 ± 0.05 mm
Colors
Blue/White-Blue , Orange/White-Orange
Green/White-Green , Brown/White-Brown
Elongation
Min. 150 %
Tensile strength
Min. 0.51 Kg/mm²
Shield
Al-Mylar Type
Aluminum foil on outside
Mylar Type
Braid
Material
Tinned Copper
Coverage
Min. 40% (Nom. 48 %)
Sheath
Material
PVC
LSZH
Thickness
Average: 0.54 mm
Average: 0.54 mm
Min. at any point: 0.40 mm
Min. at any point: 0.40 mm
Diameter
7.2 ± 0.3 mm
7.2 ± 0.3 mm
Color
Assorted upon request
Assorted upon request
Elongation
Min. 100%
Min. 125%
Tensile strength
Min. 1.407 Kg/mm²
Min. 0.917 Kg/mm²
168100Aging at
100 for 168Hrs
:50%
Min.elongation retention:50%
:75%
Min.tensile strength retention:75%
Min.elongation
retention:75%
Min.tensile
strength retention:70%
Insulation: PE
Jacket: PVC,LDPE and rip wire
Colors: red, black, green, yellow, pink, blue, white, gray, purple all colors (optional)
Conductor: bare copper, pure copper
Structure: solid or stranded (optional)
Performance range: FTP
Past fluke test: 100m
Working distance up to 150m
Industrial standards: YD/T1019-2001, (USA) ANSI/TIA/EIA-568-B, (Worldwide) IEC 11801/71156
Rating temperature: 70°
Suitable for structure and wiring·
Packing ways:
100m: PE protective layer, 5 roll per carton box
305m: one roll in one carton box, two carton boxes in one master carton
500m: wooden roll package, carton box as outer package
Frequency MHz | Attenuation (dB/100 meters at 20),Max. | Next (dB),Min. | Power sum (dB),Min. |
0.772 |
| 67* | 64* |
1.0 |
| 65* | 62* |
4.0 | 6.4* | 56* | 53* |
8.0 | 8.9* | 51* | 48* |
10.0 | 9.9* | 50* | 47* |
16.0 | 12.3* | 47* | 44* |
20.0 | 13.8* | 45* | 42* |
25.0 | 16.0* | 44* | 41* |
31.25 | 17.1* | 42* | 39* |
62.5 | 25.6* | 38* | 35* |
100.0 | 100MHz | 33.0* | 32* |
125.0 | 37.4* | 34* | 31* |

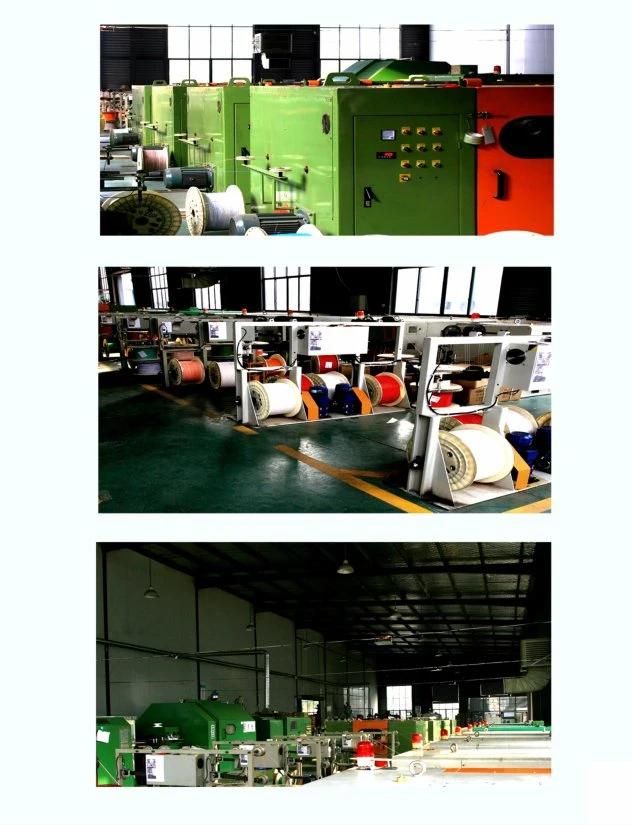

Company Information
