DIN VDE 0812 Low Voltage Standard Pure Copper Wire Conductor Flexible Insulation Liyy Tp Multi-Paired Data Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Coal Mine
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：PVC
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Wire Core Material：Red Copper Wire
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：Yjv, Yjy, Yjv22, Yjy23
- Brand：Feiya
- Model Number：2,3 ,4 ,5 Cores, etc.
- OEM：Yes
- ODM：Yes
- Colors：Assorted Upon Request
- Operating Environment：Power, Construction, Metallurgy, Petrochemicals, T
- Transport Package：Submersible Pump, Heavy Duty ,Colliery
- Specification：Rated voltage(kV): 0.6-1
- Trademark：Fengda
- Origin：Tianjin, China
- HS Code：8544421900
Description
Basic Info.
Wire Core Material Red Copper Wire Certification ISO, CCC, CE, RoHS, UL, VDE Model Yjv, Yjy, Yjv22, Yjy23 Brand Feiya Model Number 2/3 /4 /5 Cores, etc. OEM Yes ODM Yes Colors Assorted Upon Request Operating Environment Power, Construction, Metallurgy, Petrochemicals, T Transport Package Submersible Pump/ Heavy Duty /Colliery Specification Rated voltage(kV): 0.6-1 Trademark Fengda Origin Tianjin, China HS Code 8544421900Product Description
Application and structure:
H05VV-F
Application
The flexible is suitable as a guiding, controlling and measuring cable especially when free unrestricted movement is required.It can be used in the construction of machine tools, plant and appliances, as well as in heating, air conditio- ning and ventilation
technology and other spheres of application in electrical units.

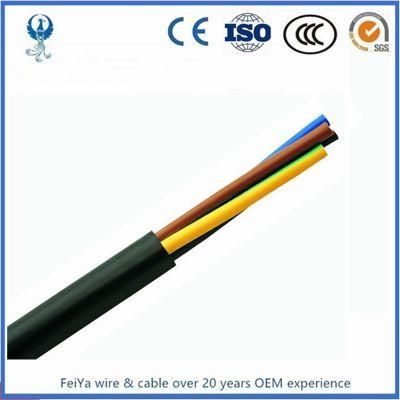

Construction
OZ: cores black with consecutive white numbering
JZ: 3 cores or more with greenyellow protective conductor in the outer layer. Cores twisted in layers.
Conductor material: Fine strands of bare copper
Insulation: PVC core insulation
Outer jacket: PVC
| Brand name | Aein cable | Rate voltage | 300/500V |
| Model | H05VV-F | Insulation | PVC |
| Insulation resistance | Min.20MOhm x km | Certification | CE/ RoHS/UL/CCC/ISO9001 |
| Jacket color | Black (RAL9005) or gray (RAL7001) | Number of cores | Multicore |
| Bending radius(Exible application) | 15×D (outer cable diameter) | Operating temperature range(Fixed installation) | -40ºC~+80ºC |
| Bending radius(Fixed installation) | 4×D (outer cable diameter) | Operating temperature range(Exible application) | -5ºC~+80ºC |
| Conductor material | Pure copper wire | Test voltage | 4000V |
| Application Standards | DIN VDE 0250, 0285 | Port | Tianjin, China |
FAQ
Q1:Are you a trading company or manufacturer?
A1: Tianjin Feiya wire & Cable CO., LTD. is a professional manufacturer.
Q2: What kinds of products does Tianjin Feiya wire & Cable CO., LTD. manufacture?
A2: Our products mainly cover low, medium and high voltage (KV) crosslinked polyethylene insulated power cable,PVC
insulated power cable, PVC insulated wire (construction cable), control cable, signal cable, rubber cable,coal mine cable,
welding cable, ship cable and other related customized cables. These cables are used in Power metallurgy, Oil&Chemical
Industry, Nation Defense Power Station, Mine, Port and Architectural Engineering, andother fields.
Q3:Which standards do you comply with when you produce the electrical wires and cables ?
A3: We have passed ISO9001:2000 and ISO140001:2004. All products conform to GB, IEC, BS, ASTM, VDE JB and UL
standards. Besides, we have the ability to design and produce various wires and cables, and customize them for you
according to the special requirements of customers (providing OEM services).
4: What is your MOQ?
A4: It`s base on the cable type or wire type. Please contact Calder. He will let you know.
Q5:How much the Courier freight will be for the samples?
A5:Courier freight depends on the quantity,weight and carton size and your area.
