Cross-Linked Polyethylene (XLPE) 6AWG SAE J-1127 Sgt Sgx Stx Battery Cable

Henan Hongda Cable Co., Ltd.

Type：Insulated
Conductor Type：Stranded
Application：Heating, Underground, Automotive Use
Conductor Material：Copper
Sheath Material：No
Insulation Material：XLPE

Base Info

Model NO.：SGX Battery Cable
Material Shape：Round Wire
Range of Application：Automotive Starters or Battery Grounds
Certification：ISO9001, CCC, SGS
Brand：OEM
Standards：SAE J-1127, SAE J-1128
Voltage：600V
Insulation Temperature：125 C, 105 C, 80 C
Transport Package：500m Per Roll or as Your Requirement
Specification：1sqmm to 120sqmm
Trademark：OEM
Origin：China
HS Code：8544492100
Production Capacity：1000km,Month

Description

Basic Info.

Model NO. SGX Battery Cable Material Shape Round Wire Range of Application Automotive Starters or Battery Grounds Certification ISO9001, CCC, SGS Brand OEM Standards SAE J-1127, SAE J-1128 Voltage 600V Insulation Temperature 125 C, 105 C, 80 C Transport Package 500m Per Roll or as Your Requirement Specification 1sqmm to 120sqmm Trademark OEM Origin China HS Code 8544492100 Production Capacity 1000km/Month

Product Description

Automotive Battery Cable

Automotive Battery Cable can be used in a variety of applications and is supplied to a number of industries. Allied offers battery cables SGT and STX/SGX. All auto battery cable options meet SAE J-1127, Ford and Chrysler specifications. Battery wire also comes in a variety of AWG sizes.

SGT Automotive Battery Cable

Type SGT
Automotive Starter, Ground or Battery Cable

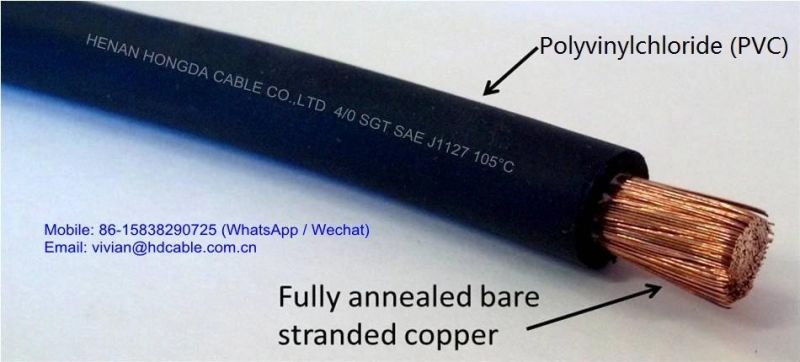

SGT Battery Cable Construction:

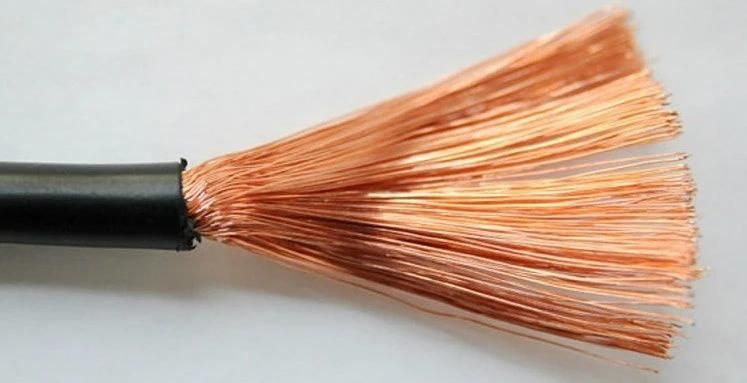

Conductor: Bare copper
Insulation: Polyvinylchloride (PVC)

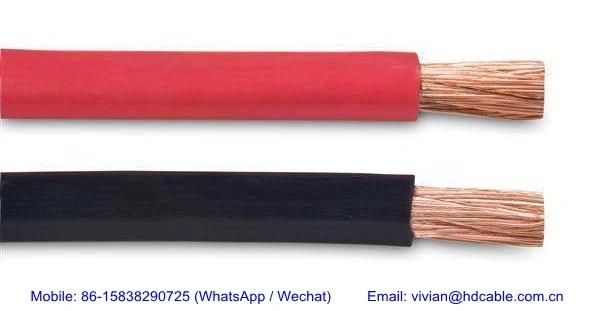

Color & Print Options: Available in standard battery circuit colors of black and red with optional custom printing available.
Stranding Options: SGT Cable is available with higher stranding.

SGT Battery Cable Applications:

Type SGT Battery Cable may be used in starter or battery ground circuits in accordance with SAE J-1127.
Recommended temperature range is -40°C to +105°C.
Manufactured to meet Ford (M1L-56A) and Chrysler (MS-3450) specifications

Part Number	AWG Size	Conductor Stranding	Nom. Insul. Thick. (in)	Nom. O.D. (in)	Approx LBS/MFT	SAE Spec
SGT-6	6	37/.0260	0.060	0.3050	137.00	SAE J-1127
SGT-4	4	61/.0250	0.065	0.3500	168.00	SAE J-1127
SGT-2	2	133/.0218	0.065	0.4400	258.00	SAE J-1127
SGT-1	1	133/.0243	0.065	0.4800	322.00	SAE J-1127
SGT-1/0	1/0	133/.0275	0.065	0.5250	431.00	SAE J-1127
SGT-2/0	2/0	133/.0309	0.065	0.5750	497.00	SAE J-1127
SGT-3/0	3/0	361/.0210	0.078	0.6610	603.00	SAE J-1127
SGT-4/0	4/0	361/.0239	0.078	0.7260	779.00	SAE J-1127

Cross-Linked Polyethylene (XLPE) 6AWG SAE J-1127 Sgt Sgx Stx Battery Cable

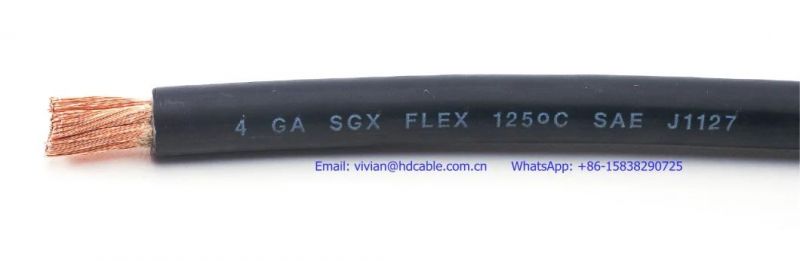

SGX Automotive Battery Cable

Type SGX Wire
Automotive Battery Cable
Primary Wire

Type SGX Battery Cable Construction:

Conductor: Bare copper
Insulation: Cross-Linked Polyethylene (XLPE)
Options: Available in stranded battery circuit colors of black and red with optional custom printing available

Type SGX Cable Features:

Can be used for automotive starters or battery grounds where resistance to abrasion, heat and aging is needed.
Meets the requirements of SAE J-1127
SGX wire has a recommended temperature range of -40°C to +125°C

Part Number	AWG Size	Conductor Stranding	Nom. Insul. Thick. (in)	Nom. O.D. (in)	Approx LBS/MFT	SAE Spec
SGX-6	6	133/0.0137	0.06	0.3050	107.00	SAE J-1127
SGX-4	4	133/0.0170	0.065	0.3750	153.00	SAE J-1127
SGX-2	2	133/0.0220	0.065	0.4380	248.00	SAE J-1127
SGX-1	1	259/0.0177	0.065	0.4800	308.00	SAE J1127
SGX-1/0	1/0	1026/0.010	0.065	0.5250	383.00	SAE J-1127
SGX-2/0	2/0	1254/30	0.065	0.5750	470.00	SAE J-1127
SGX-3/0	3/0	1615/30	0.078	0.6540	589.00	SAE J-1127
SGX-4/0	4/0	2052/.0100	0.078	0.7060	766.00	SAE J-1127

STX Battery Cable

Type STX Wire
Automotive Battery Cable

STX Automotive Wiring Features:

Conductor: Bare Copper
Insulation: Cross-Linked Polyethylene (XLPE)
Color & Print Options: Available in standard battery circuit colors of black and red with optional custom printing available
