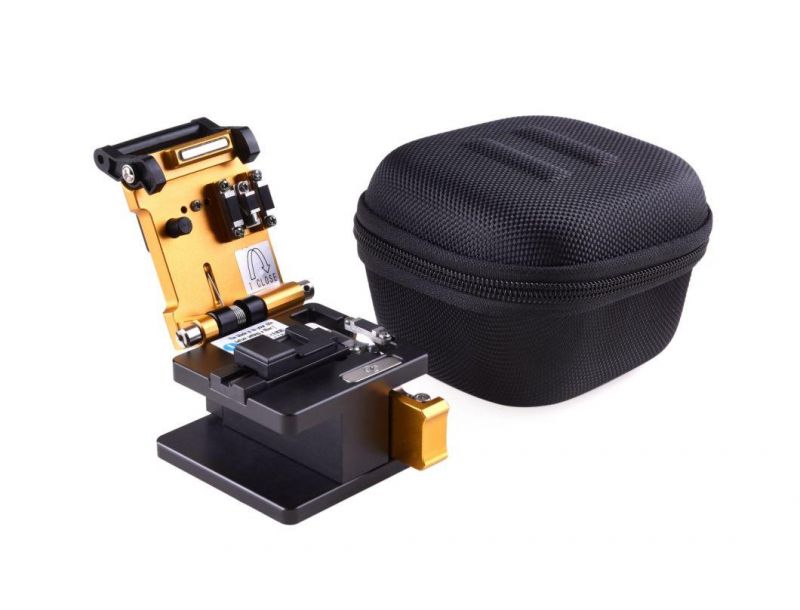

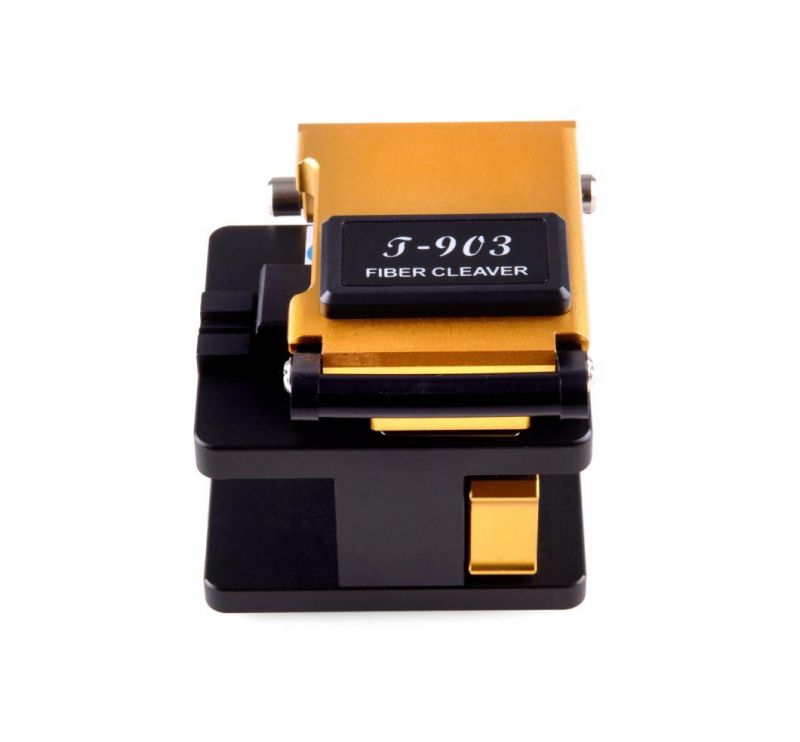

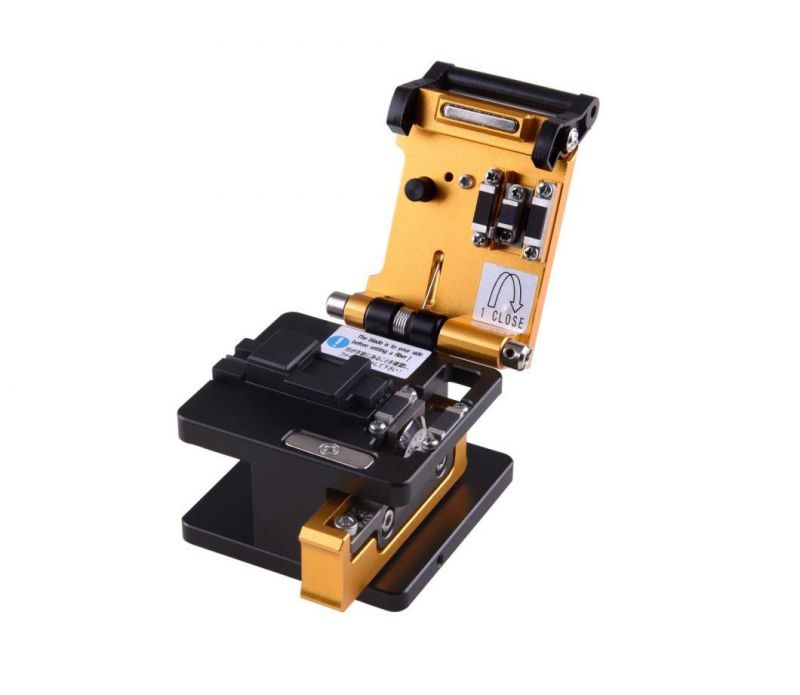

Hot Selling Optical Fiber Cleaver (T-903)

Nanjing Tianxingtong Electronic Technology Co., Ltd.
  • Type：Optical Fiber Cleaver
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New
  • Feature：Insulation
  • Product Type：Optical Fiber Cleaver

Base Info

  • Model NO.：T-903
  • Product Name：Optical Fiber Cleaver
  • Applicable Fiber：Sm, mm, Ds, Nz-Ds, Edf
  • Fiber Diameter：100~150um
  • Coating Diameter：100~1000um
  • Cleave Angle：90°± 0.5°
  • Cleave Length：Single Fiber Standard 8~22mm
  • Blade Lifetime：36000 Cleaves
  • Dimensions：63mm *76mm *63mm
  • Weight：About 270g
  • Transport Package：Carton
  • Specification：CE, SGS, CSI, ISO9000
  • Trademark：Skycom , OEM
  • Origin：Nanjing, China
  • HS Code：9031801000
  • Production Capacity：1500PCS, Month

Description

Hot Selling Optical Fiber Cleaver (T-903)Hot Selling Optical Fiber Cleaver (T-903)Hot Selling Optical Fiber Cleaver (T-903)Hot Selling Optical Fiber Cleaver (T-903)Description
   The T-903 is an economic multi-action and high precision fiber cleaver, standard length 16mm. Compact, slim and simple is available for application.

General
 1) Weight: 0.45kg.
 2) Dimensions: 63(W) x 76(D) x 63(H)mm.

Features
♦  Stable operation with Multi-Action process
♦  Typical cleave angle: 90°± 0.5°
♦  Compact & handy outfit design
♦  High precision cleaving blade with 16 cleave spots
♦  Scratch-free anodized body surface
♦ Simplified blade adjustment & replacements
♦  Built-in maintenance tool attached: on the bottom

Specification
 ♦ Applicable fiber: SM, MM, DS, NZ-DS, EDF, 125um OD of Nude Fiber Cable
 ♦ Fiber Diameter:  Core of Fiber Cable single(∮0.25 & 0.9mm)
 ♦ Coating Diameter: 100~1000um
 ♦ Cleave Angle: 90°± 0.5°
 ♦ Cut Length of Fiber Cable 9~16mm (∮0.25mm) 10~16mm (∮0.9mm)
 ♦ Blade Lifetime: 36000 cleaves
