• Model NO.：NYY
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC
• Model：Nyy Cu,PVC,PVC
• Brand：Hongda
• Transport Package：Wooden Drum
• Specification：2 core
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：3000km,Month

Assembly /

Two, Three or Four insulated conductors are laid-up together with non-hygroscopic

Inner Sheath

fillers and the assembly is bedded with an extruded layer of PVC. In case of non

armoured cables, this layer may be omitted

Armour

Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC

60502 or as per BS 5467, BS 6346. Single core cables shall be Aluminium wire

armour. Aluminum/Steel Tapes applied helically over the bedding of multi-core cables

as per IEC 60502.

Outer

Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as

Sheath

BS 6346/5467.

Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite

PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on

special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE,

LSF, CPE are available on request.

Fire

Cables can be supplied with special flame retardant PVC outer sheath to comply with

Performance

the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24,

of Cable

can also supply cables with Low Smoke Halogen Free (LSHF) material according to

Sheaths

IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

Cable Parameters:

Nominal Cross Section

Diameter of Conductor (Approx.)

Nominal Insulation Thickness

Nominal PVC Sheath Thickness

Overall Diameter (Approx.)

Weightof Cable (Approx.)

mm²

mm

mm

mm

mm

Kg/Km

2x1.5

1.6

0.8

1.8

12

205

2x2.5

2

0.8

1.8

13

250

2x4

2.6

1

1.8

15

330

2x6

3.1

1

1.8

16

400

2x10

4

1

1.8

17.5

525

2x16

5

1

1.8

20

720

2x25

6.3

1.2

1.8

23.5

1030

2x35

7.4

1.2

1.8

25.5

1320

2x50

8.8

1.4

1.8

28.5

1670

2x70

10.6

1.4

1.8

32

2290

2x95

12.4

1.6

1.9

37

3060

2x120

14

1.6

2

40

3700

2x150

15.5

1.8

2.2

44

4500

2x185

17.4

2

2.3

48

5570

2x240

20.3

2.2

2.5

55

7180

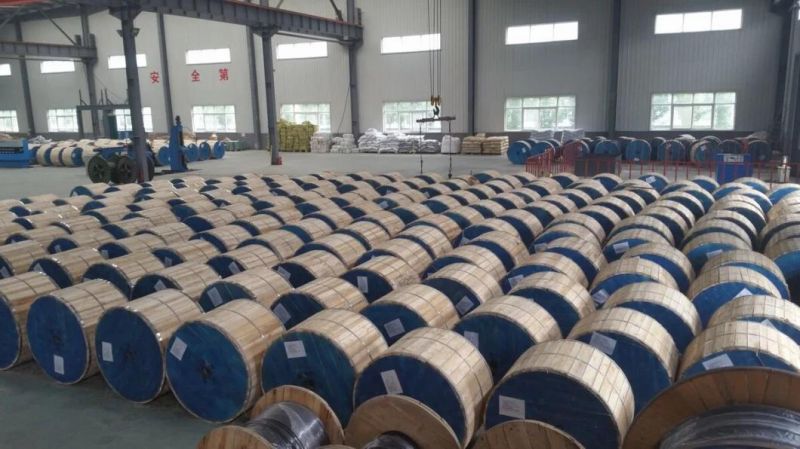

Packing & Shipping
We provide you with the best product packaging design services, thereby allowing you to save more shipping charges.



FAQ

1. Q: Are you the factory or the trading company?
    A: We are the factory.
2. Q: How long is your guarantee Period?
    A: We usually offer 1 year guarantee for our general products.
3. Q: How can I get the samples?
    A: We can make the sample order. And usually you will charge for it.
    But the samples fee will be return to you when you make the bulk order.
4. Q: Where is your factory? How can we visit your factory?
    A: Our factory located in Jiaozuo city, Henan Province and our office is in Zhengzhou city. You could reach here by train and by air. We can pick you up in the airport and the railway station.
5. Q: What is your MOQ?
    A: It`s base on the cable type or size. Please contact Ms. Melon. She will offer you the details.

Factory

Established in 2004, Henan Hongda Cable Co., Ltd, is dedicated into manufacturing various types of electric power wire and cable. Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.
Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.

Our Service

1. Design wire and cable according to your real application
2. Optimized reel size for freight cost saving
3. Customized package to feature your brand
4. Short lead time to meet your urgent demand
5. Diversified delivery terms for your options
6. Quick response (24 hours on line)
7. Professional knowledge for clear answer to your any question
8. Comprehensive technical documents to support your tender bidding
9. One-year limited warranty for our wire and cable
10. Cable sample available
11. Specify the cable only according to the location
12. OEM is available
13. Abundant cables and wires for your option
