• Model NO.：26~18AWG
• Material Shape：Round Wire
• Range of Application：Industrial
• Certification：ISO9001, CE, UL
• Brand：No Brand
• Colour：Black,White,Red,etc
• Package：100,200,305,610m Per Roll
• Conductor：Copper or Pure Nickel
• ISO：Yes
• Lead Time：10-15 Working Days
• Transport Package：in Roll, Spool+Carton
• Specification：AWG 24, 22, 20, 18, 16, 14, 12
• Trademark：no
• Origin：China
• HS Code：8544491900
• Production Capacity：10, 0000 Meters

CONDUCTOR

INSULATION

SHIELD

JACKET

Max.Resistance

AWG

(No./mm)

DIA.

(mm)

(No.)

Thickness

(mm)

O.D.

(mm)

Material

Thickness

(mm)

O.D.

(mm)

Ω/KM

(At 20ºC)

26

7/0.16

0.48

2

0.25

1.0

Al-mylar

0.76

3.7±0.10

150

3

0.25

1.0

Al-mylar

0.76

3.9±0.10

4

0.25

1.0

Al-mylar

0.76

4.2±0.10

24

11/0.16

0.62

2

0.26

1.2

Al-mylar

0.76

4.0±0.10



 94.2







94.2

3

0.26

1.2

Al-mylar

0.76

4.1±0.10

4

0.26

1.2

Al-mylar

0.76

4.2±0.10

22

17/0.16

0.76

2

0.27

1.3

Al-mylar

0.76

4.3±0.10

 59.4

3

0.27

1.3

Al-mylar

0.76

4.5±0.10

4

0.27

1.3

Al-mylar

0.76

4.9±0.10

20

21/0.18

0.94

2

0.28

1.5

Al-mylar

0.76

4.7±0.10



 37.4





3

0.28

1.5

Al-mylar

0.76

5.0±0.10

4

0.28

1.5

Al-mylar

0.76

5.4±0.10


Application
Used for internal wiring of

household ovens,
appliances,
lighting fixtures
and electronic equipment

as high-temperature lead wire.

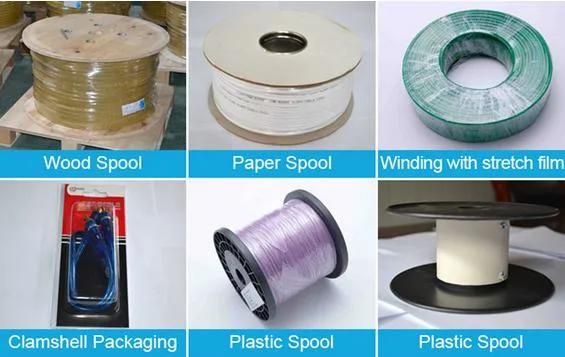

3. Packing Methods

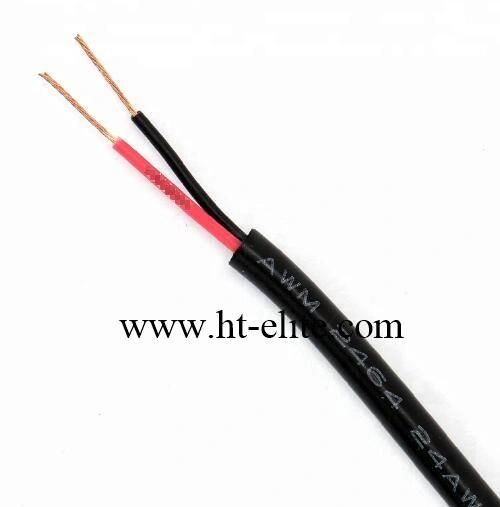

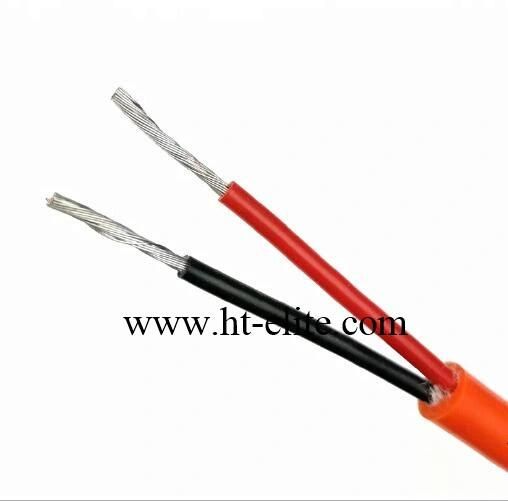

5. Photos for Reference
