FTP CAT6 LAN Cable LSZH Fluke 23AWG Bare Copper Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Model Number：FTP Cat6e
  • Number of Conductors：8
  • Inner Conductor：23AWG Bc,CCA
  • Drain Wire：0.4mm Tinned Copper
  • Shield：with Aluminium Foil
  • Nom. Thick：0.6mm
  • Export Length：100m,Roll, 200m,Roll, 305m,Roll
  • Pairs：4 Pairs
  • Sheath：PVC,LSZH,PE
  • Color：Gray, White, Black
  • O.D：7.40mm
  • Transport Package：Pull out Box, Carton Box, Pallet
  • Specification：0.56cu, 1.05HDPE, 7.3PVC, LSZH, PE
  • Trademark：Risun
  • Origin：Zhejiang, China
  • HS Code：8544491100
  • Production Capacity：30000boxes,Month

Description

Attenuation      @68°F(20ºC)   Frequency (MHz)RL(≥dB)Attenuation (≤dB/100m)Next  (≥dB/100m)Psnext (≥dB/100m)Elfext  (≥dB/100m)Pselfext (≥dB/100m)1201.974.372.367.864.84233.765.363.355.857.710255.959.357.347.844.816257.556.354.343.740.720258.454.352.841.838.731.2523.610.651.949.937.934.962.521.515.447.445.431.928.810020.119.844.342.327.824.815518.825.141.139.423.920.9200182939.837.821.818.725017.332.838.336.319.816.835016.339.836.134.116.913.940015.94335.333.715.712.745015.546.334.532.514.711.750015.248.933.831.813.810.855014.951.833.231.212.99.9

Application & Certificates:

FTP CAT6 LAN Cable LSZH Fluke 23AWG Bare Copper Cable



FTP CAT6 LAN Cable LSZH Fluke 23AWG Bare Copper Cable
Company Introduction
FTP CAT6 LAN Cable LSZH Fluke 23AWG Bare Copper Cable
FTP CAT6 LAN Cable LSZH Fluke 23AWG Bare Copper CableProduction line:
FTP CAT6 LAN Cable LSZH Fluke 23AWG Bare Copper Cable

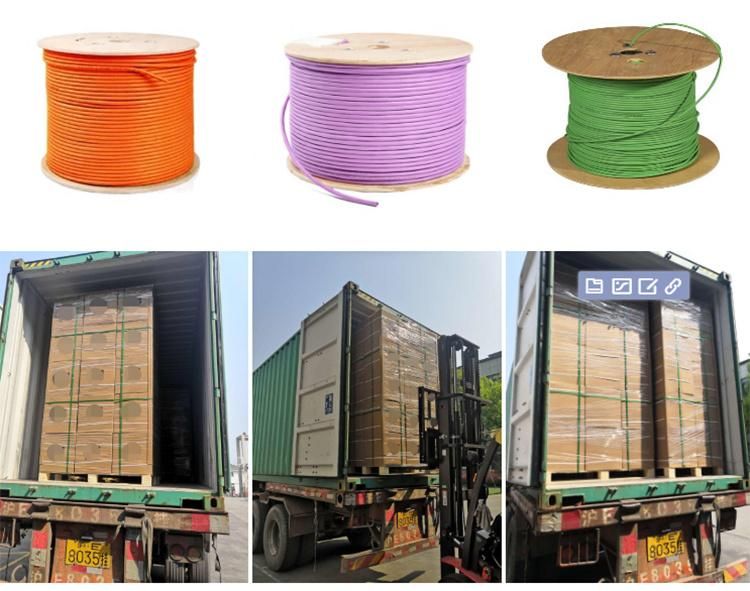

Packing and Shipping:
FTP CAT6 LAN Cable LSZH Fluke 23AWG Bare Copper Cable

FAQ

Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?

A: We are factory.


Q2. HOW LONG IS YOUR DELIVERY TIME?

A:Generally it is  5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.


Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?

A: Normally, 10kms per one specification and one color


Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.


Q5. HOW TO PROCEED AN ORDER FOR CABLES?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.


Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.

Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment .
