Corrugated Steel Cable Spool with Light Weight
NINGBO ONEREEL MACHINE CO., LTD.- Type:Steel Cable Drum
- Certification:RoHS, CCC
- Customized:Customized
- Condition:New
- Feature:Moistureproof
- Characteristic:Can Be Knocked Down
Base Info
- Model NO.:PN800-5000
- Transport Package:Industry Packing
- Specification:GB4004-83, JB,T7600.3-94 and DlN46395
- Trademark:ONEREEL
- Origin:China
- HS Code:7326909000
- Production Capacity:300PCS,Week
Description
Basic Info.
Model NO. PN800-5000 Transport Package Industry Packing Specification GB4004-83, JB/T7600.3-94 and DlN46395 Trademark ONEREEL Origin China HS Code 7326909000 Production Capacity 300PCS/WeekProduct Description

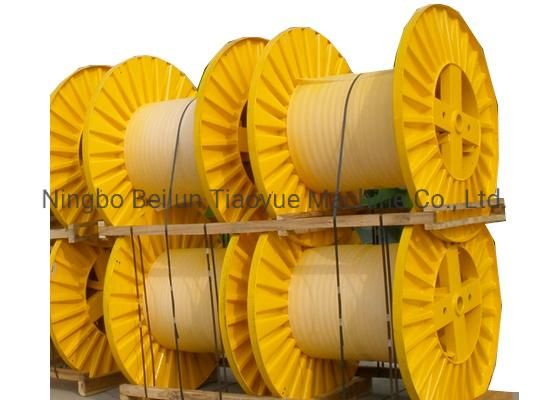

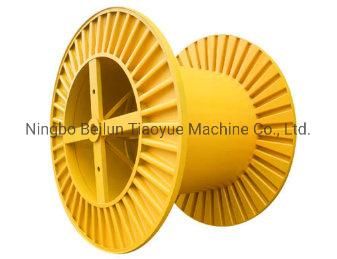

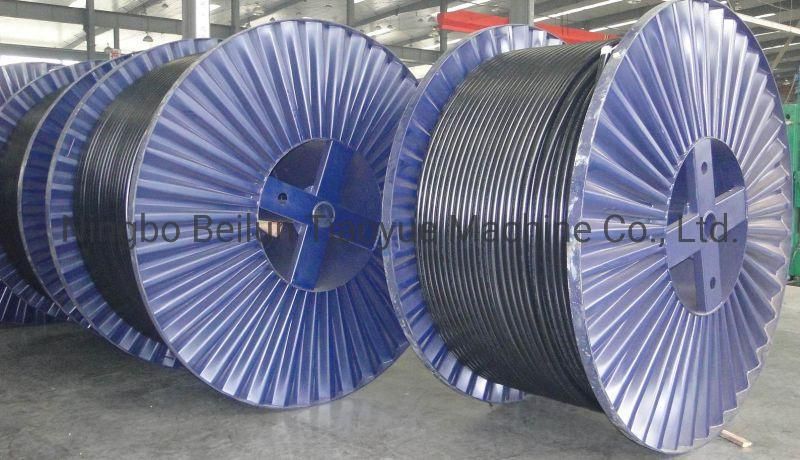

Corrugated Steel Cable Spool with Light Weight
The product is manufactured in accordance with GB4004-83, JB/T7600.3-94 and DlN46395 standards. Its common carbon steel Q235 thin steel plate punched into corrugated type serves as the lateral plate; And its mandrel and major body are supported by four-groove reinforcing steel bars. The product has the characteristics of not only strengthening the strength of bobbin, but also having light weight of bobbin, which can be used for buncher, stranding machine, extruder, cabling machine and armouring machine.
Serial Number | Specification Model | Lateral Plate Diameter D1 | Major Diameter D2 | Axle Hole Diameter D4 | Carrying Hole Diameter D5 | Center Distance E of Axle Hole and Carrying Hole | External Width L1 | Internal Width L2 |
1 | 800 | 800 | 400 | 80 | 40 | 160 | 600 | 500 |
2 | 1000 | 1000 | 500 | 80 | 40 | 160 | 750 | 630 |
3 | 1120 | 1120 | 560 | 80 | 40 | 160 | 850 | 710 |
4 | 1250 | 1250 | 630 | 80 | 40 | 160 | 950 | 800 |
5 | 1400 | 1400 | 710 | 80 | 65 | 300 | 1060 | 900 |
6 | 1600 | 1600 | 800 | 80 | 65 | 300 | 1180 | 1000 |
7 | 1800 | 1800 | 1000 | 100 | 65 | 300 | 1320 | 1120 |
8 | 2000 | 2000 | 1120 | 1235 | 65 | 300 | 1500 | 1250 |
9 | 2240 | 2240 | 1250 | 125 | 65 | 300 | 1700 | 1400 |
10 | 2500 | 2500 | 1500 | 125 | 65 | 300 | 1900 | 1600 |
11 | 2800 | 2800 | 1800 | 140 | 65 | 300 | 2120 | 1800 |
12 | 3150 | 3150 | 2000 | 160 | 65 | 500 | 2300 | 2000 |
