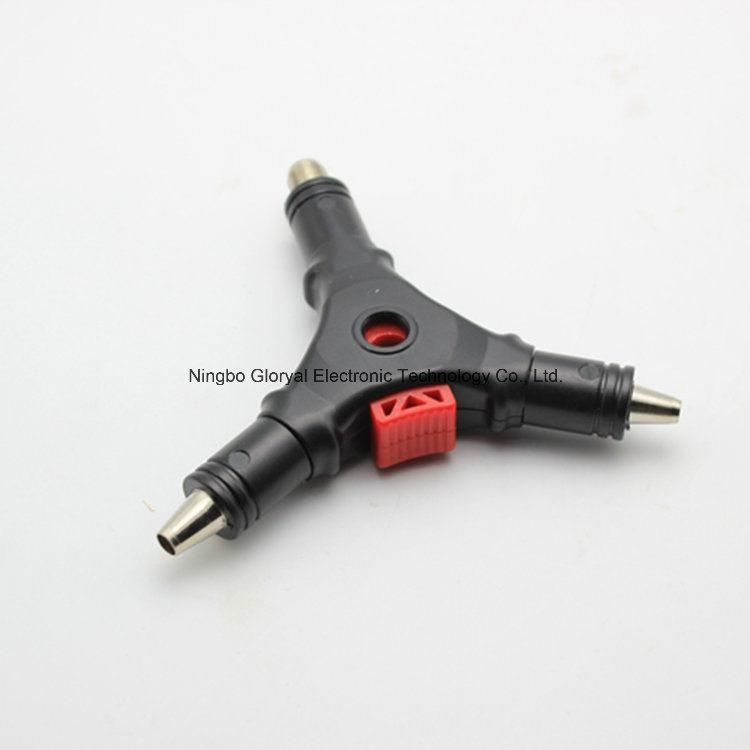

• Model NO.：GL-224S
• Compressed Distance：6.2~9.3mm
• Material：Carbon Steel
• Color：Black
• Weigh：100g
• Applicable Scope：Rg59 4c,RG6 ,Wire Stripping
• Transport Package：White Box, Color Box, Blister Package Optional
• Trademark：OEM
• Origin：China
• HS Code：8205590000
• Production Capacity：150000 Piece,Pieces , Week

Basic Info.

Model NO. GL-224S Compressed Distance 6.2~9.3mm Material Carbon Steel Color Black Weigh 100g Applicable Scope Rg59 4c/RG6 /Wire Stripping Transport Package White Box, Color Box, Blister Package Optional Trademark OEM Origin China HS Code 8205590000 Production Capacity 150000 Piece/Pieces / Week

Product Description

INSTRUCTIONS
STRIPPING SIZES:
The stripping length is preset to 6.5 mm.Coaxial cable sizes RG59,RG6.
STRIPPING CABLE:
Push the button of the stripper to open stripping hole.Insert the coaxial cable to the hole you need inthe direction as shown on the stripper.
Release the pushed button.Rotate the stripper 3-5 times up the cable's insulation is cut.
Push the stripper's button and take out the cable.
Remove the inner insulation and jacket.

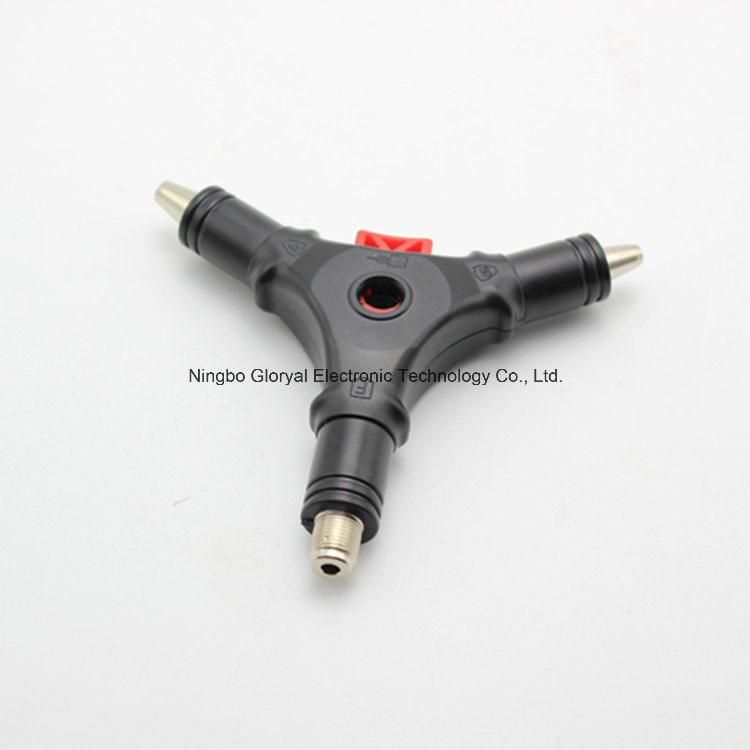

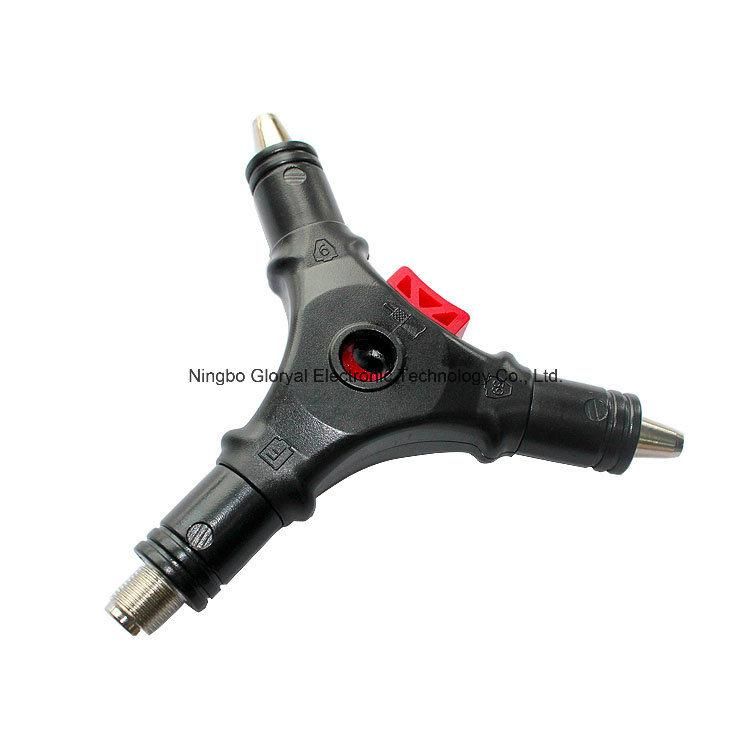

Position 59&6
Use the conic end for flaring the braid of RG59&RG6 coaxial cable.One end to enlarge space between shield and insulation for RG59,another end for RG6.
Position F
Simply lock an CATV "F"connector into stripped coaxial cable end.The end lock F connector into tool scoket and twist it onto stripped cable end.
