600V 150c Temperature Multi Core FEP Insulation Cable
Yangzhou Fongming Cable Factory- Type：Insulated
- Conductor Type：Stranded
- Application：Heating
- Conductor Material：Tinned Copper
- Sheath Material：FEP
- Insulation Material：FEP
Base Info
- Model NO.：UL20712
- Material Shape：Round Wire
- Range of Application：Instrument
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Fongming
- Name：UL20712
- MOQ：2000meters
- Transport Package：Cartons and Pallet
- Specification：AS CUSTOMER REQUIREMENT
- Trademark：FONGMING
- Origin：Yangzhou China
- HS Code：8544492100
- Production Capacity：100000000meters Per Month
Description
Basic Info.
Model NO. UL20712 Material Shape Round Wire Range of Application Instrument Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Fongming Name UL20712 MOQ 2000meters Transport Package Cartons and Pallet Specification AS CUSTOMER REQUIREMENT Trademark FONGMING Origin Yangzhou China HS Code 8544492100 Production Capacity 100000000meters Per MonthProduct Description
UL20712 Multi FEP CableDescription
Name: Multi FEP Wire
Model:AWM 20712
Size:2*18~7*14AWG
Feature
Rated Voltage:600V
Rated Temperature:150ºC

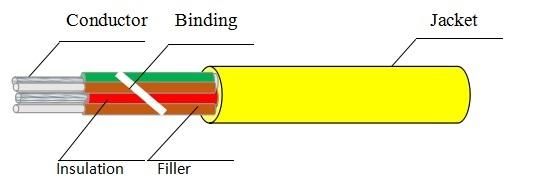

Structure
Conductor: Tinned Copper,Nickel Plated Copper
Insulation:FEP
Filler:Fiberglass With FEP insulated
Binding:Polyester Yarn
Shield:Optional
Jacket:FEP
| Size (AWG) | Conductor Structure (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Cabling Diameter | Jacket Thickness (mm) | O.D. (mm) |
| 2*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 3.40 | 0.31 | 4.0±0.2 |
| 3*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 3.70 | 0.31 | 4.3±0.2 |
| 4*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.10 | 0.31 | 4.7±0.3 |
| 5*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.60 | 0.31 | 5.2±0.3 |
| 6*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.80 | 0.31 | 5.5±0.3 |
| 7*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 5.10 | 0.31 | 5.7±0.3 |
| 2*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.00 | 0.31 | 4.6±0.2 |
| 3*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.30 | 0.31 | 4.9±0.2 |
| 4*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.80 | 0.31 | 5.4±0.3 |
| 5*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 5.40 | 0.31 | 6.0±0.3 |
| 6*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 5.60 | 0.31 | 6.2±0.3 |
| 7*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 6.00 | 0.31 | 6.6±0.3 |
| 2*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 4.80 | 0.31 | 5.4±0.3 |
| 3*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 5.20 | 0.31 | 5.7±0.3 |
| 4*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 5.80 | 0.31 | 6.4±0.3 |
| 5*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 6.50 | 0.31 | 7.1±0.4 |
| 6*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 6.70 | 0.31 | 7.3±0.4 |
| 7*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 7.20 | 0.31 | 7.8±0.4 |
Certificates
Company Information
Transport&Shipping
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
