Al Foil Shielded 7 Core Cable Awm Style 2517
B&T (Zhangzhou) Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Electric Wire
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：UL2517
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Bort
- Color：White,as Request
- Factory：ISO 9001
- Standard：Reach,RoHS
- OEM/ODM：Accepted
- Delivery：7-12days
- Packing：as Request
- Sample Time：3-5days
- Sample：Supplied
- Transport Package：Rolls
- Specification：30-18AWG
- Trademark：BORT
- Origin：China
- HS Code：85444929
- Production Capacity：300, 000km, Year
Description
Basic Info.
Model NO. UL2517 Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Bort Color White/as Request Factory ISO 9001 Standard Reach/RoHS OEM/ODM Accepted Delivery 7-12days Packing as Request Sample Time 3-5days Sample Supplied Transport Package Rolls Specification 30-18AWG Trademark BORT Origin China HS Code 85444929 Production Capacity 300, 000km/ YearProduct Description

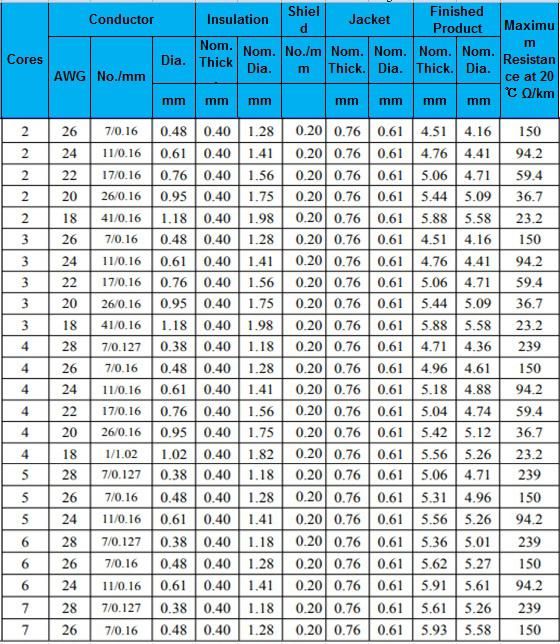

AL foil shielded 7 core cable awm style 2517
PRODUCT DESCRIPTION:
★Rated temperature:105ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★Cores cabled under AL-MYLAR shield
★Tinned or bare stranded copper drain wire
★Tinned or bare stranded copper wire overall more
than 80% coverage braided shield
★PVC jacket
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★External interconnection of electronic equipment or internal wiring of electronic equipment or appliances. Tags may also indicate the following: "600 Volts peak for Electronic Use Only".
