Category 6 Pure Copper 23AWG Roll 305m Ethernet Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable, Network Cable Ethernet Cable
- Conductor Material：Copper
- Cover Material：PVC,PE,LSZH
- Type：Cat 6
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：Ethernet Cable
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CCC, ETL,CPR
- Brand：Risun or OEM
- Insulation：HDPE
- Conductor：23 AWG
- Transport Package：305m,Pull Box
- Origin：Hangzhou, Zhejiang, China
- HS Code：8544491100
- Production Capacity：20000 Boxes , Month
Description
Basic Info.
Model NO. Ethernet Cable Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, ETL,CPR Brand Risun or OEM Insulation HDPE Conductor 23 AWG Transport Package 305m/Pull Box Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / MonthProduct Description
construction:
| conductor | 23awg (solid or strand) cu |
| insulation | HDPE 1.04±0.02mm |
| sheath | 6.2±0.1mm pvc (fr,rohs,uv)/ lsoh / pe |
| cores/pairs | 8/4 |
mechanical properties:
| elongation | min. 300% |
| temperature range | -20 up to +75° c |
| tensile strength | min 1.68kg/mm² |
Test Report

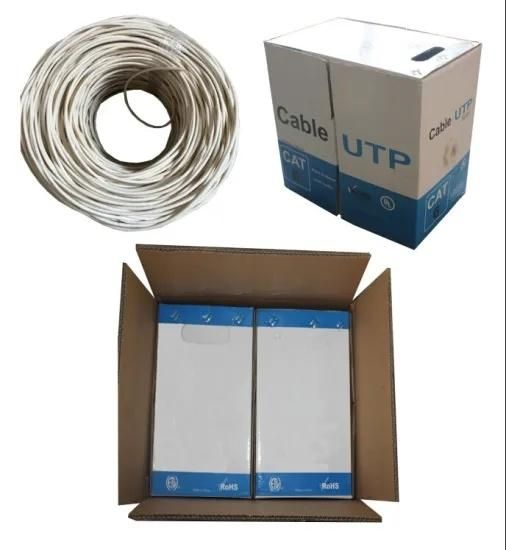

Packing
1) packing lengths: 305m/roll, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.

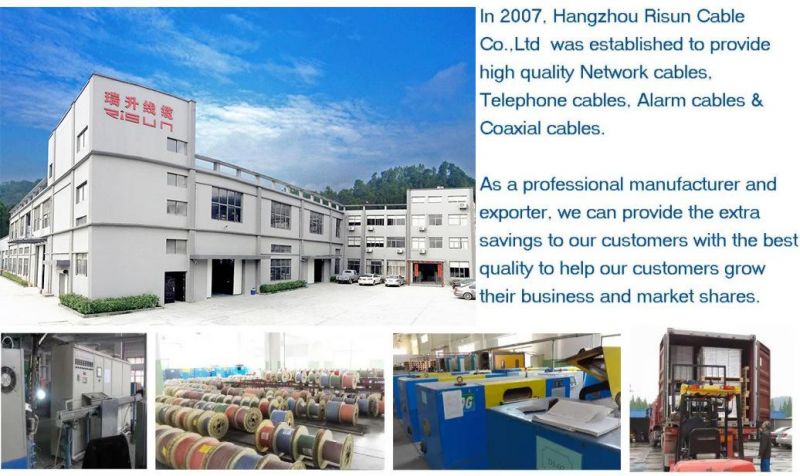

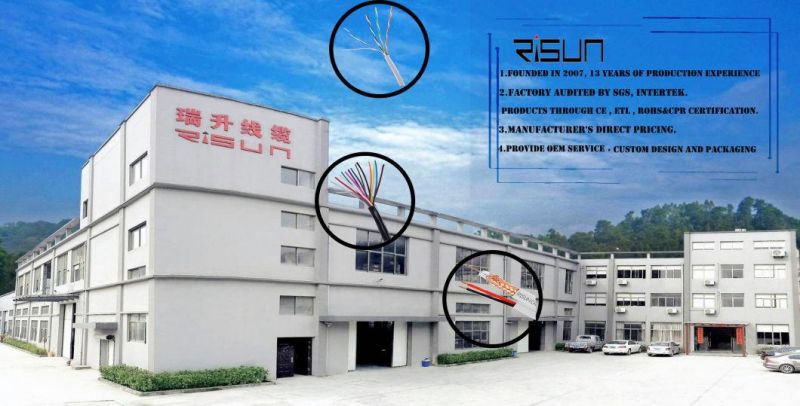

Company Profile

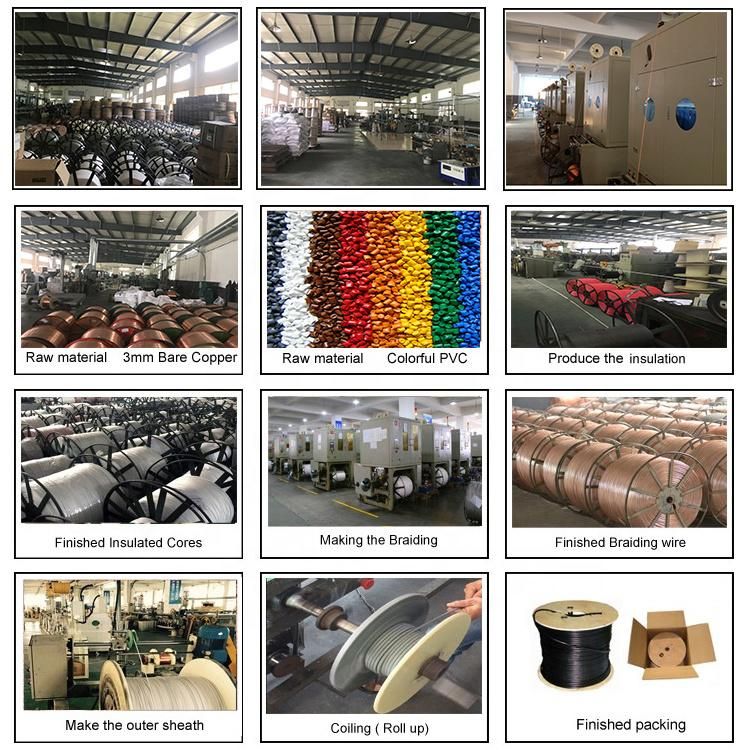

process of production:
