• Model NO.：OPGW
• Loose Tube：Stainless Steel

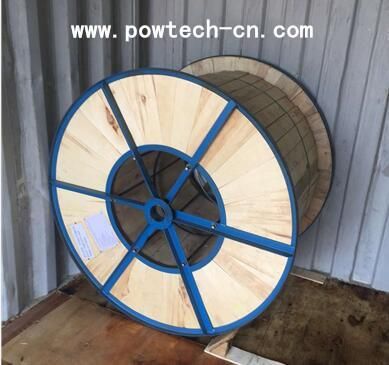

• Transport Package：Iron Wooden Drum
• Specification：IEEE -1138, IEC60794-4-1, IEC60793, ITU-T G. 652
• Trademark：Powtech
• Origin：Qingdao, China
• HS Code：8547
• Production Capacity：100km,Month

Basic Info.

Model NO. OPGW Loose Tube Stainless Steel Transport Package Iron Wooden Drum Specification IEEE -1138, IEC60794-4-1, IEC60793, ITU-T G. 652 Trademark Powtech Origin Qingdao, China HS Code 8547 Production Capacity 100km/Month

Product Description

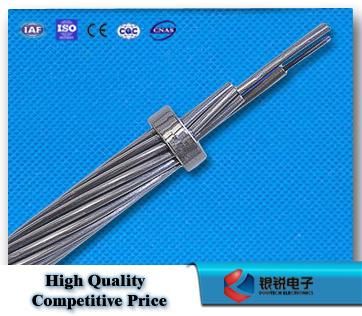

OPGW Cable With IEEE1138 Standard







OPGW cable features:
1-Laser welded stainless steel tubes provide mechanical and thermal protection for optical fibers.
2-Light weight and small diameter
3-Good resistance to moisture and hydrogen ingress
4-Fiber counts up to 96fibers

OPGW cable standard compliance
IEEE -1138, IEC60794-4-1, IEC60793, ITU-T G. 652, ITU-T G. 655, IEC60794-1, DL/T 788-2001, YD/T 980-2002
OPGW cable technical parameter:
According fiber cores, weather condition, RTS, short circuit current capacity, DC resistance, line voltage and etc.

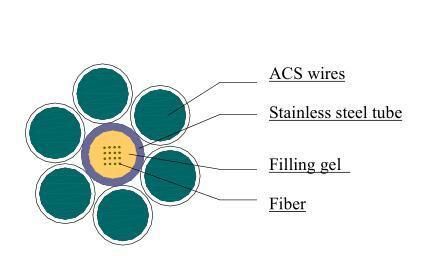

OPGW cable Mechical characteristics:
Over all diameter (mm): 9~20mm
Fiber count: 12~96fibers
Fiber optical tube: Laser welded stainless steel
Armore type: Aluminum-clad wire
Unit weight (kg/km): 250~500kg/km
Short circuit current capacity: Up to 50kA2. T
Rated tensile strength (RTS): Up to 90kN
Related Product:

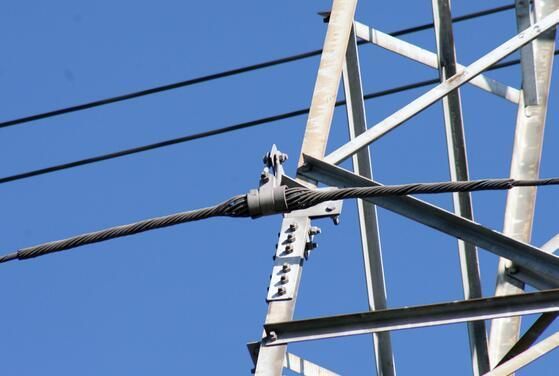

Installation Guide:
