• Model NO.：Stranded 4c Security Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CE, RoHS
• Model：VV
• Brand：Hanxin
• Transport Package：100m
• Specification：25X25X9CM
• Trademark：hanli
• Origin：Zhejiang
• Production Capacity：500000000,Year

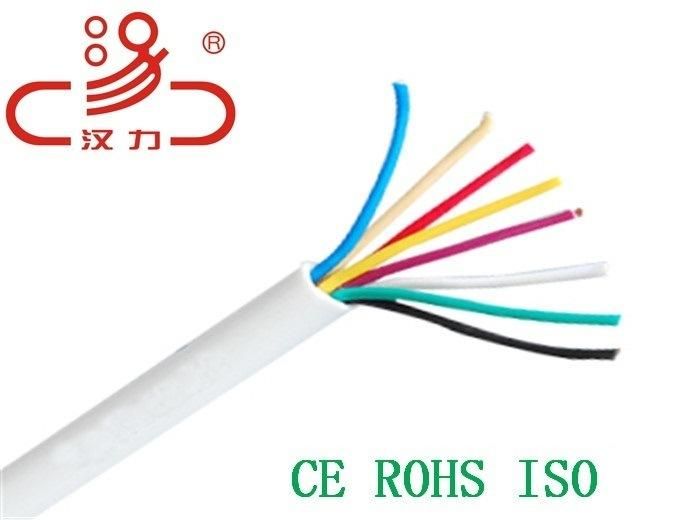

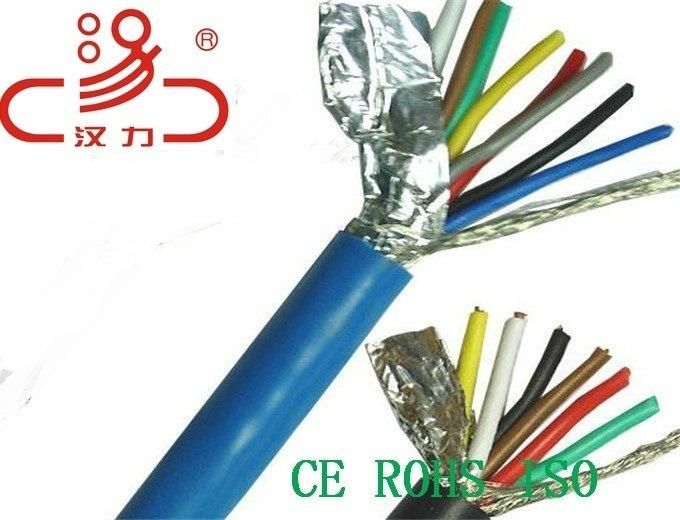

Security Cable

Security Cable: Security 4C 22AWG

Application: Power limited circuit, remote control, signaling, security systems, communications, intercom/P.A. systems, sound/audio, and nurse call. Conductor Material: Bare copper wire strands  Insulation Material: PE/PVC  Laying-up: Units Drain Wire: Solid bare copper Shield: Overall Al/Polyester foil shield Nylon Rip Cord: 150D Sheath Color: As your request  Shape: Circular in cross-section Voltage Rating: 300/500 voltage Temperature Rating: 75ºC Security Cable: Security 4C 22AWG Product Name/Code :SECURITY 4C 22AWG Construction 4 Core Bare copper wire strands AWG 22 Cross section of Cons. Diameter (mm2) 0.34 Stranding(wire No./ wire dia.mm) 7/0.25mm Insulation PE/PVC Thickness (mm) 0.21 Insulation Diameter(mm) 1.00 Insulation Color According to customer Nylon rip cord 150D Construction 24AWG Shield (Y/N) Overall Al/Polyester foil shield Coverage > 25% Sheathing PVC/PE/LSF Thickness(mm) 0.7 Cable Dia.(mm) 4.2 Fire Performance Fire Performance  Flame Propagation Test to IEC 60332 Part 1 and Part 3  Determination of the amount Halogen Acid Gas to IEC 60754 Part 1  Smoke Density Test to IEC 61034  Oxygen Index Test to BS 2863 or ISO 4589-2  Temperatre Index Test to BS 2782 or ISO 4589-3  Fire Resistant Test to IEC 60331-24

Our Services
Welcome to visit our factory and  get our samples.
 Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel  free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.19 years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
