• Model NO.：ABC-D cable
• Wire Core Material：Aluminum
• Certification：ISO, CCC, SGS
• Model：ABC-D Cable
• Brand：Hongda
• Standard：IEC, NFC33 209, VDE 0276
• Insulation：XLPE or Polyethylene
• Operating Voltage：1kv
• Operating Temperature：Max 65c
• Transport Package：Wooden Drum or as Customer Requirement
• Specification：25mm2 to 120mm2
• Trademark：Hongda Cable
• Origin：China
• HS Code：8544492100
• Production Capacity：1200km,Month

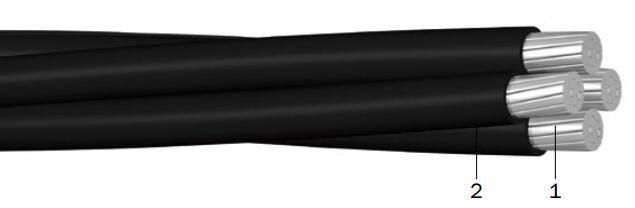

1. ConductorAluminium conductor with increased breaking load, round stranded compressed (RM)2. InsulationCore insulation (PE (polyethylene) black, UV-resistant); 2 or 4 cores of equal cross section are stranded together in left hand lay, additionaly 1 core of reduced cross section can be costranded

• core : circular stranded in AGS aluminum alloy, cross-section area from 16 to 120 mm²
• 7 wires for cross-section up to 50mm²
• 19 wires for cross-section above 70mm²
• Insulation : Black PE
• Mechanical resistance: more than 160N/mm²
• Temperature: -15C - +65C

1.3 ELECTRICAL CHARACTERISTICS

• Rated voltage : 0.6/1 kV
• Test voltage : 4 kV AC
• Resistance to voltage surges : 1.2/50µs with a positive or negative polarity and a peak value of 20 kV.

1.4 Classification:
Low Voltage Cable Aerial Bundled Conductor, Twisted Cable
*Further information about rating factor for certain cable arrangement can be found on supplementary technical information.
 * Continuous current capacity estimatet value in air 30ºC
