JX thermocouble cable with PVC insulation
Shanghai Tankii Alloy Material Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Thermocouple sensor
- Conductor Material：Iron-CuNi
- Sheath Material：Fiberglass
- Insulation Material：PVC
Base Info
- Model NO.：JX
- Material Shape：Round Wire
- Range of Application：Thermocouple sensor
- Certification：ISO9001, RoHS
- Brand：Tankii
- Section area：1.0mm2
- Grade：IEC 60584-3 first class
- Standard：IEC
- Surface：Insulated with PVC
- Jacket color：Blue color
- Coil length：100M-200M
- cable shape：round,flat
- Temperature：-20~+100 degree
- Cable Application：J type thermocouple sensor
- Transport Package：Spool, Carton, Wooden Case
- Specification：Customized
- Trademark：TANKII
- Origin：China
- HS Code：75052200
- Production Capacity：300 Tons,Year
Description
Thermocouple Code
Comp. Type
Comp. Wire Name
Positive
Negative
Name
Code
Name
Code
S
SC
copper-constantan 0.6
copper
SPC
constantan 0.6
SNC
R
RC
copper-constantan 0.6
copper
RPC
constantan 0.6
RNC
K
KCA
Iron-constantan22
Iron
KPCA
constantan22
KNCA
K
KCB
copper-constantan 40
copper
KPCB
constantan 40
KNCB
K
KX
Chromel10-NiSi3
Chromel10
KPX
NiSi3
KNX
N
NC
Iron-constantan 18
Iron
NPC
constantan 18
NNC
N
NX
NiCr14Si-NiSi4Mg
NiCr14Si
NPX
NiSi4Mg
NNX
E
EX
NiCr10-Constantan45
NiCr10
EPX
Constantan45
ENX
J
JX
Iron-constantan 45
Iron
JPX
constantan 45
JNX
T
TX
copper-constantan 45
copper
TPX
constantan 45
TNX

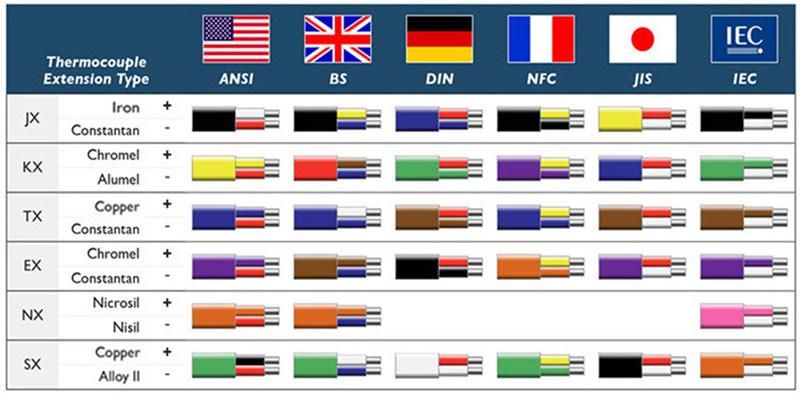

Insulation and jacket color code can be custom made as per different country.
