Cable & Wire

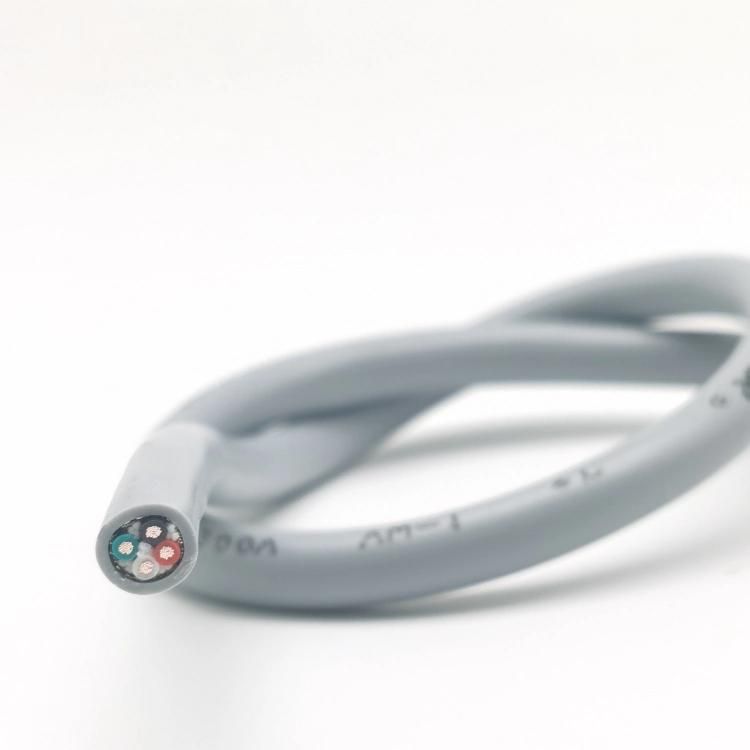

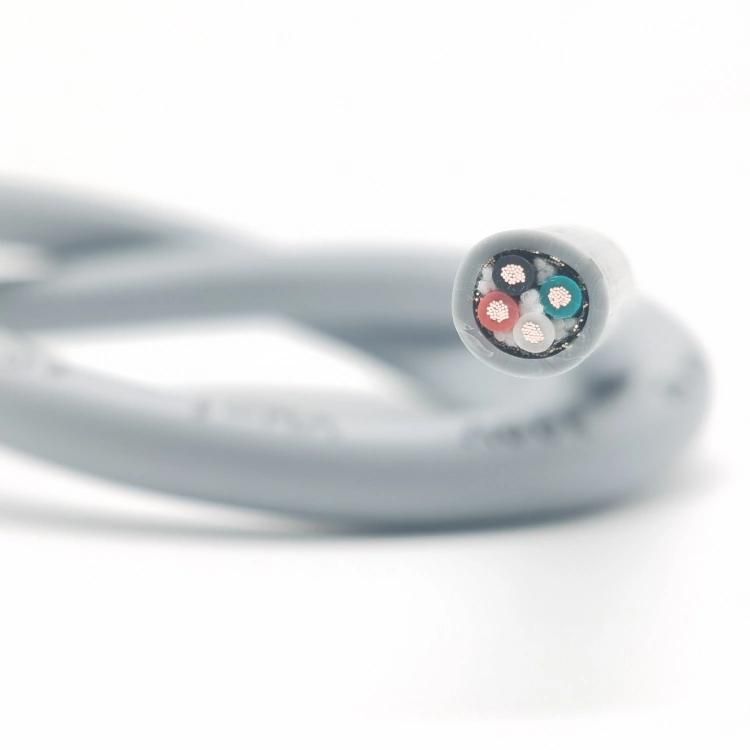

Yslcy-Jz Cable 300/500V Multicore Shield PVC Control Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type:Insulated
  • Conductor Type:Stranded
  • Conductor Material:Copper
  • Sheath Material:PVC
  • Insulation Material:PVC
  • Material Shape:Round Wire

Base Info

  • Model NO.:YSLCY-JZ Cable
  • Range of Application:Electrical Facilities
  • Certification:ISO9001, CE, UL, RoHS
  • Brand:Aein
  • Transport Package:Optional
  • Specification:Multicore
  • Trademark:AEIN
  • Origin:Shanghai
  • HS Code:8544492100

Description

ItemYSLCY-JZ Cable 300/500V Multicore Shield PVC Control Cable ConductorCopper wire bareInsulationSpecial PVC Outer sheathSpecial PVCCore NumberMulticores (As client's requirement)Nominal VoltageUo/U 300/500 VTest Voltage2000 VTemperatureFlexible installations: -5ºC ~ + 70 ºC
Fixed installations: -15ºC ~ + 70 ºC
ColorOptionalApplicationThe cable is suitable for dry or humid indoor installations, especially in industrial environments. As a control and power connection line, it is often used in machine tools, complete sets of equipment, power stations,and electrical installations. Special flexible design, it is also suitable for installation occasions with free movement and non-mandatory continuous reciprocating motion. Anti-oxidation tinned copper wire braided layer, single sheath design, reduces the installation space of the cable, and has excellent resistance to electric field interference. Special PVC material with excellent acid, alkali and oil resistance.
