K Type Thermocouple Wire with 700c Fibergalss Insulated
Huona (Shanghai) New Material Co., Ltd.- Type：Insulated
- Conductor Type：7*0.2mm
- Application：Heating, -
- Conductor Material：Kc
- Sheath Material：Fiberglass
- Insulation Material：Fiberglass
Base Info
- Model NO.：KX
- Material Shape：Round Wire
- Range of Application：Compensation
- Certification：ISO9001, CE, RoHS
- Brand：Huona
- Section Area：0.5mm2, 0.75mm2, 1.0mm2
- Grade：I, II, III
- Usage：Thermocouple Sensors
- Types：K,T,J,N,B,S,R
- Shape：Single, Pair, Stranded
- Insulation：Fiberglass, PVC, PTFE, Silicon Rubber
- Temperature Range：-60-1100
- Shield：Avaiable
- Colour：IEC, ANSI, BS
- Transport Package：on Reel, Carton Box
- Specification：According to clients requirements
- Trademark：Huona
- Origin：Shanghai, China
- HS Code：7505220000
- Production Capacity：1000 Tons, Year
Description
Basic Info.
Model NO. KX Material Shape Round Wire Range of Application Compensation Certification ISO9001, CE, RoHS Brand Huona Section Area 0.5mm2, 0.75mm2, 1.0mm2 Grade I, II, III Usage Thermocouple Sensors Types K,T,J,N,B,S,R Shape Single, Pair, Stranded Insulation Fiberglass, PVC, PTFE, Silicon Rubber Temperature Range -60-1100 Shield Avaiable Colour IEC, ANSI, BS Transport Package on Reel, Carton Box Specification According to clients requirements Trademark Huona Origin Shanghai, China HS Code 7505220000 Production Capacity 1000 Tons/ YearProduct Description

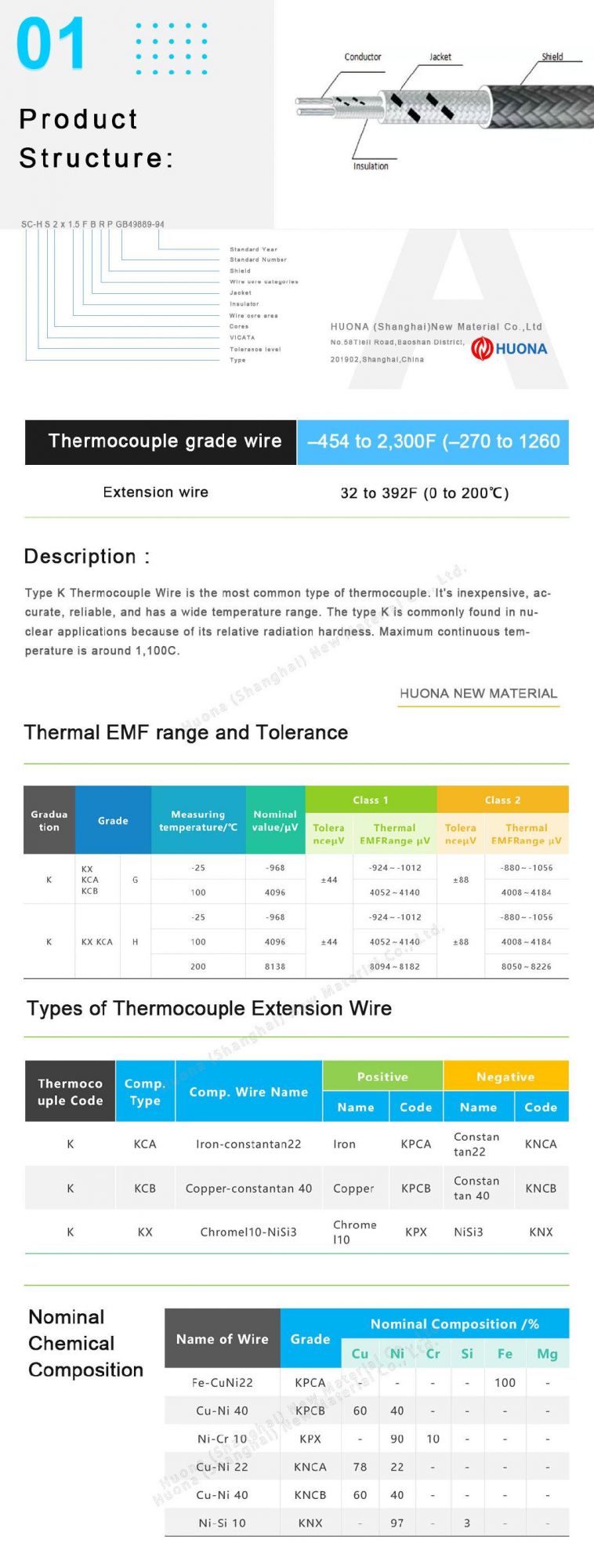

24 AWG Class I /II K Type Thermocouple Wire With 700C Fibergalss insulated
